Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6X30142434PUSHBUTTON. GREEN |
1,187 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Green | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30143213PUSHBUTTON. BLACK |
3,842 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30141521PUSHBUTTON. BLACK |
1,175 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30141507PUSHBUTTON. BLACK |
3,302 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30141506PUSHBUTTON. BLACK |
3,987 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30141520PUSHBUTTON. BLACK |
1,027 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

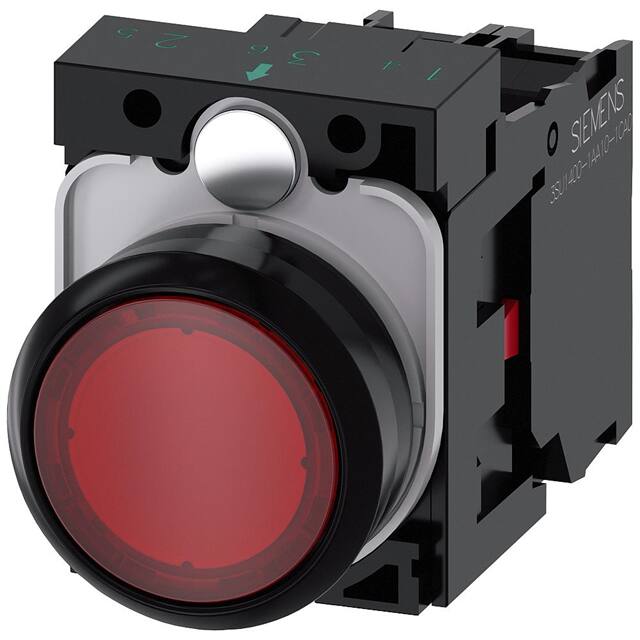

A6X30141981ILLUMINATED PUSHBUTTON. RED |
2,560 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | LED, Red | 110 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

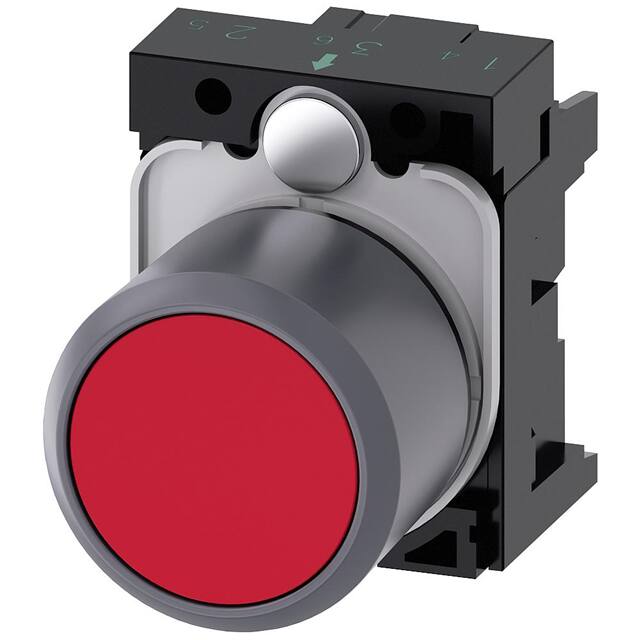

3SU12300EB200AA0PUSHBUTTON, MOM, RED, FLUSH, COM |
3,371 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button | - | Red | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142238ILLUMINATED PUSHBUTTON. WHITE |
3,512 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | LED, White | 230 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30143065ILLUMINATED PUSHBUTTON. BLUE |
3,809 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | LED, Blue | 230 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
