Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6X30144171PUSHBUTTON. RED |
4,490 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142918PUSHBUTTON. RED |
3,720 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30144156PUSHBUTTON. BLACK |
4,132 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142993PUSHBUTTON. BLUE |
4,500 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30143018PUSHBUTTON. WHITE |
1,106 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142885PUSHBUTTON. BLACK |
3,029 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142940PUSHBUTTON. YELLOW |
2,830 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Yellow | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30144192PUSHBUTTON. GREEN |
4,061 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Green | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30143052PUSHBUTTON. CLEAR |
2,818 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Clear | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

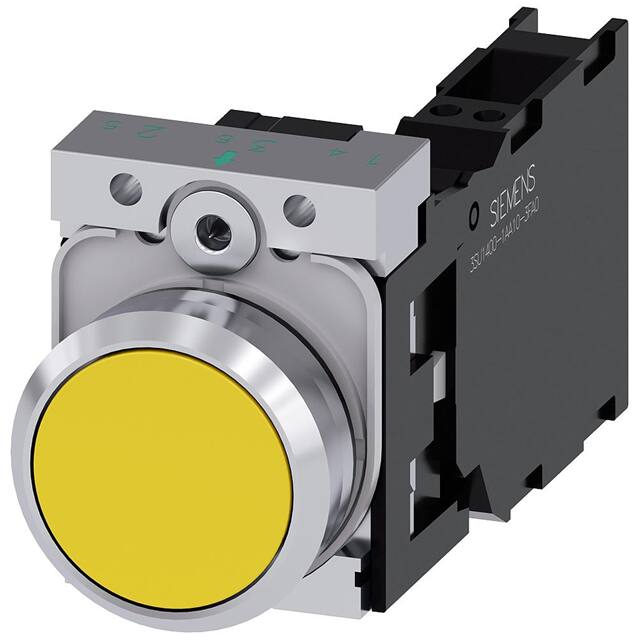

A6X30142952PUSHBUTTON. YELLOW |
1,648 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Yellow | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
