Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6X30142854ILLUMINATED PUSHBUTTON. CLEAR |
3,341 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Clear | LED, White | 110 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142014ILLUMINATED PUSHBUTTON. YELLOW |
4,460 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Yellow | LED, Yellow | 110 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

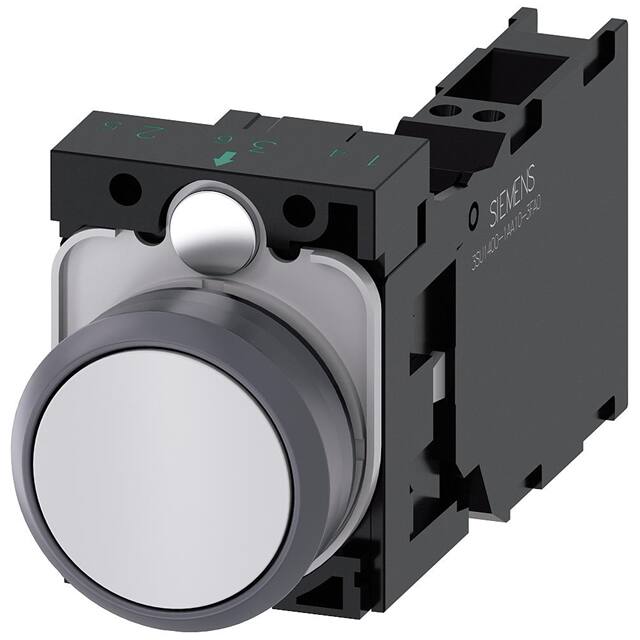

A6X30142470PUSHBUTTON. WHITE |
4,486 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11520AB501BA0ILLUMINATED PUSHBUTTON, MOM, BLU |
2,973 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | LED, Blue | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11520AB001BA0ILLUMINATED PUSHBUTTON, MOM, AMB |
4,406 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Amber | LED, Amber | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11520AB201CA0ILLUMINATED PUSHBUTTON, MOM, RED |
4,114 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | LED, Red | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11520AB301BA0ILLUMINATED PUSHBUTTON, MOM, YEL |
2,353 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Yellow | LED, Yellow | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142231ILLUMINATED PUSHBUTTON. GREEN |
1,229 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Green | LED, Green | 230 VAC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30142856ILLUMINATED PUSHBUTTON. CLEAR |
4,214 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Clear | LED, White | 110 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30141982ILLUMINATED PUSHBUTTON. RED |
4,383 |
|
Datasheet | 3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | LED, Red | 110 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
