Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1241.8449SWITCH PUSHBUTTON SPDT 10A 250V |
4,973 |
|
Datasheet | MSM CS | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 10A (AC) | 250 V | - | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | Ceramic Actuator | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
1241.8484SWITCH PUSHBUTTON SPDT 100MA 30V |
1,173 |
|
Datasheet | MSM CS | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | Ceramic Actuator | Circular - 22.10mm Dia | -25°C ~ 85°C |
|
MSM19-NXCSA10-SNCCWTNF-AIRGB024-Q0000-SMSM SERIES 19MM METAL LINE SWITC |
1,945 |
|
Datasheet | MSM CS | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | Ceramic Actuator | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
3-145-620MSMII-30 SWITCH, MOMENTARY SWITC |
2,651 |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1241.6624.1122000SWITCH PUSHBUTTON SPDT 5A 125V |
2,475 |
|
Datasheet | MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
1241.6624.1124000SWITCH PUSHBUTTON SPDT 5A 125V |
3,882 |
|
Datasheet | MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
3-102-618MSM MECHANICAL METAL LINE SWITCH |
2,873 |
|
Datasheet | MSM | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.10mm Dia | -25°C ~ 85°C |
|

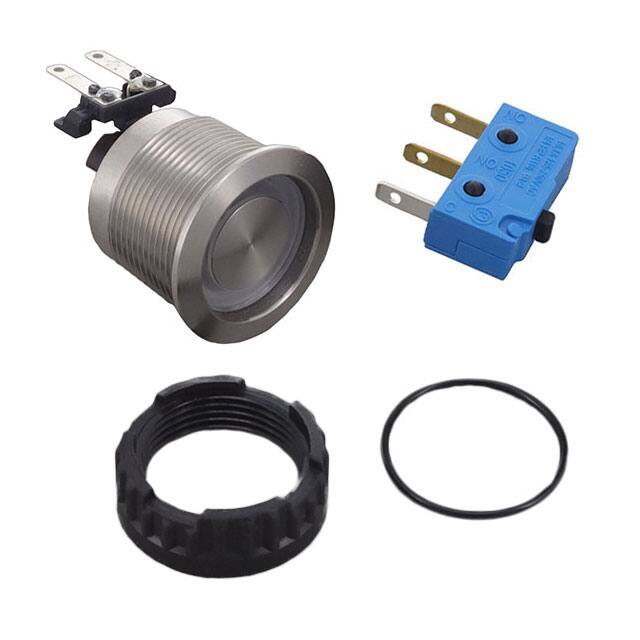

3-102-621MSM MECHANICAL METAL LINE SWITCH |
3,362 |
|
Datasheet | MSM | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.10mm Dia | -25°C ~ 85°C |
|
3-102-623MSM MECHANICAL METAL LINE SWITCH |
3,193 |
|
Datasheet | MSM | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 10A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.10mm Dia | -25°C ~ 85°C |
|

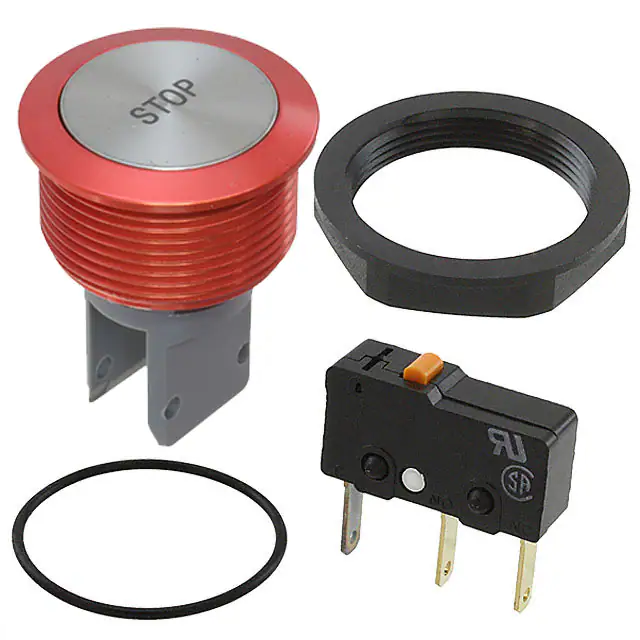

1241.6632.3120057SWITCH PUSHBUTTON SPDT 5A 250V |
4,879 |
|
Datasheet | MSM | Tray | Obsolete | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Red | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.10mm Dia | -25°C ~ 85°C |
