Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0041.0402SWITCH PUSHBUTTON SPDT 2A 125V |
194 |
|
Datasheet | SDK | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 2A (AC/DC) | 125 V | 50 V | Round, Plunger | No Marking | Red | - | - | PC Pin | IP40 | - | - | -40°C ~ 85°C |
|
0041.9147.3317SWITCH PUSH DPST-NO 200MA 60V |
131 |
|
Datasheet | LDT | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-Mom | 200mA (AC/DC) | 60 V | 50 V | Square, Button | No Marking | Red | LED, Red | 1.9 VDC | PC Pin | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 60°C |
|
MCS-16-NO00A12-Z0NCS3NCWF-PI0RG00R-S0000-SMCS 16, METAL SWITCH SHORT STROK |
123 |
|
Datasheet | MCS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.10mm Dia | -20°C ~ 60°C |
|
3-101-015SWITCH PUSHBUTTON SPST 16A 250V |
2,920 |
|
Datasheet | MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Blue | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|
1241.6834.1124000SWITCH PUSHBUTTON DPST 12A 250V |
120 |
|
Datasheet | MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Blue | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|
3-101-031SWITCH PUSHBUTTON DPST 16A 250V |
2,143 |
|
Datasheet | MSM LA CS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|

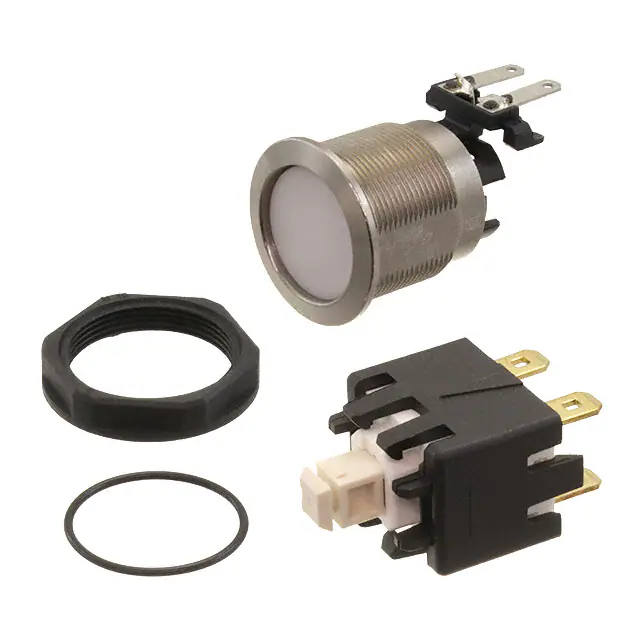

3-101-041SWITCH PUSHBUTTON DPST 16A 250V |
4,085 |
|
Datasheet | MSM LA CS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|
0041.9151.5307SWITCH PUSH SPST-NO 200MA 60V |
197 |
|
Datasheet | LDS | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 200mA (AC/DC) | 60 V | 50 V | Square, Button | No Marking | Green | - | - | PC Pin | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 85°C |
|
|
0041.8843.7107SWITCH PUSHBUTTON SPST-NO |
195 |
|
Datasheet | - | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
0041.9101.72000SWITCH PUSHBUTTON SPST-NO |
200 |
|
Datasheet | - | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
