Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1241.6623.1111000SWITCH PUSHBUTTON SPDT 100MA 30V |
3,576 |
|
Datasheet | MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Silver | LED, Red | 1.9 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
3-126-797MSS 30 SWITCH BZ CONNECTOR |
3,504 |
|
Datasheet | MSS | Box | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 100mA (DC) | - | 60 V | Round, Button, Flush | - | Silver | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 30.00mm Dia | -40°C ~ 85°C |
|
3-126-803MSS 30 SWITCH BZ CONNECTOR |
4,014 |
|
Datasheet | MSS | Box | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 100mA (DC) | - | 60 V | Round, Button, Flush | - | Silver | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 30.00mm Dia | -40°C ~ 85°C |
|
1241.7021.1120000SWITCH PUSHBUTTON SPDT 5A 125V |
1,944 |
|
Datasheet | MSM CS | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | Ceramic Actuator | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
1241.6923.1124000SWITCH PUSHBUTTON DPDT 5A 125V |
1,150 |
|
Datasheet | MSM DP | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 3.7 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
3-136-772SWITCH PUSHBUTTON SPDT 5A 125V |
1,216 |
|
Datasheet | MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button | - | Silver | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 30.00mm Dia | -25°C ~ 85°C |
|
|
3-136-771SWITCH PUSHBUTTON SPDT 5A 125V |
3,611 |
|
Datasheet | MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button | - | Silver | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 30.00mm Dia | -25°C ~ 85°C |
|
|
3-136-773SWITCH PUSHBUTTON SPDT 5A 125V |
1,408 |
|
Datasheet | MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button | - | Silver | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 30.00mm Dia | -25°C ~ 85°C |
|

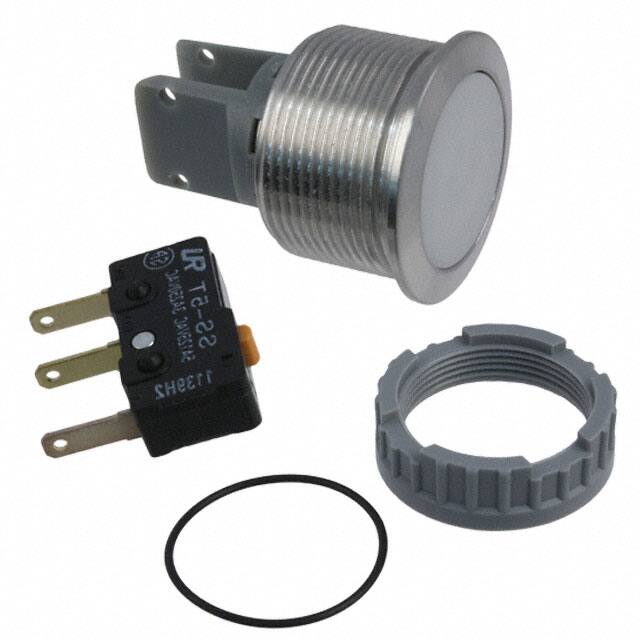

1241.7031.1120000SWITCH PUSHBUTTON SPDT 5A 125V |
3,956 |
|
Datasheet | MSM CS | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | Ceramic Actuator | Circular - 22.10mm Dia | -25°C ~ 85°C |
|
|
1241.6663.1122000SWITCH PUSHBUTTON SPDT 5A 125V |
1,629 |
|
Datasheet | MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 2.1 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 30.10mm Dia | -25°C ~ 85°C |
