Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1241.6823.1112000SWITCH PUSHBUTTON SPST 12A 250V |
1,226 |
|
Datasheet | MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Green | 2.1 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|
3-101-427SWITCH PUSH SPST-NO 100MA 42V |
4,648 |
|
Datasheet | CPS | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Ceramic Actuator, Finger Guide | Circular - 22.10mm Dia | -40°C ~ 60°C |
|
1241.2611SWITCH PUSH SPST-NO 100MA 42V |
3,715 |
|
Datasheet | PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | Circular - 16.20mm Dia | -40°C ~ 85°C |
|

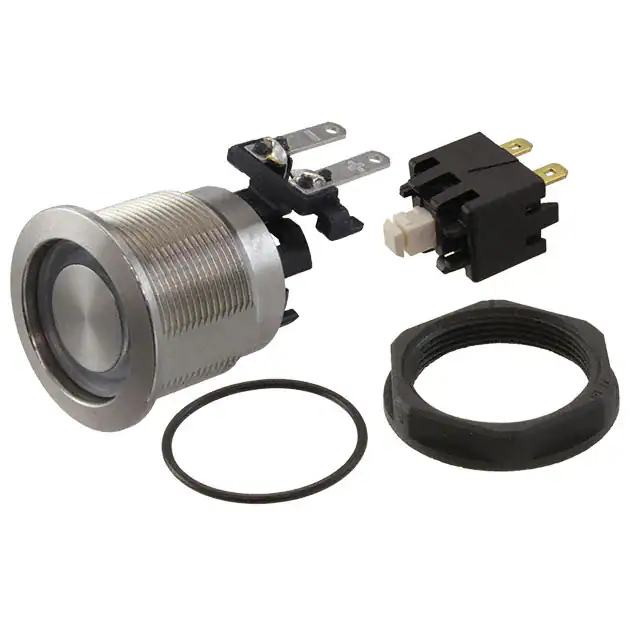

3-100-991SWITCH PUSHBUTTON SPST 16A 250V |
4,213 |
|
Datasheet | MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Green | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|

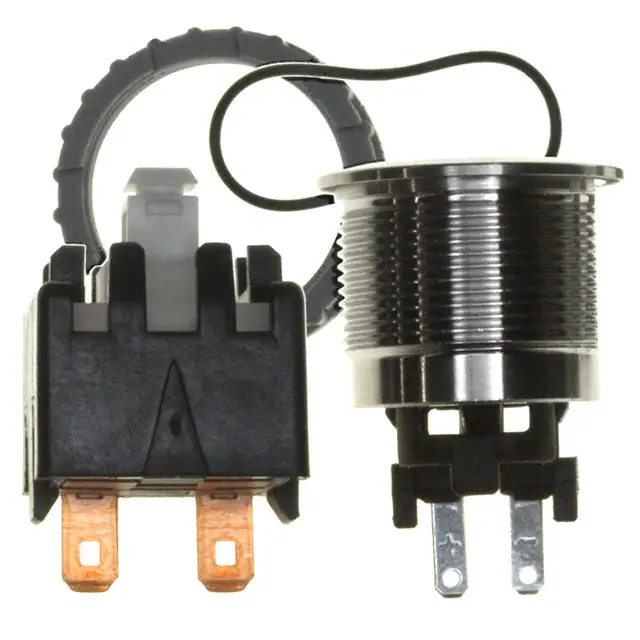

1241.6834.1112000SWITCH PUSHBUTTON SPST 12A 250V |
2,683 |
|
Datasheet | MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Green | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|
1241.6455MCS30 NO 00 A12 RI RGY |
1,037 |
|
Datasheet | MCS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red/Yellow | 5 ~ 28 VDC | Wire Leads | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 30.30mm Dia | -20°C ~ 60°C |
|

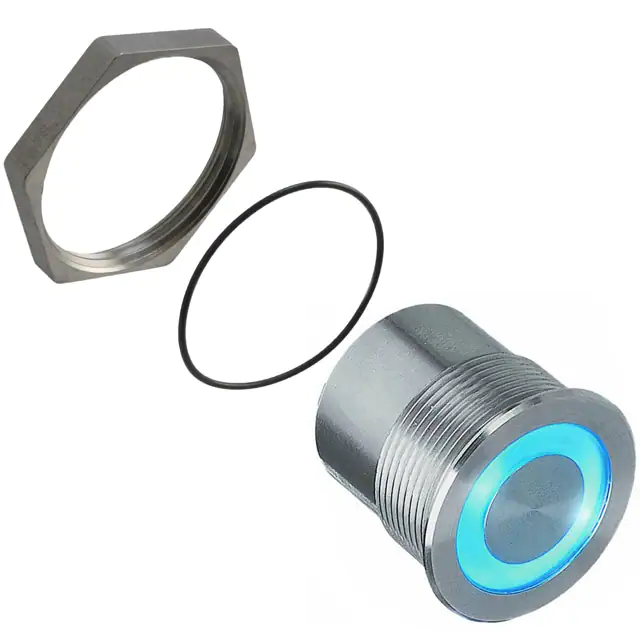

1241.3237SWITCH PUSH SPST-NO 100MA 42V |
1,160 |
|
Datasheet | PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 30.30mm Dia | -40°C ~ 85°C |
|
1241.3010SWITCH PUSH SPST-NO 100MA 42V |
1,129 |
|
Datasheet | PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 24.30mm Dia | -40°C ~ 85°C |
|
|
1241.3058SWITCH PSE 30SNAF-RIRTGN24-IV-L |
4,466 |
|
Datasheet | PSE | - | Active | - | - | - | - | - | - | - | - | No Marking | - | LED, Green/Red | 5 ~ 28 VDC | - | - | - | Circular - 30.30mm Dia | - |
|
|
1241.1104.8098SWITCH PUSH SPST-NO 125MA 48V |
1,036 |
|
Datasheet | MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | White | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
