Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XB6CA45BCOMPLETE PUSH BUTTON, HARMONY XB |
4,311 |
|
Datasheet | Harmony XB6 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Square, Button | - | Red | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
XB6CF1B5BCOMPLETE ILLUMINATED PUSH BUTTON |
1,162 |
|
Datasheet | Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Square, Button | - | White | LED, White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
XB6AW4B5BCOMPLETE ILLUMINATED PUSH BUTTON |
4,553 |
|
Datasheet | Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
XB6AF1B5BCOMPLETE ILLUMINATED PUSH BUTTON |
2,281 |
|
Datasheet | Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | LED, White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
XB6CW1B5BCOMPLETE ILLUMINATED PUSH BUTTON |
4,747 |
|
Datasheet | Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Square, Button | - | White | LED, White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
XB6AW6B5BCOMPLETE ILLUMINATED PUSH BUTTON |
1,727 |
|
Datasheet | Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Blue | LED, Blue | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

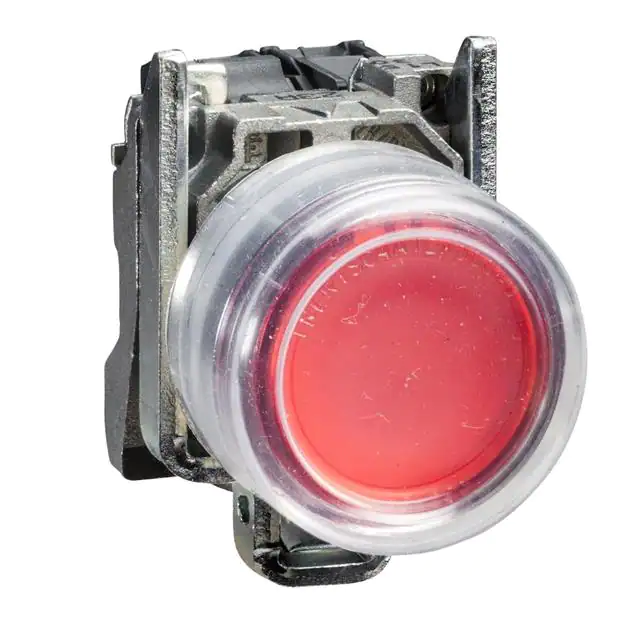

XB4BP42HARMONY XB4, PUSH BUTTON, METAL, |
3,890 |
|
Datasheet | Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NC | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
XB6AF3B5BCOMPLETE ILLUMINATED PUSH BUTTON |
4,313 |
|
Datasheet | Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
XB5FW33B5HARMONY XB5, ANTIMICROBIAL ILLUM |
4,233 |
|
Datasheet | XB5F | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
XB5AW3365HARMONY XB5, ILLUMINATED PUSH BU |
4,076 |
|
Datasheet | Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 250 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
