Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

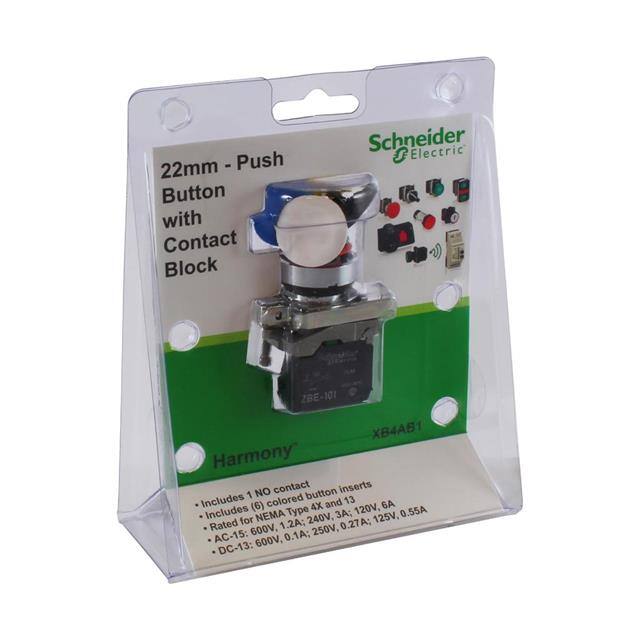

XB4AB1PUSH BUTTON, HARMONY XB4, 22 MM |
4,993 |
|
Datasheet | Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | - | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

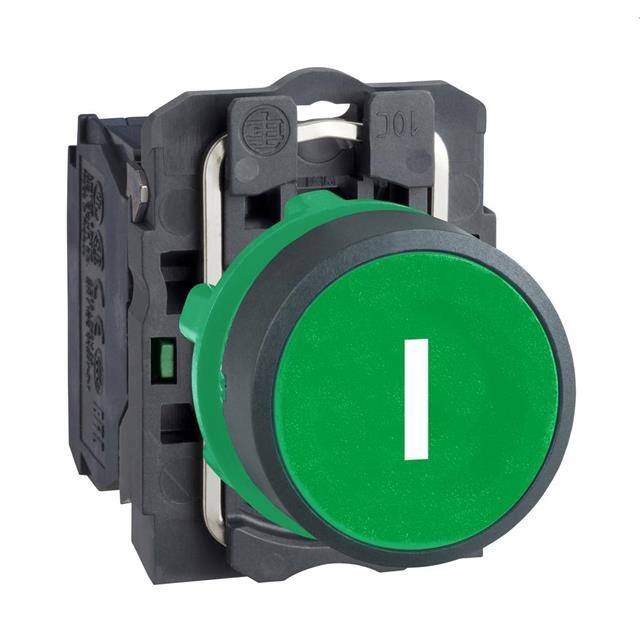

XB5AA3311HARMONY XB5, PUSH BUTTON, PLASTI |
3,134 |
|
Datasheet | Harmony XB5 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
XB6CF4B5BCOMPLETE ILLUMINATED PUSH BUTTON |
2,094 |
|
Datasheet | Harmony XB6 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Square, Button | - | Red | LED, Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
XB6AE4B5BCOMPLETE ILLUMINATED PUSH BUTTON |
2,283 |
|
Datasheet | Harmony XB6 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
XB6AA22BCOMPLETE PUSH BUTTON, HARMONY XB |
1,293 |
|
Datasheet | Harmony XB6 | Box | Obsolete | Panel Mount, Front | Standard | SPST-NC | Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Black | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
XB7NJ03M1ILLUMINATED PUSH BUTTON, HARMONY |
3,795 |
|
Datasheet | Harmony XB7 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Green | LED, Green | 230 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

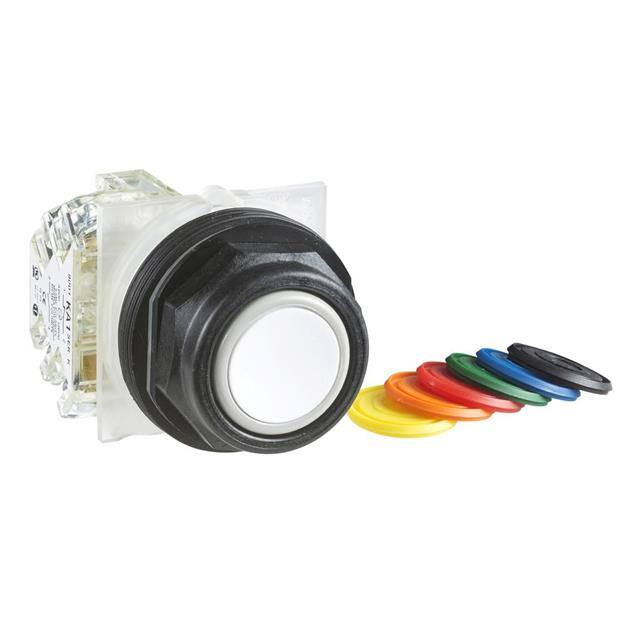

9001SKR1UH5PUSHBUTTON 600VAC 10AMP 30MM SK |
4,794 |
|
Datasheet | Harmony 9001SK | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 3A (AC), 550mA (DC) | 240 V | 125 V | Round, Button, Flush | - | - | - | - | Screw Terminal | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
XALD111H29H7PUSHBUTTON ENCLOSURE START & STO |
3,144 |
|
Datasheet | Harmony XALD | Box | Active | Panel Mount, Front | Standard | - | - | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
ZB5AW0B53COMPLETE BODY/CONTACT ASSEMBLY A |
1,944 |
|
Datasheet | Harmony XB5 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-On | - | - | - | Rectangular, Button (Not Included) | - | Orange | LED, Orange | 24 VDC | Screw Terminal | - | - | - | -40°C ~ 70°C |
|
ZB5AW0B52COMPLETE BODY/CONTACT ASSEMBLY A |
4,555 |
|
Datasheet | Harmony XB5 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NC | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button (Not Included) | - | Orange | LED, Orange | 24 VDC | Screw Terminal | - | - | - | -40°C ~ 70°C |
