Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8N1021-ZSWITCH PUSHBUTTON SPDT 6A 125V |
1,079 |
|
Datasheet | 8N | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
8R2022-N-ZSWITCH PUSHBUTTON DPDT 3A 125V |
535 |
|
Datasheet | 8R-N | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -20°C ~ 85°C |
|

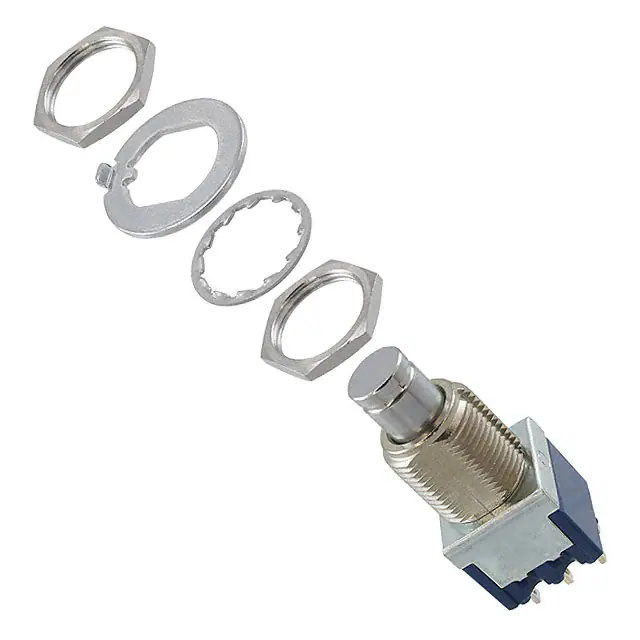

8Y2021-ZSWITCH PUSHBUTTON DPDT 6A 125V |
214 |
|
Datasheet | 8Y | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
8Y3021-ZSWITCH PUSHBUTTON 3PDT 6A 125V |
332 |
|
Datasheet | 8Y | Bulk | Active | Panel Mount, Rear | Standard | 3PDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
TR2-21-L5SWITCH PUSH SPST-NO 10MA 12V |
621 |
|
Datasheet | TR | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 10mA (DC) | - | 12 V | Plunger for Cap | No Marking | - | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
CFP2-1FC6-AWSWITCH PUSHBUTTON SPDT 0.4VA 28V |
1,106 |
|
Datasheet | CFP2 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Washable | - | -40°C ~ 85°C |
|
CFPB-1CC-4W6SWITCH PUSH SPST-NO 1MA 20V |
289 |
|
Datasheet | CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
CFPB-1CC-5G6SWITCH PUSH SPST-NO 1MA 20V |
150 |
|
Datasheet | CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
CFPB-1CC-5G9SWITCH PUSH SPST-NO 1MA 20V |
101 |
|
Datasheet | CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|

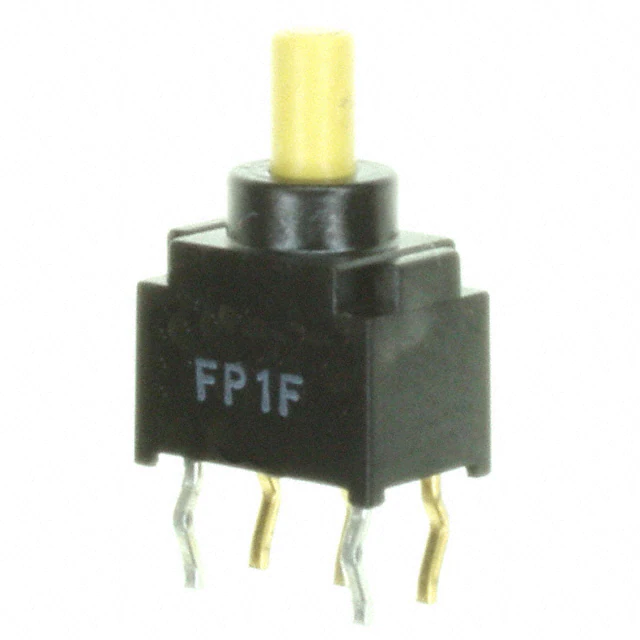

FP1F-2M-ZSWITCH PUSH SPDT 0.4VA 28V |
643 |
|
Datasheet | FP | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | Yellow | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
