Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M22FP-ASF20-BLFLAT PB-ALT-2A-BLUE |
750 |
|
Datasheet | M22 | Bulk | Active | Panel Mount, Front | Standard | DPST | - | 6A (AC), 3A (DC) | 230 V | 24 V | Round, Button, Flush | No Marking | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
M22FP-MSF01-E30-GFLAT PB-MOM-1B-LED-GREEN |
750 |
|
Datasheet | M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | - | 6A (AC), 3A (DC) | 230 V | 24 V | Round, Button, Flush | No Marking | Green | LED, Green | 12 ~ 30 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
M6P-AMS2-RPB-MOM-DPDT-RED |
2,500 |
|
Datasheet | M6 | Retail Package | Active | Panel Mount, Front | Standard | DPDT | On-On | 2A (AC), 400mA (DC) | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|

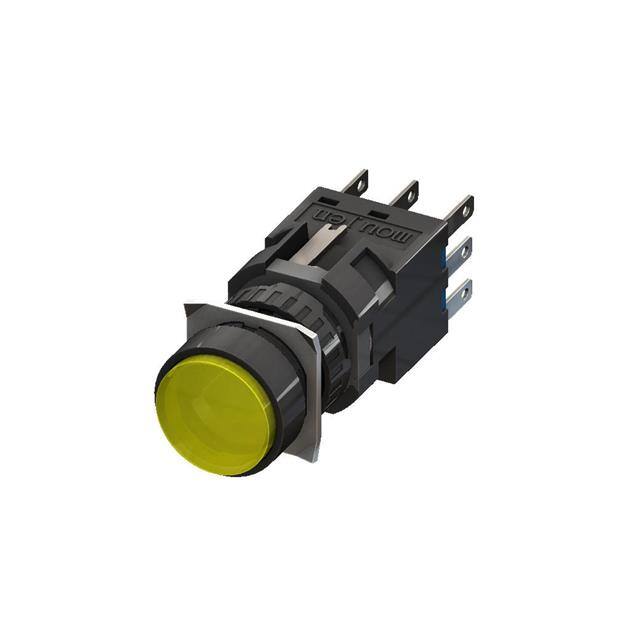

M6P-AMS2-YPB-MOM-DPDT-YELLOW |
2,500 |
|
Datasheet | M6 | Retail Package | Active | Panel Mount, Front | Standard | DPDT | On-On | 2A (AC), 400mA (DC) | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
M6P-AMS2-24ERPB-MOM-DPDT-24VDC-RED |
2,500 |
|
Datasheet | M6 | Retail Package | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 2A (AC), 400mA (DC) | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
M22XP-ASF11-E30-GEXT PB-ALT-1A1B-LED-GREEN |
750 |
|
Datasheet | M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST | - | 6A (AC), 3A (DC) | 230 V | 24 V | Round, Button | No Marking | Green | LED, Green | 12 ~ 30 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
M6P-CMS1-24ERPB-MOM-SPDT-24VDC-RED |
2,500 |
|
Datasheet | M6 | Retail Package | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 2A (AC), 400mA (DC) | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|

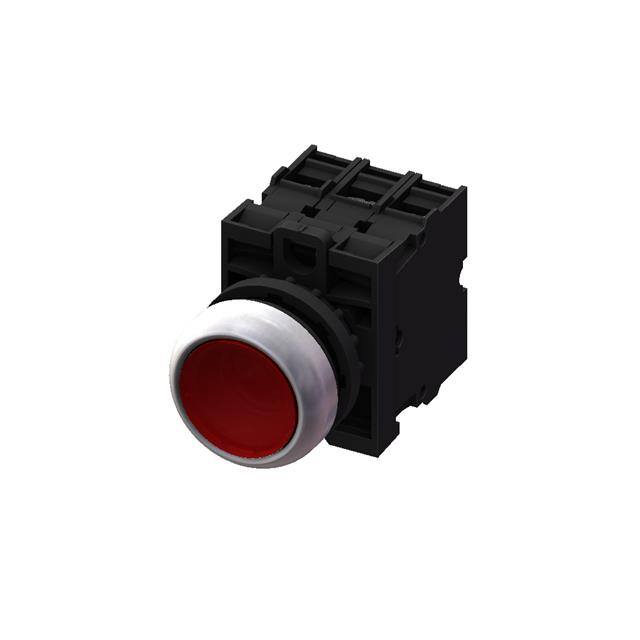

M22FP-MSF11-E230-RFLAT PB-MOM-1A1B-LED-RED |
750 |
|
Datasheet | M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST | - | 6A (AC), 3A (DC) | 230 V | 24 V | Round, Button, Flush | No Marking | Red | LED, Red | 230 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
.jpg)
|
M22FP-MSF11-E230-GFLAT PB-MOM-1A1B-LED-GREEN |
750 |
|
Datasheet | M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST | - | 6A (AC), 3A (DC) | 230 V | 24 V | Round, Button, Flush | No Marking | Green | LED, Green | 230 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
M22FP-ASF11-E230-BLFLAT PB-ALT-1A1B-LED-BLUE |
750 |
|
Datasheet | M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST | - | 6A (AC), 3A (DC) | 230 V | 24 V | Round, Button, Flush | No Marking | Blue | LED, Blue | 230 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
