Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

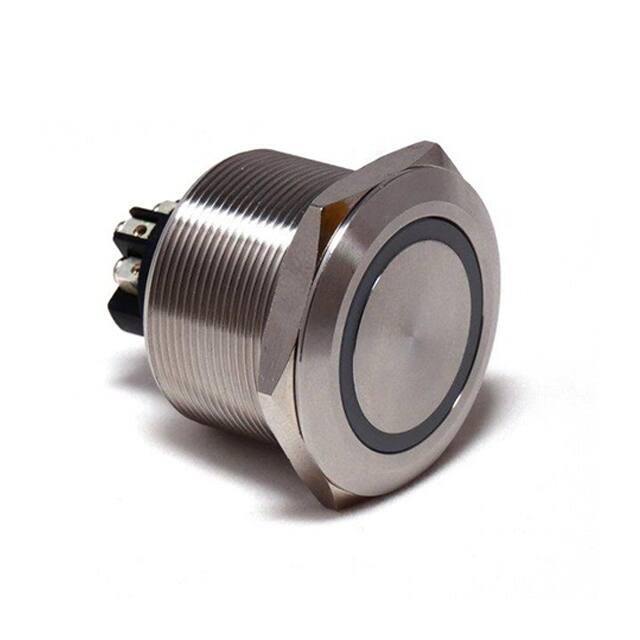

SW30SSL252SWITCH PB SCR LAT RING BL 12V |
1,750 |
|
Datasheet | SW30SS | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -40°C ~ 80°C |
|
SW30SSL253SWITCH PB SCR LAT RING BL 24V |
4,837 |
|
Datasheet | SW30SS | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -40°C ~ 80°C |
|
SW30SSL342SWITCH PB SCR LAT POWER OR 12V |
4,308 |
|
Datasheet | SW30SS | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Orange | 12 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -40°C ~ 80°C |
|
SW30SSL343SWITCH PB SCR LAT POWER OR 24V |
1,529 |
|
Datasheet | SW30SS | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Orange | 24 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -40°C ~ 80°C |
|
SW30SSL312SWITCH PB SCR LAT POWER RD 12V |
3,292 |
|
Datasheet | SW30SS | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -40°C ~ 80°C |
|

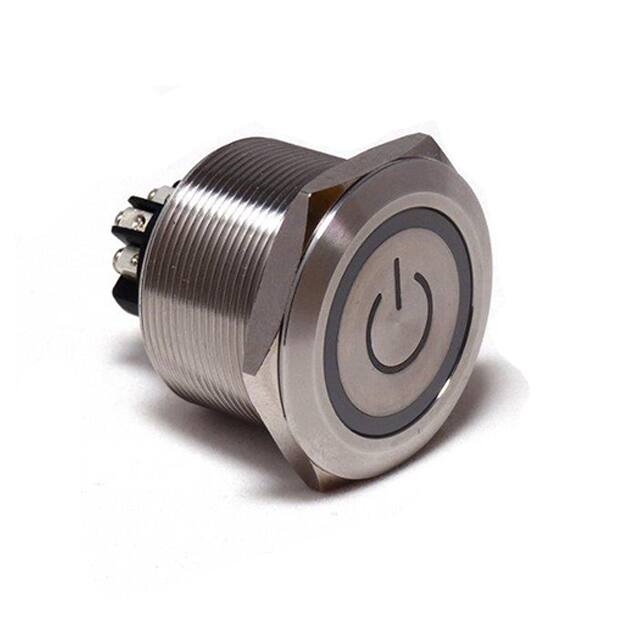

SW30SSL313SWITCH PB SCR LAT POWER RD 24V |
2,536 |
|
Datasheet | SW30SS | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -40°C ~ 80°C |
|
SW30SSL325SWITCH PB SCR LAT POWER GN 110V |
1,803 |
|
Datasheet | SW30SS | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 110 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -40°C ~ 80°C |
|
SW30SSL323SWITCH PB SCR LAT POWER GN 24V |
4,135 |
|
Datasheet | SW30SS | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -40°C ~ 80°C |
|

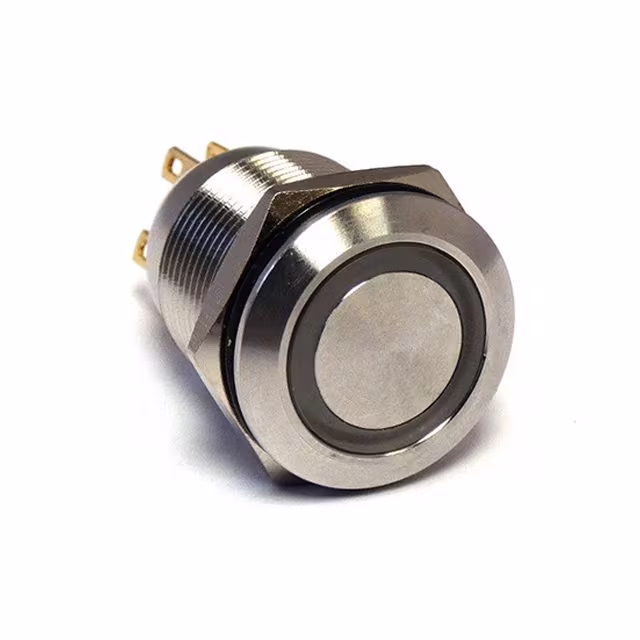

SW19STL252SWITCH PB TAG LAT RING BL 12V |
3,247 |
|
Datasheet | SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|
SW19STM112SWITCH PB SOLDER TAG MOM DOT 12V |
3,601 |
|
Datasheet | SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
