Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LOCKOUT BLOCKER 10MMSWITCH PUSHBUTTON |
2,499 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KBDBKN6AULFTSWITCH TACTILE |
12,646 |
|
Datasheet | KBD | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (DC) | - | 12 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | - | -10°C ~ 70°C |
|

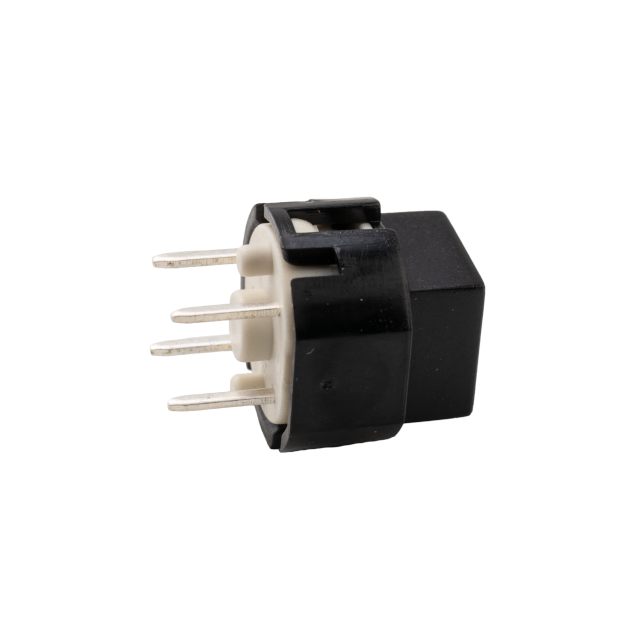

KEY-S-BLACK-NLTACT SWITCH |
2,500 |
|
Datasheet | - | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|
50-0108-00SWITCH PUSH SPDT 0.5A 12V |
664 |
|
Datasheet | J-977 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-On-Off | 500mA (DC) | - | 12 V | Round, Plunger | No Marking | Blue | - | - | PC Pin | - | - | - | - |
|
|
PLA-L2P-B1NN-R3KTSW PB LOCK DPDT BLUE LED |
1,937 |
|
Datasheet | PLA | Tray | Active | Through Hole | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PLE-N1W-B1NNSWITCH SILENT PB BLUE LED |
1,233 |
|
Datasheet | PLE | Tray | Active | Panel Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PLE-N1W-G1NNSWITCH SILENT PB GREEN LED |
934 |
|
Datasheet | PLE | Tray | Active | Panel Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PLE-N1W-R1NNSWITCH SILENT PB RED LED |
726 |
|
Datasheet | PLE | Tray | Active | Panel Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PLE-N1W-W1NNSWITCH SILENT PB WHITE LED |
439 |
|
Datasheet | PLE | Tray | Active | Panel Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PLE-N1W-Y1NNSWITCH SILENT PB YELLOW LED |
204 |
|
Datasheet | PLE | Tray | Active | Panel Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
D6C60 F2 LFSSWITCH PUSH SPST-NO 0.1A 32V |
1,402 |
|
Datasheet | D6 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | Blue | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
|
MX1A-61NWCLEAR TOP NON-LUBRICATED |
438 |
|
Datasheet | MX | Bag | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | - | 5 V | 5 V | Plunger for Cap | - | Black | - | - | PC Pin | IP40 | - | - | - |
|
|
MX2A-11NNBLACK STEM, FULL TRAVEL MECHANIC |
445 |
|
Datasheet | MX | Bag | Active | Panel Mount, Front | Keyswitch | SPST-NO | Off-Mom | - | 5 V | 5 V | Plunger for Cap | - | Black | - | - | PC Pin | IP40 | - | - | - |
|
|
MX2A-51NBMX RGB, SILVER STEM, FULL TRAVEL |
443 |
|
Datasheet | MX | Bag | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | - | 5 V | 5 V | Plunger for Cap | - | Silver | LED, Blue/Green/Red | - | PC Pin | IP40 | - | - | - |
|
|
MX2A-E1NWSWITCH TACTILE |
436 |
|
Datasheet | MX | Bag | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | - | 5 V | 5 V | Plunger for Cap | - | Blue | - | - | PC Pin | IP40 | - | - | - |
|
|
MX2A-51NWSILVER STEM, FULL TRAVEL MECHANI |
436 |
|
Datasheet | MX | Bag | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | - | 5 V | 5 V | Plunger for Cap | - | Silver | - | - | PC Pin | IP40 | - | - | - |
|
|
MX2A-51NNSILVER STEM |
436 |
|
Datasheet | MX | Bag | Active | Panel Mount, Front | Keyswitch | SPST-NO | Off-Mom | - | 5 V | 5 V | Plunger for Cap | - | Silver | - | - | PC Pin | IP40 | - | - | - |
|
|
MX2A-E1NASWITCH TACTILE |
413 |
|
Datasheet | MX | Bag | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | - | 5 V | 5 V | Plunger for Cap | - | Blue | LED, Blue/Green/Red | - | PC Pin | IP40 | - | - | - |
|
|
MX2A-G1NNBROWN STEM, FULL TRAVEL MECHANIC |
405 |
|
Datasheet | MX | Bag | Active | Panel Mount, Front | Keyswitch | SPST-NO | Off-Mom | - | 5 V | 5 V | Plunger for Cap | - | Brown | - | - | PC Pin | IP40 | - | - | - |
|
|
MX2A-51NASILVER STEM |
389 |
|
Datasheet | MX | Bag | Active | Panel Mount, Front | Keyswitch, Illuminated | SPST-NO | Off-Mom | - | 5 V | 5 V | Plunger for Cap | - | Silver | LED, Blue/Green/Red | - | PC Pin | IP40 | - | - | - |
