Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AML21FBA2ABSWITCH PUSHBUTTON SPDT 3A 125V |
4,936 |
|
Datasheet | AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - |
|
AML21FBA3BASWITCH PUSHBUTTON SPDT 0.1A 125V |
2,219 |
|
Datasheet | AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 125 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | - | PC Pin | - | - | Rectangular - 28.98mm x 19.05mm | - |
|
AML22CBB2ACSWITCH PUSHBUTTON DPDT 3A 125V |
3,288 |
|
Datasheet | AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Red | 2.4 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|

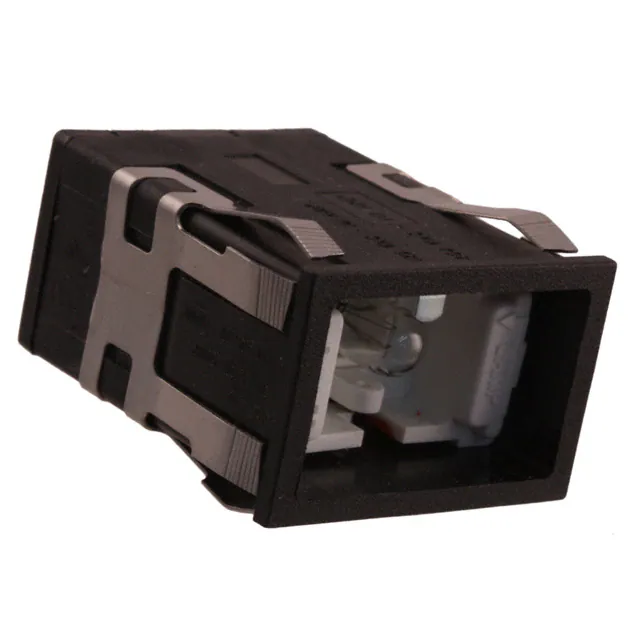

AML31FBE4ADSWITCH PUSH DPST-NO 10A 125V |
4,784 |
|
Datasheet | AML31 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO (DM) | Off-On | 10A (AC/DC) | 125 V | 30 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | 28 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 29.00mm x 19.00mm | - |
|
2PB32-T2SWITCH PUSH 2XSPDT 1A 30V |
3,783 |
|
Datasheet | PB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT x 2 | On-Mom | 1A (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Turret | - | - | - | -55°C ~ 85°C |
|
|
2PB455-TSWITCH PUSH 2XSPDT 1A 30V |
4,726 |
|
Datasheet | PB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT x 2 | On-Mom | 1A (DC) | - | 30 V | Round, Plunger | No Marking | Silver | - | - | Solder Turret | - | - | - | -55°C ~ 85°C |
|
|
2PB589SWITCH PUSH 2XSPDT |
3,283 |
|
Datasheet | PB | Bulk | Active | Panel Mount, Rear | Standard | SPDT x 2 | On-Mom | - | - | - | Round, Plunger | No Marking | Silver | - | - | Solder Lug | - | - | - | - |
|
|
3PB11-H58SWITCH PUSH 3XSPDT 5A 250V |
1,237 |
|
Datasheet | PB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT x 3 | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round, Plunger | No Marking | Black | - | - | Quick Connect - 0.058" (Round) | - | - | - | -55°C ~ 85°C |
|
|
AML21CBE2DC-001ELECT CONTROL PUSHBUTTON SWITCH |
3,337 |
|
Datasheet | AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | 4PDT | On-Mom | 100mA (AC/DC) | 125 V | 125 V | Square, Button (Not Included) | No Marking | - | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
|
AML21CBE2DD-001ELECT CONTROL PUSHBUTTON SWITCH |
3,976 |
|
Datasheet | AML21 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | 4PDT | On-On | 100mA (AC/DC) | 125 V | 125 V | Square, Button (Not Included) | No Marking | - | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
