Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AML22CBB8ADSWITCH PUSHBUTTON DPDT 3A 125V |
1,026 |
|
Datasheet | AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Red | 2.4 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Epoxy Sealed Terminals | Square - 19.05mm x 19.05mm | - |
|
|
AML22CBR8ADSWITCH PUSHBUTTON DPDT 3A 125V |
2,527 |
|
Datasheet | AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Green | 2.4 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Epoxy Sealed Terminals | Square - 19.05mm x 19.05mm | - |
|
|
AML31FBE4ACSWITCH PUSH DPST-NO 10A 125V |
4,761 |
|
Datasheet | AML31 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO (DM) | Off-Mom | 10A (AC/DC) | 125 V | 30 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | 28 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 29.00mm x 19.00mm | - |
|
|
AML21JBE2ACUNSEALED OI-PB SWITCH |
2,572 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AML32FBC7ADSWITCH PUSH DPST-NO 10A 125V |
3,970 |
|
Datasheet | AML32 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO (DM) | Off-On | 10A (AC/DC) | 125 V | 30 V | Rectangular, Button (Not Included) | No Marking | - | Neon, Red | 250 VAC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 29.00mm x 19.00mm | - |
|
|
AML21MBC3ADSWITCH PUSHBUTTON DPDT 3A 125V |
4,097 |
|
Datasheet | AML21 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | 14 VAC | PC Pin | - | Full Guard Bezel | Rectangular - 28.98mm x 19.05mm | - |
|
|
MML31KA3ADKLKSWITCH PUSH DPST-NO 6A 125V |
4,244 |
|
Datasheet | MML31 | Bulk | Obsolete | Panel Mount, Front | Standard | DPST-NO | Off-On | 6A (AC), 2A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Black | - | - | PC Pin | - | - | Rectangular - 13.23mm x 8.26mm | -18°C ~ 65°C |
|

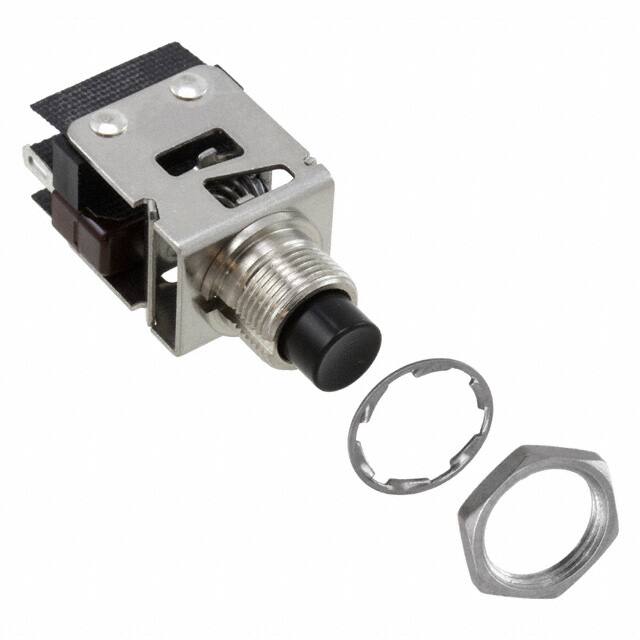

1PB935-H4SWITCH PUSHBUTTON SPDT 5A 250V |
1,185 |
|
Datasheet | PB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round, Plunger | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | - | - |
|
|
AML21JBE2ADUNSEALED OI-PB SWITCH |
1,111 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AML22CBM2ABSWITCH PUSHBUTTON SPDT 3A 125V |
3,248 |
|
Datasheet | AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Yellow | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
