Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CH1NGSRGNSSWITCH PB SPDT 1A 125V |
2,827 |
|
Datasheet | CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
D16OAR10REDSWITCH PUSHBUTTON SPDT 8A 125V |
2,882 |
|
Datasheet | D16 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Mushroom | No Marking | Red | - | - | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
D16OAR10GRNSWITCH PUSHBUTTON SPDT 8A 125V |
4,928 |
|
Datasheet | D16 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Mushroom | No Marking | Green | - | - | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
D16OAR11CGRNSWITCH PUSHBUTTON SPDT 8A 125V |
2,996 |
|
Datasheet | D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button | No Marking | Green | Incandescent, Green | 28 VAC/DC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
TSPD11CGPCV0SWITCH PUSHBUTTON SPST-NO |
3,199 |
|
Datasheet | TSP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | - | - | - | Plunger | No Marking | - | - | - | PC Pin | - | - | - | - |
|
|
TP33WW03550PUSHBUTTON SWITCH SMT TP PCB |
2,004 |
|
Datasheet | TP | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
C7003AFBR2SPST PUSHBUTTON SWITCH |
3,424 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | On-Off | 16A (AC) | 250 V | - | Round, Button | No Marking | Red | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 25.00mm Dia | - |
|
|
PV3F2H0SS-305SWITCH PB DPDT 2A 48V |
2,107 |
|
Datasheet | PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, White | 24 VDC | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
C936PRAPUSH BUTTON SWICH |
3,265 |
|
Datasheet | 0936 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC), 250mA (DC) | 250 V | 250 V | Round, Plunger | No Marking | Red | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
|
SW19STL252SWITCH PB TAG LAT RING BL 12V |
3,247 |
|
Datasheet | SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|
|
PVA6LRP212G (PVA6L)1Switches |
1,003 |
|
Datasheet | PVA6 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 2A (DC) | - | 36 V | Round, Button | - | Clear | LED, Green/Red | 2, 3.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
|
PV3H2B011-333Switches |
2,223 |
|
Datasheet | PV3 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button | - | Black | LED, Green | 6 VDC | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|

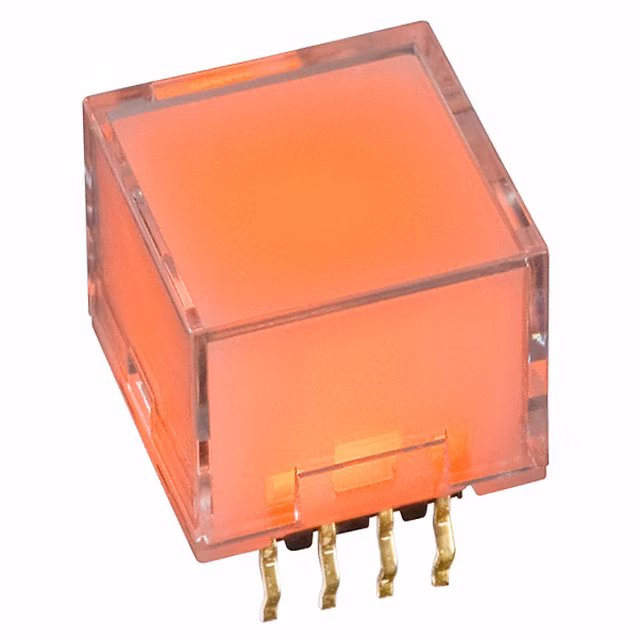

NP0115HG03LD-JBSWITCH PUSH SPST-NO 0.4VA 28V |
3,156 |
|
Datasheet | NP01 | Box | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2.1 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
LB15WKG01/UC-5F-JFSWITCH PUSHBUTTON SPDT 0.4VA 28V |
3,106 |
|
Datasheet | LB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
SV8F23SS301SWITCH PB SPST-NO 2A 36V |
3,859 |
|
Datasheet | SV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | - | Silver | LED, White | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 70°C |
|
|
BH16NCBBRGSWITCH PB SPST 1A 125VAC |
4,981 |
|
Datasheet | BH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | - | Black | LED, Green/Red | 2.1, 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
P265B-1D-RND MTLSWITCH PUSH BUTTON |
4,327 |
|
- |
P26 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 6A (AC) | 125 V | - | Round, Button | - | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
|
P26L-1D-RND MTLSWITCH PUSH BUTTON |
1,692 |
|
Datasheet | P26 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 6A (AC) | 125 V | - | Round, Button | - | - | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
|
P26A-1D-RND-MTL/2 HEXSWITCH PUSH BUTTON |
2,480 |
|
- |
P26 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 6A (AC) | 125 V | - | Round, Button | - | - | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
|
P26L-1C-BLSWITCH PUSH BUTTON |
2,326 |
|
- |
P26 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 6A (AC) | 125 V | - | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
