Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
749020023AXFRMR LAN 1000 BASE-T 1:1 350UH |
325 |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.594" L x 0.280" W (15.10mm x 7.10mm) | 0.167" (4.25mm) | -40°C ~ 85°C | - | - |
|
749022011TRANSFORMER LAN 10/100/1000 POE |
1,545 |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 0.720" L x 0.480" W (18.30mm x 12.20mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|

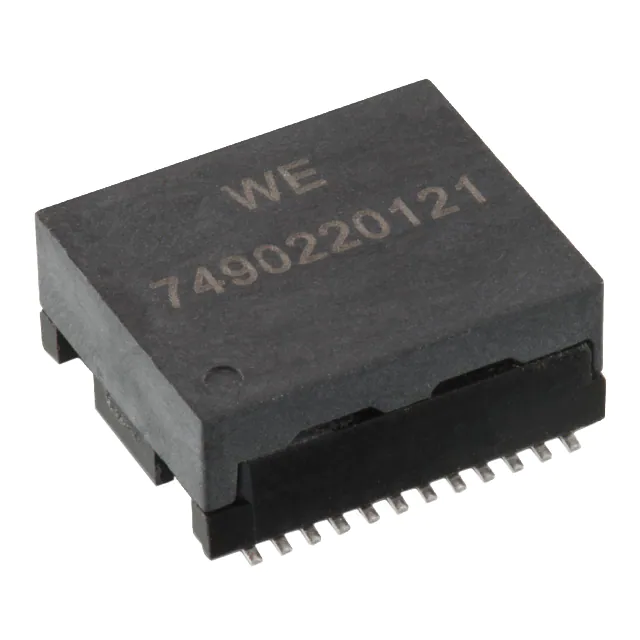

7490220121PULSE XFMR 1CT:1CT TX 1CT:1CT RX |
829 |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.720" L x 0.579" W (18.29mm x 14.70mm) | 0.283" (7.20mm) | -40°C ~ 85°C | - | - |
|

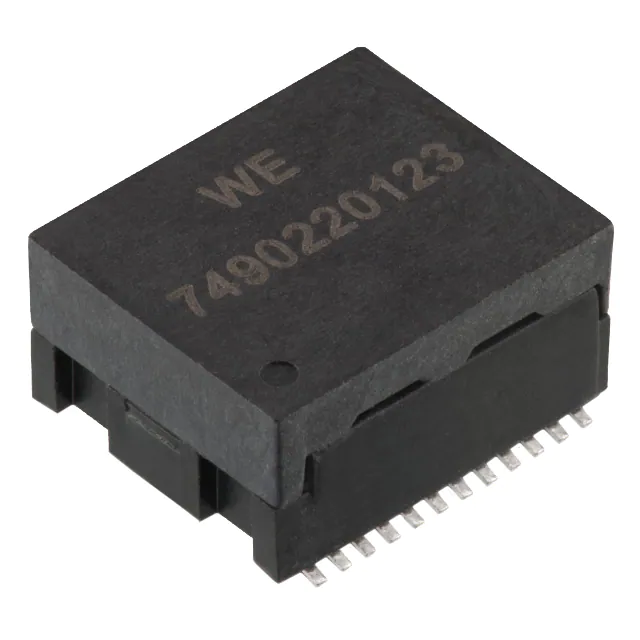

7490220123PULSE XFMR 1CT:1CT TX 1CT:1CT RX |
633 |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 180µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.720" L x 0.579" W (18.29mm x 14.70mm) | 0.346" (8.80mm) | -40°C ~ 85°C | - | - |
|
749020100AWE-LAN 10/100/1000 BASE-T SMD |
758 |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.339" W (12.70mm x 8.60mm) | 0.128" (3.25mm) | -40°C ~ 105°C | - | - |
|
749020011ATRANSFORMER LAN 10/100/1000 SMD |
1,327 |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.689" L x 0.559" W (17.50mm x 14.20mm) | 0.256" (6.50mm) | -40°C ~ 85°C | - | - |
|
749020010ATRANSFORMER LAN 10/100/1000 SMD |
414 |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.689" L x 0.559" W (17.50mm x 14.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|

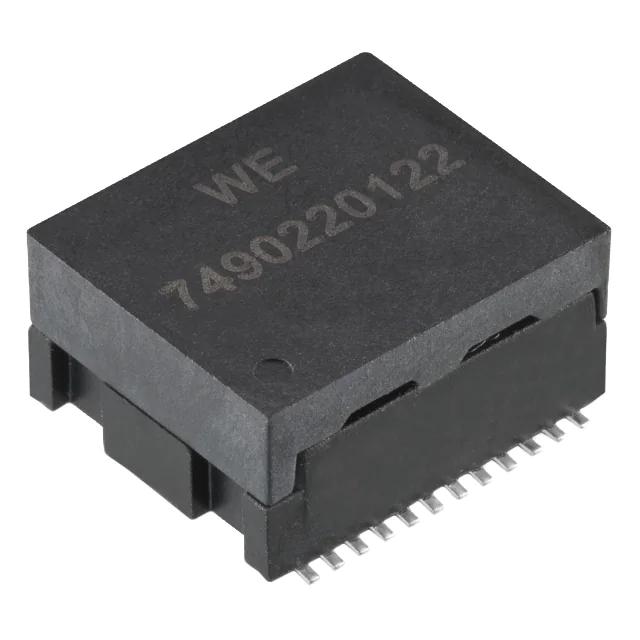

7490220122PULSE XFMR 1CT:1CT TX 1CT:1CT RX |
147 |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.720" L x 0.579" W (18.29mm x 14.70mm) | 0.346" (8.80mm) | -40°C ~ 85°C | - | - |
|
749020310WE-LAN AQ 10/100/1000 BASE-T SMD |
668 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.690" L x 0.575" W (17.53mm x 14.60mm) | 0.177" (4.50mm) | -40°C ~ 105°C | - | - |
|
760301302XFRMR GATE DRIVE SMD |
909 |
|
Datasheet | WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 750µH | 102VµS | 1:1 | Surface Mount | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
