Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

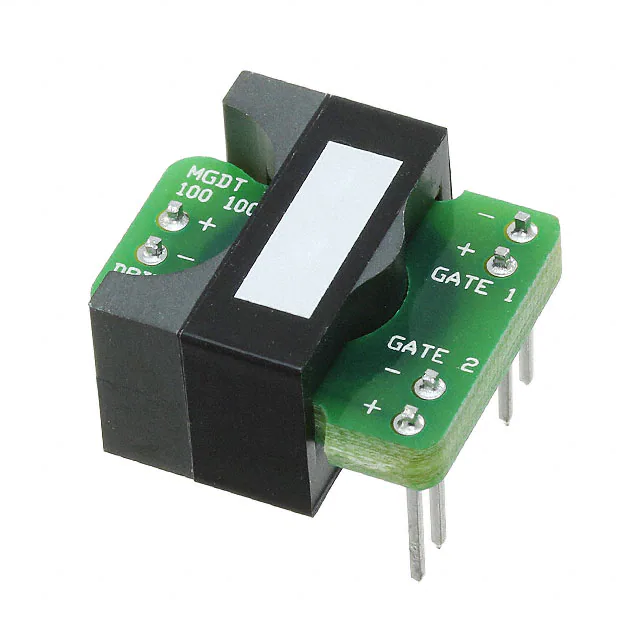

MGDT100100PLANAR GATE-DRIVE XFMR, 1 : 1 : |
137 |
|
Datasheet | - | Tray | Active | Gate Drive | 240µH | - | 1:1:1 | Through Hole | 0.810" L x 0.725" W (20.57mm x 18.42mm) | 0.450" (11.43mm) | -55°C ~ 125°C | - | - |
|

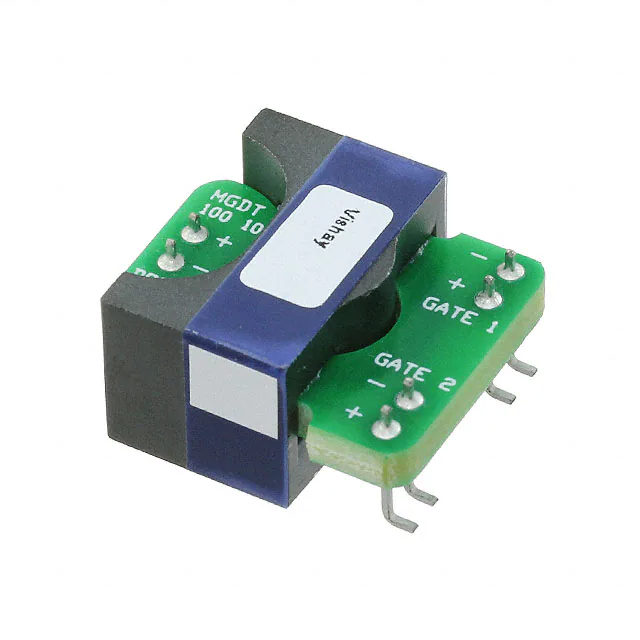

MGDT100100-SMPLANAR GATE-DRIVE XFMR, 1 : 1 : |
126 |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 240µH | - | 1:1:1 | Surface Mount | 0.810" L x 0.725" W (20.57mm x 18.42mm) | 0.450" (11.43mm) | -55°C ~ 125°C | - | - |
|
|
MGDT100100LFPLANAR GATE-DRIVE XFMR, 1 : 1 : |
194 |
|
Datasheet | - | Tray | Active | Gate Drive | 240µH | - | 1:1:1 | Through Hole | 0.810" L x 0.725" W (20.57mm x 18.42mm) | 0.450" (11.43mm) | -55°C ~ 125°C | - | - |
|
MTBAUGDT125100TRANSFORMER, MICRO GATE DRIVE, 1 |
3,289 |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 330µH | 63VµS | 1:1:1 | Surface Mount | - | 0.220" (5.59mm) | -55°C ~ 130°C | - | - |
|
|
MGDT100125-SMPLANAR GATE-DRIVE XFMR, 1 : 1.25 |
1,325 |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 240µH | - | 1:1.25:1.25 | Surface Mount | 0.810" L x 0.725" W (20.57mm x 18.42mm) | 0.450" (11.43mm) | -55°C ~ 125°C | - | - |
|
|
MTBAUGDT250102-LFTRANSFORMER, GATE DRIVE 5MM, 250 |
3,121 |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 264µH | 22.4VµS | 1:1:1 | Surface Mount | - | 0.220" (5.59mm) | -55°C ~ 130°C | - | - |
|
|
MTBAUGDT250101-LFTRANSFORMER, GATE DRIVE 5MM, 250 |
3,183 |
|
Datasheet | MTBAUGDT | Tape & Reel (TR) | Active | Gate Drive | 350µH | 25.8VµS | 1:1 | Surface Mount | - | 0.220" (5.59mm) | -55°C ~ 130°C | - | - |
|
|
MTBAUGDT250252-LFTRANSFORMER, GATE DRIVE 5MM, 250 |
2,707 |
|
Datasheet | MTBAUGDT | Bulk | Active | Gate Drive | 300µH | 23.8VµS | 2.5:1:1 | Surface Mount | - | 0.220" (5.59mm) | -55°C ~ 130°C | - | - |
|
|
MTBAUGDT250251TRANSFORMER, GATE DRIVE 5MM, 250 |
1,804 |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 473µH | 30.6VµS | 2.5:1 | Surface Mount | - | 0.220" (5.59mm) | -55°C ~ 130°C | - | - |
|
|
MTBAUGDT125050-LFTRANSFORMER, MICRO GATE DRIVE, 1 |
2,823 |
|
Datasheet | MTBAUGDT | Tape & Reel (TR) | Active | Gate Drive | 330µH | 63VµS | 1:0.5:0.5 | Surface Mount | - | 0.220" (5.59mm) | -55°C ~ 130°C | - | - |
