Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TP-104-PINTRANSFORMER,WIDE-BAND |
1,393 |
|
Datasheet | - | Tray | Active | - | - | - | - | Surface Mount | 0.374" L x 0.374" W (9.50mm x 9.50mm) | 0.150" (3.80mm) | -55°C ~ 85°C | - | - |
|
TP-102-PINTRANSFORMER,WIDE-BAND |
1,331 |
|
Datasheet | - | Tray | Active | - | - | - | - | Surface Mount | 0.374" L x 0.374" W (9.50mm x 9.50mm) | 0.150" (3.80mm) | -55°C ~ 85°C | - | - |
|
TP-105-PINTRANSFORMER,WIDE-BAND |
4,683 |
|
Datasheet | - | Tray | Active | - | - | - | - | Surface Mount | 0.374" L x 0.374" W (9.50mm x 9.50mm) | 0.150" (3.80mm) | -55°C ~ 85°C | - | - |
|

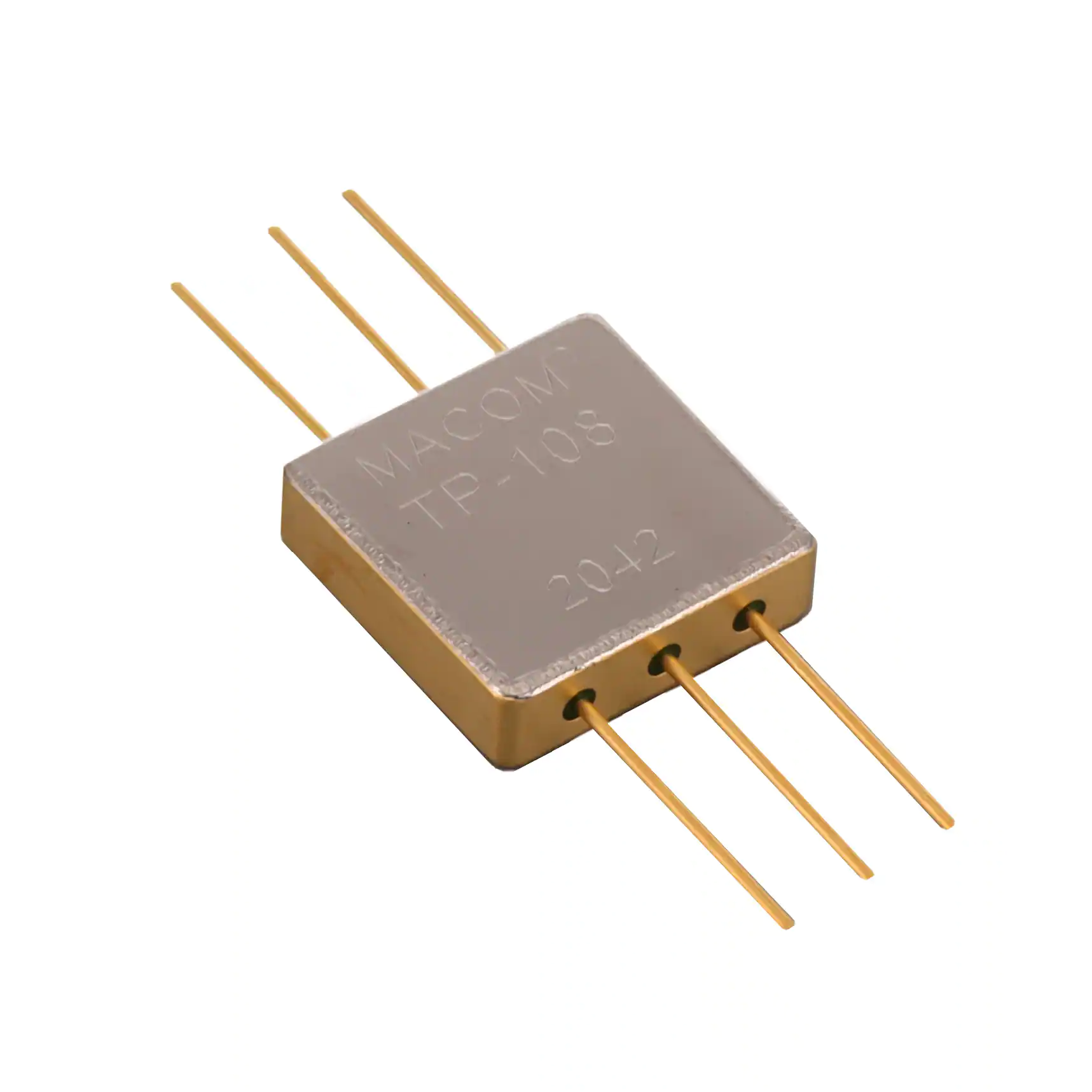

TP-108-PINTRANSFORMER,WIDE-BAND |
2,424 |
|
Datasheet | - | Tray | Active | - | - | - | - | Surface Mount | 0.374" L x 0.374" W (9.50mm x 9.50mm) | 0.150" (3.80mm) | -55°C ~ 85°C | - | - |
|
|
TPX-75-4NTRANSFORMER,WIDE-BAND |
1,070 |
|
Datasheet | - | Tray | Active | - | - | - | - | Surface Mount | 1.343" L x 1.343" W (34.10mm x 34.10mm) | 0.752" (19.10mm) | -55°C ~ 85°C | - | - |
|
|
MABA-011111TRANSFORMER GIGABIT ETH |
4,388 |
|
- |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | - | - | - | Surface Mount | 0.231" L x 0.211" W (5.86mm x 5.36mm) | 0.167" (4.25mm) | -40°C ~ 110°C | - | - |
