Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F10-3600-C2PWR XFMR LAMINATED 36VA TH |
3,226 |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 7.2A, Series 3.6A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
F12-2850-C2PWR XFMR LAMINATED 36VA TH |
4,487 |
|
Datasheet | Split Pack™, Class 2/3, F | Bulk | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 5.7A, Series 2.85A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
F16-2250-C2PWR XFMR LAMINATED 36VA TH |
3,756 |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 4.5A, Series 2.25A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4200Vrms | 1.1 lbs (499 g) |
|
|
F20-1800-C2PWR XFMR LAMINATED 36VA TH |
4,322 |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 3.6A, Series 1.8A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
F24-1500-C2PWR XFMR LAMINATED 36VA TH |
1,341 |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 3A, Series 1.5A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms | 0.44 lb (199.58 g) |
|
|
F48-750-C2PWR XFMR LAMINATED 36VA TH |
4,739 |
|
Datasheet | Split Pack™, Class 2/3, F | Bulk | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 1.5A, Series 750mA | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
F56-650-C2PWR XFMR LAMINATED 36VA TH |
2,672 |
|
Datasheet | Split Pack™, Class 2/3, F | Bulk | Active | Laminated Core | 115V | Parallel 28 V, Series 56V | Parallel 1.3A, Series 650mA | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms | 1.1 lbs (499 g) |
|
F28-1300-C2PWR XFMR 36VA TH |
2,145 |
|
Datasheet | F28 | Bulk | Active | - | 115V | Parallel 14V, Series 28V | Parallel 2.6A, Series 1.3A | Single | Dual | No | 36VA | Through Hole | PC Pin | 67.01mm L x 56.01mm W | 42.50mm | 4200V | - |
|

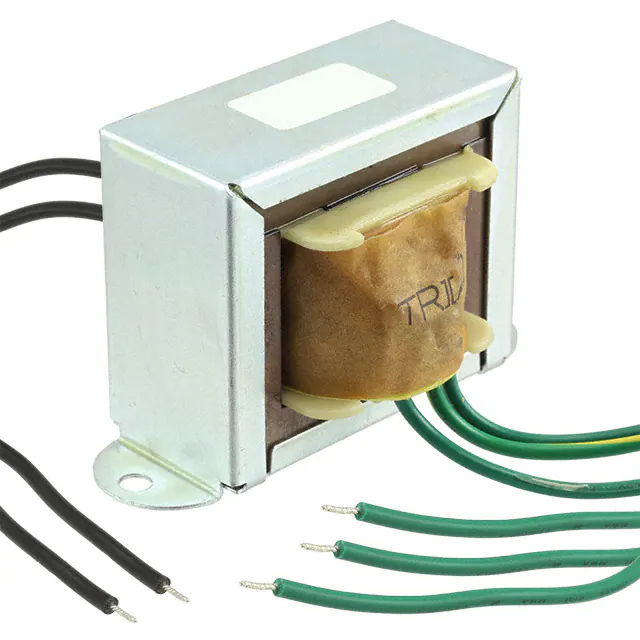

F-250XPWR XFMR LAMINATED 14VA CHAS MT |
1,711 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 14V | 1A | Single | Single | Yes | 14VA | Chassis Mount | Wire Leads | 82.55mm L x 44.45mm W | 49.20mm | 1500Vrms | 1.2 lbs (544.3 g) |
|
TCT40-01E07AEPWR XFMR LAMINATED 40VA CHAS MT |
1,118 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V | 24V | 1.67A | Single | Single | No | 40VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 66.04mm W | 59.44mm | 1500VAC | 1.5 lbs (680.4 g) |
