Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

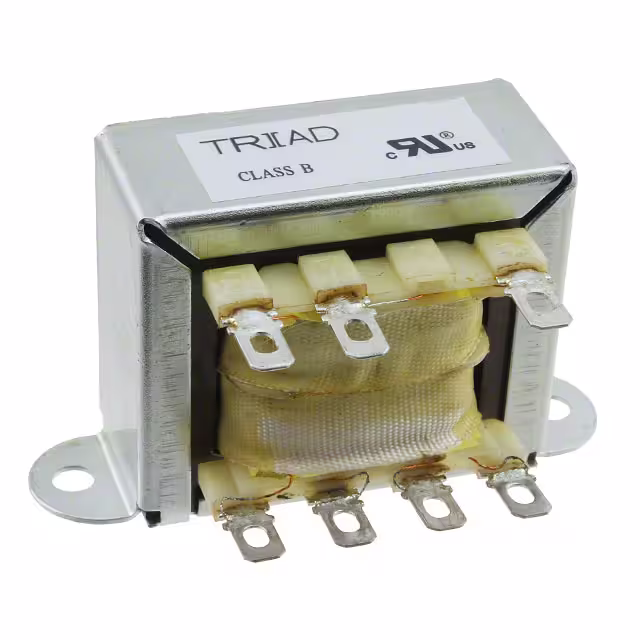

FD5-48PWR XFMR LAMINATED 12VA CHAS MT |
3,795 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 48V | 250mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
FD5-56PWR XFMR LAMINATED 12VA CHAS MT |
4,189 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 56V | 220mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
F-3115XPWR XFMR LAMINATED 2VA CHAS MT |
1,247 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V, 230V | 24V | 85mA | Dual | Single | Yes | 2VA | Chassis Mount | Wire Leads | 52.37mm L x 34.93mm W | 30.15mm | 1500Vrms | 0.3 lb (136.08 g) |
|
F-365XPPWR XFMR LAMINATED 10VA TH |
3,833 |
|
Datasheet | Dual Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 6.30V, Series 12.6V | Parallel 1.6A, Series 800mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 71.42mm L x 36.50mm W | 41.28mm | 1500Vrms | 0.688 lb (312.07 g) |
|
FP10-600-BPWR XFMR LAMINATED 6VA TH |
3,362 |
|
Datasheet | Flat Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms | 0.438 lb (198.67 g) |
|
|
FP16-375-BPWR XFMR LAMINATED 6VA TH |
3,497 |
|
Datasheet | Flat Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 750mA, Series 375mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms | 0.438 lb (198.67 g) |
|
|
FP20-300-BPWR XFMR LAMINATED 6VA TH |
2,398 |
|
Datasheet | Flat Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 600mA, Series 300mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms | 0.438 lb (198.67 g) |
|
|
FP24-250-BPWR XFMR LAMINATED 6VA TH |
4,499 |
|
Datasheet | Flat Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 500mA, Series 250mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms | 0.438 lb (198.67 g) |
|
|
FP30-200-BPWR XFMR LAMINATED 6VA TH |
2,301 |
|
Datasheet | Flat Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 15V, Series 30V | Parallel 400mA, Series 200mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms | 0.438 lb (198.67 g) |
|
|
FP34-170-BPWR XFMR LAMINATED 6VA TH |
1,009 |
|
Datasheet | Flat Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 340mA, Series 170mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms | 0.438 lb (198.67 g) |
