Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70011KPWR XFMR TOROIDAL 3.2VA TH |
229 |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 356mA, Series 178mA | Dual | Dual | No | 3.2VA | Through Hole | PC Pin | 44.70mm L x 44.70mm W | 19.50mm | 4000Vrms | 0.197 lb (89.36 g) |
|
62054PWR XFMR TOROIDAL 15VA CHAS MT |
134 |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 834mA, Series 417mA | Dual | Dual | No | 15VA | Chassis Mount | Wire Leads | - | 24.00mm | 4000Vrms | 0.578 lb (262.18 g) |
|
70020KPWR XFMR TOROIDAL 5VA TH |
179 |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 714mA, Series 357mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 49.70mm L x 49.70mm W | 19.50mm | 4000Vrms | 0.254 lb (115.21 g) |
|
|
70032KPWR XFMR TOROIDAL 7VA TH |
154 |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 584mA, Series 292mA | Dual | Dual | No | 7VA | Through Hole | PC Pin | 49.70mm L x 49.70mm W | 23.10mm | 4000Vrms | 0.32 lb (145.15 g) |
|
70070KPWR XFMR TOROIDAL 35VA TH |
127 |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 5A, Series 2.5A | Dual | Dual | No | 35VA | Through Hole | PC Pin | 72.00mm L x 72.00mm W | 37.50mm | 4000Vrms | 1 lb (453.59 g) |
|

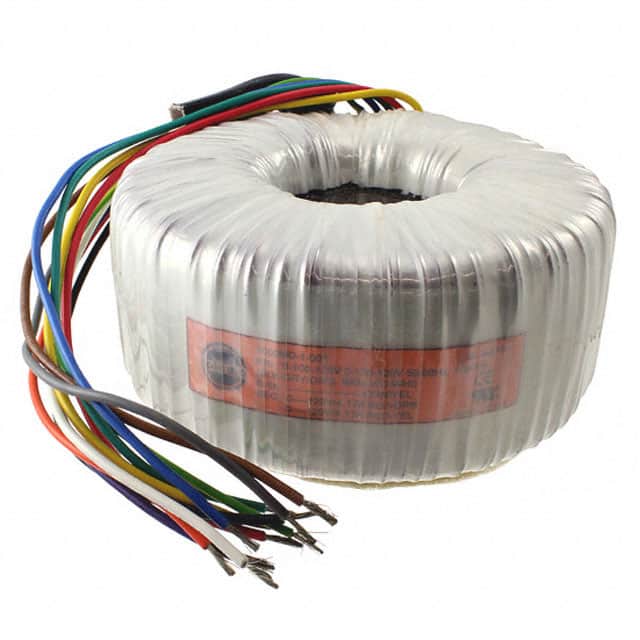

1000MD-1-003PWR XFMR TOROIDAL 1000VA CHAS MT |
2,286 |
|
Datasheet | MD | Box | Active | Toroidal | 100V, 120V, 200V, 240V | Parallel 120V, Series 240V | Parallel 8.33A, Series 4.17A | Dual, Multiple Taps | Single, Multiple Taps | No | 1000VA | Chassis Mount | Wire Leads | 168.00mm Dia x 80.00mm W | - | 5000Vrms | 18 lbs (8.2 kg) |
|
1500MD-1-004PWR XFMR TOROIDAL 1500VA CHAS MT |
1,879 |
|
Datasheet | MD | Box | Active | Toroidal | 100V, 120V, 200V, 240V | Parallel 120V, Series 240V | Parallel 12.5A, Series 6.25A | Dual, Multiple Taps | Single, Multiple Taps | No | 1500VA | Chassis Mount | Wire Leads | 200.00mm Dia x 90.00mm W | - | 5000Vrms | 26 lbs (11.8 kg) |
|
70050KPWR XFMR TOROIDAL 15VA TH |
2,036 |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 2.142A, Series 1.071A | Dual | Dual | No | 15VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 26.30mm | 4000Vrms | 0.578 lb (262.18 g) |
|
|
70061KPWR XFMR TOROIDAL 25VA TH |
4,187 |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 2.754A, Series 1.377A | Dual | Dual | No | 25VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 37.50mm | 4000Vrms | 0.856 lb (388.28 g) |
|
|
62051PWR XFMR TOROIDAL 15VA CHAS MT |
1,699 |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 1.66A, Series 833mA | Dual | Dual | No | 15VA | Chassis Mount | Wire Leads | - | 24.00mm | 4000Vrms | 0.578 lb (262.18 g) |
