Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M4L-1-4PWR XFMR LAMINATED 450VA CHAS MT |
3,906 |
|
Datasheet | M4L | Box | Active | Laminated Core | 125V, 115V, 105V | 115V | 3.9A | Single, Multiple Taps | Single | No | 450VA | Chassis Mount | Terminal Block | 113.28mm L x 110.00mm W | 114.30mm | 4000Vrms | 11 lbs (5 kg) |
|
|
M4L-2-4PWR XFMR LAMINATED 450VA CHAS MT |
2,732 |
|
Datasheet | M4L | Box | Active | Laminated Core | 250V, 230V, 210V | 115V | 3.9A | Single, Multiple Taps | Single | No | 450VA | Chassis Mount | Terminal Block | 113.28mm L x 110.00mm W | 114.30mm | 4000Vrms | 11 lbs (5 kg) |
|
68-6PWR XFMR LAMINATED 408VA CHAS MT |
1,147 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 34V, Series 68V | Parallel 12A, Series 6A | Single, Multiple Taps | Dual | Yes | 408VA | Chassis Mount | Solder, Quick Connect | 133.40mm L x 127.00mm W | 111.10mm | 1500Vrms | 15 lbs (6.8 kg) |
|
|
M4L-3-10-48M4L 1000VA WITH INPUT 100/115/20 |
4,822 |
|
Datasheet | M4L | Tray | Active | - | 115V, 100V | 48V | 20.83A | Dual, Multiple Taps | Single | No | 1000VA | Chassis Mount | Terminal Block | 144.78mm L x 124.21mm W | 133.35mm | 4000V | - |
|
|
M4L-3-10-40M4L 1000VA WITH INPUT 100/115/20 |
1,733 |
|
Datasheet | M4L | Tray | Active | - | 115V, 100V | 40V | 25A | Dual, Multiple Taps | Single | No | 1000VA | Chassis Mount | Terminal Block | 144.78mm L x 124.21mm W | 133.35mm | 4000V | - |
|
|
BH-0150BINDUSTRIAL CONTROL TRANSFORMER |
4,587 |
|
Datasheet | BH | Bulk | Active | - | 220V, 230V, 240V, 440V, 460V, 480V | 120V, 115V, 110V | - | Dual | Single | No | 150VA | Chassis Mount | Terminal Block | 139.70mm L x 95.25mm W | 96.84mm | - | - |
|
|
M4L-3-10-28M4L 1000VA WITH INPUT 100/15/200 |
3,995 |
|
Datasheet | M4L | Tray | Active | - | 115V, 100V | 28V | 35.7A | Dual, Multiple Taps | Single | No | 1000VA | Chassis Mount | Terminal Block | 144.78mm L x 124.21mm W | 133.35mm | 4000V | - |
|

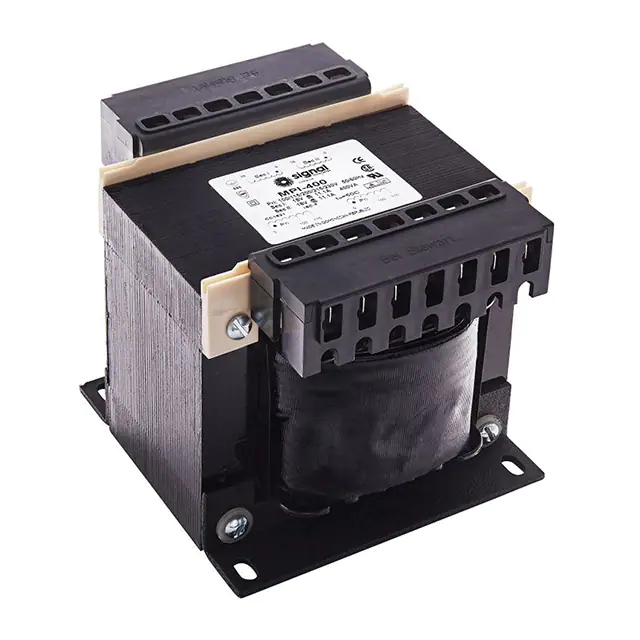

MPI-400-36PWR XFMR LAMINATED 400VA CHAS MT |
4,817 |
|
Datasheet | MPI | Bulk | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 18V, Series 36V | Parallel 22.2A, Series 11.1A | Dual, Multiple Taps | Dual | No | 400VA | Chassis Mount | Terminal Block | 104.80mm L x 128.10mm W | 98.20mm | 4000Vrms | 9.9 lbs (4.5 kg) |
|
|
MPI-400-40PWR XFMR LAMINATED 400VA CHAS MT |
3,100 |
|
Datasheet | MPI | Bulk | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 20V, Series 40V | Parallel 20A, Series 10A | Dual, Multiple Taps | Dual | No | 400VA | Chassis Mount | Terminal Block | 104.80mm L x 128.10mm W | 98.20mm | 4000Vrms | 9.9 lbs (4.5 kg) |
|
|
M4L-3-10-115M4L 1000VA WITH INPUT 100/115/20 |
3,571 |
|
Datasheet | M4L | Tray | Active | - | 115V, 100V | Parallel 115V, Series 230V | Parallel 8.7A, Series 4.35A | Dual, Multiple Taps | Dual | No | 1000VA | Chassis Mount | Terminal Block | 144.78mm L x 124.21mm W | 133.35mm | 4000V | - |
