Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO-140-24PWR XFMR LAMINATED 140VA CHAS MT |
2,603 |
|
Datasheet | EcoTran | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 11.6A, Series 5.8A | Dual | Dual | No | 140VA | Chassis Mount | Terminal Block | 90.00mm L x 106.00mm W | 106.00mm | 4000Vrms | - |
|
|
ECO-140-40PWR XFMR LAMINATED 140VA CHAS MT |
3,529 |
|
Datasheet | EcoTran | Box | Active | Laminated Core | 115V, 230V | Parallel 20V, Series 40V | Parallel 7A, Series 3.5A | Dual | Dual | No | 140VA | Chassis Mount | Terminal Block | 90.00mm L x 106.00mm W | 106.00mm | 4000Vrms | - |
|

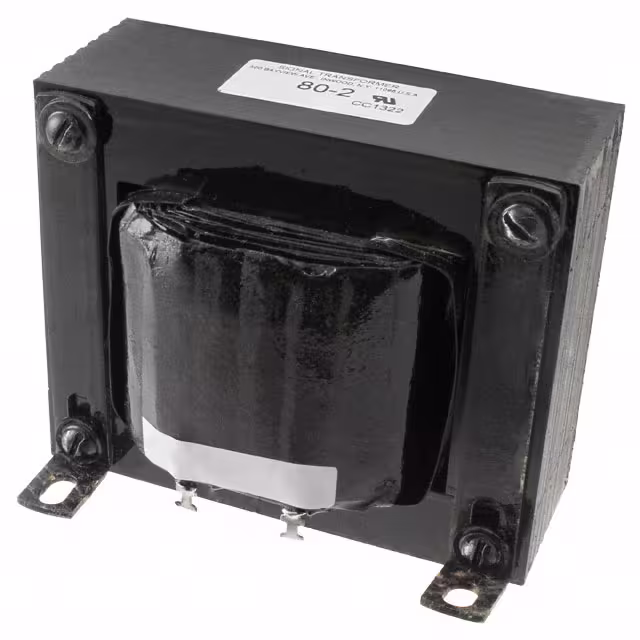

80-2PWR XFMR LAMINATED 160VA CHAS MT |
4,599 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 40V, Series 80V | Parallel 4A, Series 2A | Single, Multiple Taps | Dual | Yes | 160VA | Chassis Mount | Solder, Quick Connect | 104.80mm L x 85.70mm W | 87.30mm | 1500Vrms | 6.8 lbs (3.1 kg) |
|
68-2PWR XFMR LAMINATED 136VA CHAS MT |
3,560 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 34V, Series 68V | Parallel 4A, Series 2A | Single, Multiple Taps | Dual | Yes | 136VA | Chassis Mount | Solder, Quick Connect | 104.80mm L x 85.70mm W | 87.30mm | 1500Vrms | 6.8 lbs (3.1 kg) |
|
12.8-8PWR XFMR LAMINATED 102.4VA CHAS |
3,733 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 6.4V, Series 12.8V | Parallel 16A, Series 8A | Single, Multiple Taps | Single, Multiple Taps | Yes | 102.4VA | Chassis Mount | Solder, Quick Connect | 95.30mm L x 79.40mm W | 79.40mm | 1500Vrms | 4.5 lbs (2 kg) |
|
|
BH-0025BINDUSTRIAL CONTROL TRANSFORMER |
4,118 |
|
Datasheet | BH | Bulk | Active | - | 220V, 230V, 240V, 440V, 460V, 480V | 120V, 115V, 110V | - | Dual | Single | No | 25VA | Chassis Mount | Terminal Block | 77.79mm L x 76.20mm W | 80.96mm | - | - |
|
|
10-8PWR XFMR LAMINATED 80VA CHAS MT |
2,327 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 5V, Series 10V | Parallel 16A, Series 8A | Single, Multiple Taps | Single, Multiple Taps | Yes | 80VA | Chassis Mount | Solder, Quick Connect | 85.70mm L x 79.40mm W | 71.40mm | 1500Vrms | 4.1 lbs (1.9 kg) |
|
|
M4L-3-4-32M4L 450VA WITH INPUT 100/115/200 |
4,499 |
|
Datasheet | M4L | Tray | Active | - | 115V, 100V | Parallel 16V, Series 32V | Parallel 28A, Series 14A | Dual, Multiple Taps | Dual | No | 450VA | Chassis Mount | Terminal Block | 113.28mm L x 109.98mm W | 114.30mm | 4000V | - |
|
|
ECO-170-48PWR XFMR LAMINATED 170VA CHAS MT |
4,158 |
|
Datasheet | EcoTran | Box | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 7A, Series 3.5A | Dual | Dual | No | 170VA | Chassis Mount | Terminal Block | 90.00mm L x 106.00mm W | 116.00mm | 4000Vrms | - |
|
|
ECO-170-40PWR XFMR LAMINATED 170VA CHAS MT |
2,293 |
|
Datasheet | EcoTran | Box | Active | Laminated Core | 115V, 230V | Parallel 20V, Series 40V | Parallel 8.4A, Series 4.2A | Dual | Dual | No | 170VA | Chassis Mount | Terminal Block | 90.00mm L x 106.00mm W | 116.00mm | 4000Vrms | - |
