Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10-1200-LPIPWR XFMR SEMI-TORO 12VA TH |
1,270 |
|
Datasheet | LPI | Box | Active | Semi-Toroidal | 115V, 230V | Parallel 5V, Series 10V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 12VA | Through Hole | PC Pin | 66.80mm L x 55.60mm W | 26.60mm | 4000Vrms | 0.75 lb (340.19 g) |
|
|
24-500-LPIPWR XFMR SEMI-TORO 12VA TH |
4,871 |
|
Datasheet | LPI | Box | Active | Semi-Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 1A, Series 500mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 66.80mm L x 55.60mm W | 26.60mm | 4000Vrms | 0.75 lb (340.19 g) |
|

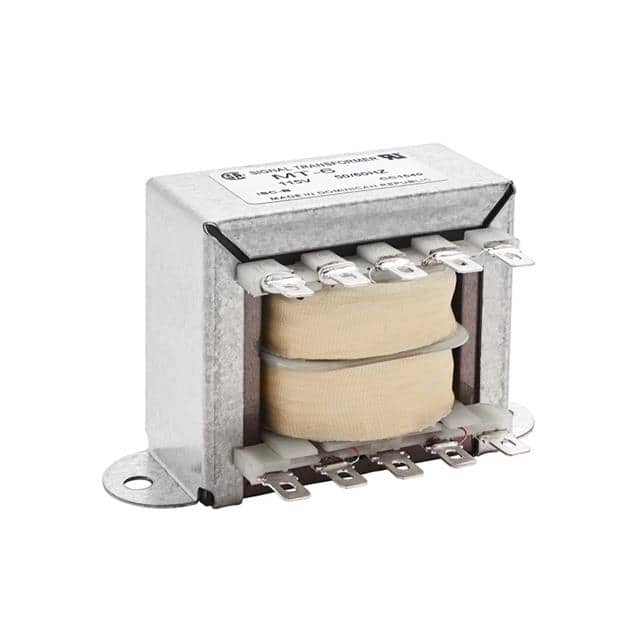

MT-7-15PWR XFMR LAMINATED 7VA CHAS MT |
3,152 |
|
Datasheet | MT | Bulk | Active | Laminated Core | 115V | 5V, 15V | 2.8A, 280mA | Single | Dual | Yes | 7VA | Chassis Mount | Solder, Quick Connect | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms | 1.7 lbs (771.1 g) |
|
|
MT-7-12PWR XFMR LAMINATED 7VA CHAS MT |
2,999 |
|
Datasheet | MT | Bulk | Active | Laminated Core | 115V | 5V, 12V | 2.8A, 350mA | Single | Dual | Yes | 7VA | Chassis Mount | Solder, Quick Connect | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms | 1.7 lbs (771.1 g) |
|
LP-56-425PWR XFMR SEMI-TORO 24VA TH |
4,857 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 28V, Series 56V | Parallel 850mA, Series 425mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.90mm L x 57.20mm W | 31.80mm | 1500Vrms | 0.938 lb (425.47 g) |
|
CL2-50-12PWR XFMR LAMINATED 50VA TH |
1,204 |
|
Datasheet | CL2 | Bulk | Active | Laminated Core | 115V, 230V | 12V | 4.2A | Dual | Single | No | 50VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.00mm | 4000Vrms | 1.7 lbs (771.1 g) |
|
|
LP-10-4800PWR XFMR SEMI-TORO 48VA TH |
3,638 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 5V, Series 10V | Parallel 9.6A, Series 4.8A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 79.20mm L x 63.50mm W | 34.90mm | 1500Vrms | 1.4 lbs (635 g) |
|
|
LP-16-3000PWR XFMR SEMI-TORO 48VA TH |
1,841 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 8V, Series 16V | Parallel 6A, Series 3A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 79.20mm L x 63.50mm W | 34.90mm | 1500Vrms | 1.4 lbs (635 g) |
|
|
LP-56-850PWR XFMR SEMI-TORO 48VA TH |
1,289 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 28V, Series 56V | Parallel 1.7A, Series 850mA | Dual | Dual | No | 48VA | Through Hole | PC Pin | 79.20mm L x 63.50mm W | 34.90mm | 1500Vrms | 1.4 lbs (635 g) |
|
34-75-LPIPWR XFMR SEMI-TORO 2.5VA TH |
1,897 |
|
Datasheet | LPI | Box | Active | Semi-Toroidal | 115V, 230V | Parallel 17V, Series 34V | Parallel 150mA, Series 75mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 60.20mm L x 42.10mm W | 18.30mm | 4000Vrms | 0.27 lb (122.47 g) |
