Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
14A-20-36PWR XFMR LAMINATED 20VA TH |
718 |
|
Datasheet | One-4-All™ | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.12A, Series 560mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 41.30mm | 4000Vrms | 0.9 lb (408.23 g) |
|
LP-34-170PWR XFMR SEMI-TORO 6VA TH |
380 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 17V, Series 34V | Parallel 340mA, Series 170mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.50mm L x 39.60mm W | 21.60mm | 1500Vrms | 0.438 lb (198.67 g) |
|
DST-6-24PWR XFMR LAMINATED 20VA TH |
511 |
|
Datasheet | DST | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 1.6A, Series 800mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 36.90mm | 2500Vrms | 0.8 lb (362.87 g) |
|

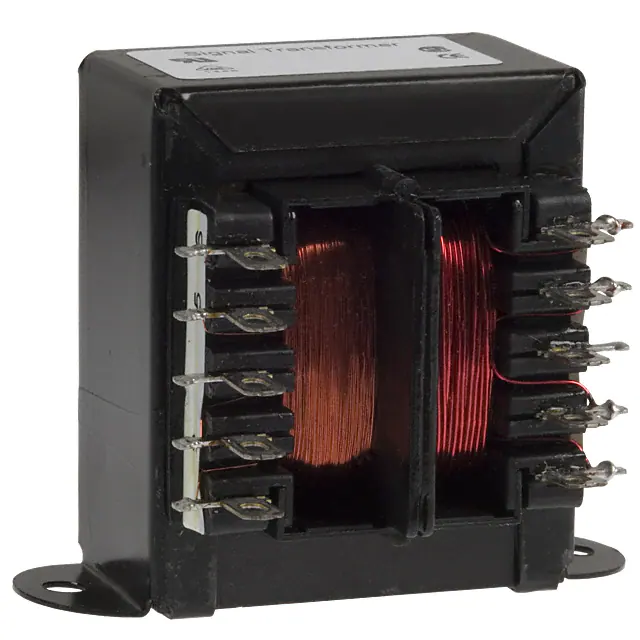

A41-25-10PWR XFMR LAMINATED 25VA CHAS MT |
340 |
|
Datasheet | All-4-One™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 5A, Series 2.5A | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 54.40mm W | 58.70mm | 4000Vrms | 1.3 lbs (589.7 g) |
|

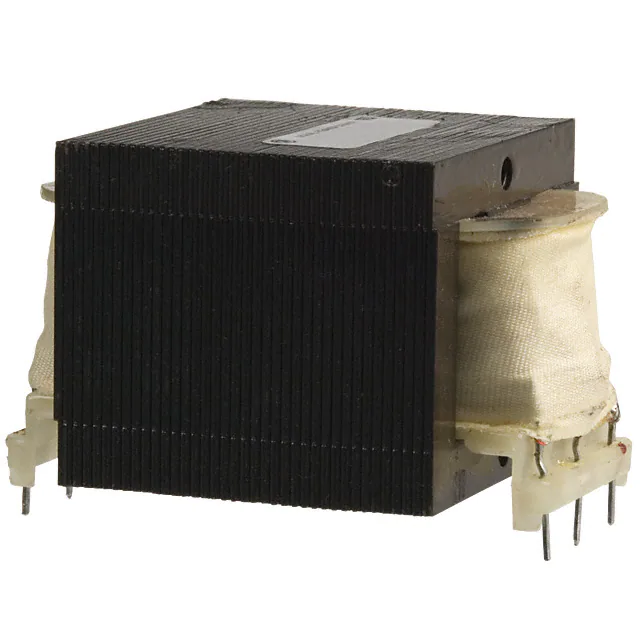

PC-24-1000PWR XFMR LAMINATED 24VA TH |
182 |
|
Datasheet | PC | Box | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Single | Dual | No | 24VA | Through Hole | PC Pin | 41.30mm L x 57.20mm W | 34.93mm | 1500Vrms | 0.75 lb (340.19 g) |
|
|
LP-24-2000PWR XFMR SEMI-TORO 48VA TH |
380 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 4A, Series 2A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 79.20mm L x 63.50mm W | 34.90mm | 1500Vrms | 1.4 lbs (635 g) |
|
|
LP-24-500PWR XFMR SEMI-TORO 12VA TH |
1,040 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 1A, Series 500mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 27.10mm | 1500Vrms | 0.688 lb (312.07 g) |
|
|
LP-40-300PWR XFMR SEMI-TORO 12VA TH |
500 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 20V, Series 40V | Parallel 600mA, Series 300mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 27.10mm | 1500Vrms | 0.688 lb (312.07 g) |
|
IF-2-10PWR XFMR SEMI-TORO 2VA TH |
575 |
|
Datasheet | IF | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 5V, Series 10V | Parallel 400mA, Series 200mA | Dual | Dual | No | 2VA | Through Hole | PC Pin | 53.00mm L x 44.00mm W | 17.60mm | 4000Vrms | 0.29 lb (131.54 g) |
|
|
14A-30-20PWR XFMR LAMINATED 30VA TH |
364 |
|
Datasheet | One-4-All™ | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 3A, Series 1.5A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.70mm L x 55.50mm W | 39.70mm | 4000Vrms | 1.2 lbs (544.3 g) |
