Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

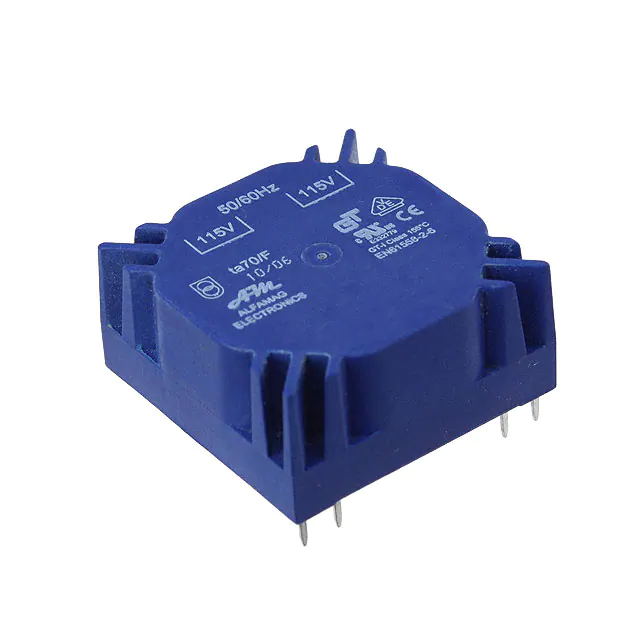

L01-6362PWR XFMR TOROIDAL 25VA TH |
277 |
|
Datasheet | L01 | Tray | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 2.082A, Series 1.041A | Dual | Dual | No | 25VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 37.50mm | 4000Vrms | 0.959 lb (435 g) |
|
|
L01-6301PWR XFMR TOROIDAL 1.6VA TH |
129 |
|
Datasheet | L01 | Tray | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 178mA, Series 89mA | Dual | Dual | No | 1.6VA | Through Hole | PC Pin | 39.60mm L x 39.60mm W | 18.50mm | 4000Vrms | 0.177 lb (80.29 g) |
|
|
L01-6352PWR XFMR TOROIDAL 15VA TH |
283 |
|
Datasheet | L01 | Tray | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 1.25A, Series 625mA | Dual | Dual | No | 15VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 26.30mm | 4000Vrms | 0.671 lb (304.36 g) |
|
|
L01-6345PWR XFMR TOROIDAL 10VA TH |
2,233 |
|
Datasheet | L01 | Tray | Active | Toroidal | 115V, 230V | Parallel 22V, Series 44V | Parallel 454mA, Series 227mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 55.00mm L x 55.00mm W | 26.00mm | 4000Vrms | 0.556 lb (252.2 g) |
|
MED2000PWR XFMR TOROIDAL 2000VA CHAS MT |
2,735 |
|
Datasheet | - | Bulk | Active | Toroidal | 100V, 120V | Parallel 120V, Series 240V | Parallel 16.67A, Series 8.33A | Dual, Multiple Taps | Dual | No | 2000VA | Chassis Mount | Wire Leads | - | 101.60mm | - | 32 lbs (14.5 kg) |
|
|
L01-6332PWR XFMR TOROIDAL 7VA TH |
3,095 |
|
Datasheet | L01 | Tray | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 584mA, Series 292mA | Dual | Dual | No | 7VA | Through Hole | PC Pin | 49.70mm L x 49.70mm W | 23.10mm | 4000Vrms | 0.384 lb (174.18 g) |
|
|
L01-6354PWR XFMR TOROIDAL 15VA TH |
2,630 |
|
Datasheet | L01 | Tray | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 834mA, Series 417mA | Dual | Dual | No | 15VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 26.30mm | 4000Vrms | 0.671 lb (304.36 g) |
|
|
L01-6353PWR XFMR TOROIDAL 15VA TH |
3,942 |
|
Datasheet | L01 | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 1A, Series 500mA | Dual | Dual | No | 15VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 26.30mm | 4000Vrms | 0.671 lb (304.36 g) |
|
|
L01-6364PWR XFMR TOROIDAL 25VA TH |
1,914 |
|
Datasheet | L01 | Tray | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.388A, Series 694mA | Dual | Dual | No | 25VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 37.50mm | 4000Vrms | 0.959 lb (435 g) |
|
|
L01-6363PWR XFMR TOROIDAL 25VA TH |
1,487 |
|
Datasheet | L01 | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 1.664A, Series 832mA | Dual | Dual | No | 25VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 37.50mm | 4000Vrms | 0.959 lb (435 g) |
