Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
260A6PWR XFMR CHAS MT |
1,558 |
|
Datasheet | 260 | Bulk | Active | - | - | - | - | - | - | - | - | Chassis Mount | - | - | - | - | 0.21 lb (95.25 g) |
|
261D6PWR XFMR LAMINATED CHAS MT |
3,280 |
|

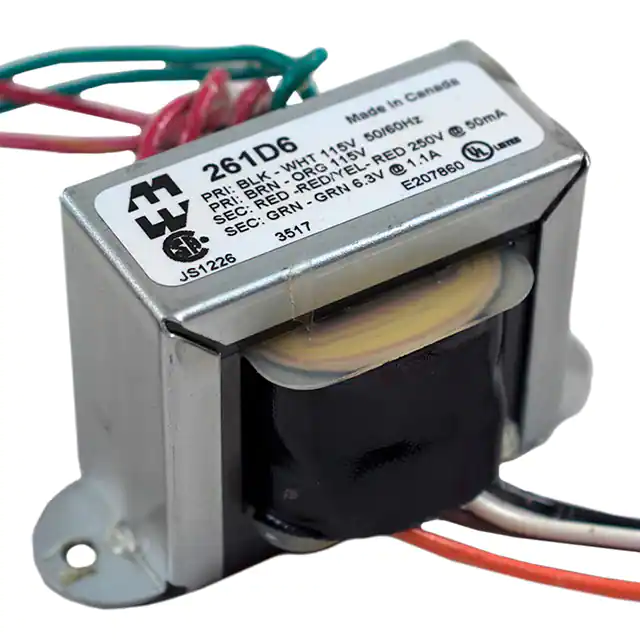

Datasheet | 261 | Bulk | Active | Laminated Core | 115V | - | 1.1A | Dual | Dual | Yes | - | Chassis Mount | Wire Leads | - | - | - | - |
|
167R6PWR XFMR LAMINATED 50.4VA CHAS |
3,112 |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 6.3V | 8A | Single | Single | Yes | 50.4VA | Chassis Mount | Wire Leads | 55.63mm L x 66.80mm W | 66.80mm | 2000Vrms | 1.9 lbs (861.8 g) |
|
166S6PWR XFMR LAMINATED 63VA CHAS MT |
1,276 |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 6.3V | 10A | Single | Single | Yes | 63VA | Chassis Mount | Wire Leads | 102.36mm L x 57.15mm W | 66.80mm | 2000Vrms | 2.5 lbs (1.1 kg) |
|
266J36PWR XFMR LAMINATED 36VA CHAS MT |
4,720 |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 18V, Series 36V | Parallel 2A, Series 1A | Dual | Dual | No | 36VA | Chassis Mount | Wire Leads | 93.73mm L x 50.04mm W | 58.67mm | 2000Vrms | 1.8 lbs (816.5 g) |
|
|
166R10PWR XFMR LAMINATED 80VA CHAS MT |
1,266 |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 10V | 8A | Single | Single | Yes | 80VA | Chassis Mount | Wire Leads | 102.36mm L x 63.50mm W | 66.80mm | 2000Vrms | 3 lbs (1.4 kg) |
|
1182K30PWR XFMR TOROIDAL 80VA CHAS MT |
3,170 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 30V, Series 60V | Parallel 2.66A, Series 1.33A | Dual | Dual | No | 80VA | Chassis Mount | Wire Leads | 88.90mm Dia | 38.10mm | 4000Vrms | 2.1 lbs (952.5 g) |
|
|
167M18PWR XFMR LAMINATED 54VA CHAS MT |
3,054 |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 18V | 3A | Single | Single | Yes | 54VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms | 2.4 lbs (1.1 kg) |
|
261E6PWR XFMR LAMINATED 29VA CHAS MT |
4,761 |
|
Datasheet | 261 | Bulk | Active | Laminated Core | 115V | 250V, 6.3V | 91mA, 1A | Single | Dual | Yes | 29VA | Chassis Mount | Wire Leads | 93.73mm L x 46.99mm W | 58.67mm | - | 1.7 lbs (771.1 g) |
|
|
166L42PWR XFMR LAMINATED 84VA CHAS MT |
1,643 |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 42V | 2A | Single | Single | Yes | 84VA | Chassis Mount | Wire Leads | 102.36mm L x 63.50mm W | 66.80mm | 2000Vrms | 2.9 lbs (1.3 kg) |
