Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
164J120PWR XFMR LAMINATED 36VA TH |
3,882 |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 60V, Series 120V | Parallel 600mA, Series 300mA | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
164J36PWR XFMR LAMINATED 36VA TH |
4,173 |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 2A, Series 1A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
164J24PWR XFMR LAMINATED 36VA TH |
1,232 |
|
Datasheet | 164 | Bulk | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 3A, Series 1.5A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
PWDI13161PWR XFMR CHAS MT |
2,405 |
|
Datasheet | PWDAHL | Box | Active | - | 600V | - | 120mA | Single | - | - | - | Chassis Mount | Wire Leads | 73.03mm L x 46.23mm W | 2.370" (60.20mm) | - | - |
|

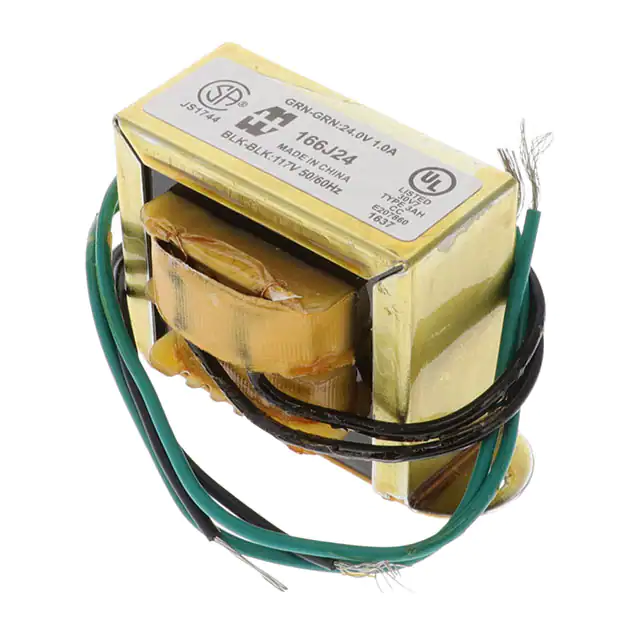

166J24PWR XFMR LAMINATED 24VA CHAS MT |
4,399 |
|
Datasheet | 166 | Box | Active | Laminated Core | 117V | 24V | 1A | Single | Single | Yes | 24VA | Chassis Mount | Wire Leads | 82.55mm L x 50.80mm W | 50.80mm | 2000Vrms | 1.4 lbs (635 g) |
|
166M2PWR XFMR LAMINATED 7.5VA CHAS MT |
1,625 |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 2.5V | 3A | Single | Single | Yes | 7.5VA | Chassis Mount | Wire Leads | 71.37mm L x 38.10mm W | 42.93mm | 2000Vrms | 0.7 lb (317.51 g) |
|
266K18PWR XFMR LAMINATED 27VA CHAS MT |
3,763 |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 9V, Series 18V | Parallel 3A, Series 1.5A | Dual | Dual | No | 27VA | Chassis Mount | Wire Leads | 93.73mm L x 50.04mm W | 58.67mm | 2000Vrms | 1.6 lbs (725.7 g) |
|
|
266J24PWR XFMR LAMINATED 24VA CHAS MT |
4,642 |
|
Datasheet | 266 | Bulk | Active | Laminated Core | 117V, 234V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Dual | Dual | No | 24VA | Chassis Mount | Wire Leads | 79.50mm L x 50.80mm W | 69.85mm | 2000Vrms | 1.6 lbs (725.7 g) |
|
187E24PWR XFMR LAMINATED 57.6VA CHAS |
2,515 |
|
Datasheet | 187 | Box | Active | Laminated Core | 115V | 24V | 2.4A | Single | Single | Yes | 57.6VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 55.50mm W | 57.15mm | 2000Vrms | 1.7 lbs (771.1 g) |
|
162J36PWR XFMR LAMINATED 36VA TH |
4,619 |
|
Datasheet | 162 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 2A, Series 1A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
