DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PKB4211DPIDC DC CONVERTER 5V 200W |
230 |
|
Datasheet | PKB4000D (200W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 40A | 200 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 95.3% | - | - | Through Hole | Eighth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
PKE8410APIDC DC CONVERTER 3.3V 30W |
782 |
|
Datasheet | PKE 8000A (40W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 75V | 3.3V | - | - | - | 9.1A | 30 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 115°C (With Derating) | 87% | - | - | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
PKE3310PIDC DC CONVERTER 3.3V 23W |
748 |
|
Datasheet | PKE 3000 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 7A | 23 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 110°C (With Derating) | 88% | - | - | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PKE8413APIDC DC CONVERTER 12V 40W |
195 |
|
Datasheet | PKE 8000A (40W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 75V | 12V | - | - | - | 3.3A | 40 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 115°C (With Derating) | 91% | - | - | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
BMR6841100/00136-75V IN: 50V OUT; 14A 700W; IS |
1,853 |
|
Datasheet | BMR684 (700W) | Quarter Brick | Tray | Active | Isolated Module, Digital | 1 | 36V | 75V | 50V | - | - | - | 14A | 700 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Baseplate, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 85°C | 95.8% | - | - | Through Hole | Quarter Brick | - | UL | - |
|

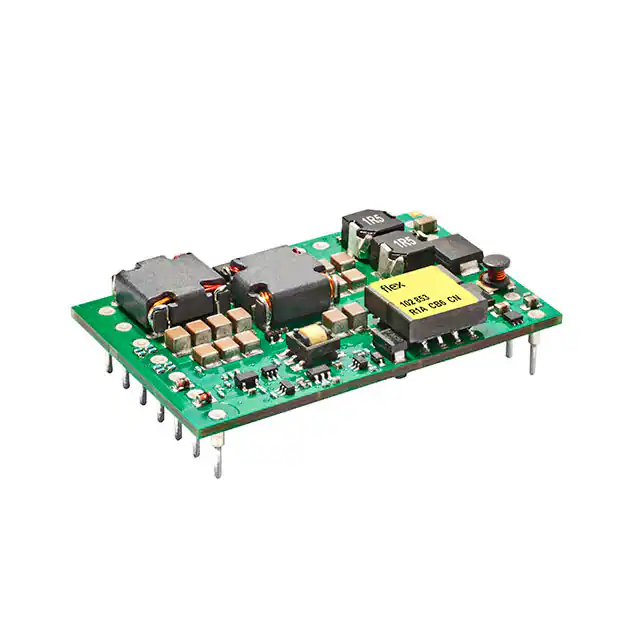

PIM4328PDADC DC CONVERTER 3.3V 5V 58W |
255 |
|
Datasheet | PIM 4328 (540-648) | Quarter Brick | Tray | Active | Isolated Module | 2 | 36V | 75V | 3.3V | 5V | - | - | 12A, 3.6A | 58 W | 2.25 kV | ITE (Commercial) | Adjustable Output, PMBus™ | -40°C ~ 110°C (With Derating) | 98.80% | - | - | Through Hole | Quarter Brick | - | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PKM4516ADPIHSLADC DC CONVERTER 28V 504W |
237 |
|
Datasheet | PKM4516AD (504W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 28V | - | - | - | 18A | 504 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, HeatSink, PMBus™, Remote On/Off | -40°C ~ 100°C (With Derating) | 95.5% | - | - | Through Hole | Quarter Brick | Enable, Active High | cURus, IEC, UL | 62368-1 |
|
PKM4613NHPIHSDC DC CONVERTER 12V 600W |
126 |
|
Datasheet | PKM4000NH (600W) | Quarter Brick | Tray | Active | Intermediate Bus Converter | 1 | 36V | 75V | 12V | - | - | - | 50A | 600 W | 2.25 kV | ITE (Commercial) | Baseplate, Remote On/Off | -40°C ~ 125°C (With Derating) | 96.5% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
BMR4910202/85340-60VIN: 12VOUT: 1300W; ISOLATE |
2,715 |
|
Datasheet | BMR491 (1300W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 40V | 60V | 12.1V | - | - | - | 108.3A | 1.3 kW | 1.5 kV | ITE (Commercial) | Adjustable Output, Baseplate, Heat Sink, I2C Interface, PMBus™, Remote On/Off, Standby Output | -40°C ~ 125°C | 97.2% | - | - | Through Hole | Quarter Brick | Enable, Active Low | - | 60950-1 |
|
|
BMR4920300/86440-60VIN; 12VOUT; 800W;1100W PEA |
1,033 |
|
Datasheet | BMR492 (600W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 40V | 60V | 9.5 ~ 12V | - | - | - | 92A | 1.104 kW | 1.5 kV | ITE (Commercial) | Baseplate, Heat Sink, I2C Interface, PMBus™, Remote On/Off, Standby Output | -40°C ~ 125°C (With Derating) | 97.3% | - | - | Through Hole | Eighth Brick | Enable, Active Low | cURus, UL | 60950-1; 62368-1 |
