DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PKM7113APIPLHSDC DC CONVERTER 12V 100W |
3,641 |
|
Datasheet | PKM 7000A (150W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 66V | 160V | 12V | - | - | - | 8.3A | 100 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 90% | - | - | Through Hole | Quarter Brick | Enable, Active High | CB, CSA, EN, IEC, TUV, UL | 50155; 62368-1 |
|
PKM4817NHPIHSDC DC CONVERTER 10.8V 864W |
2,690 |
|
Datasheet | PKM4000NH (864W) | Quarter Brick | Tray | Active | Intermediate Bus Converter | 1 | 40V | 60V | 10.8V | - | - | - | 80A | 864 W | 2.25 kV | ITE (Commercial) | Baseplate, Remote On/Off | -40°C ~ 125°C (With Derating) | 96.9% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
PKM7111APIPLHSDC DC CONVERTER 5V 100W |
2,404 |
|
Datasheet | PKM 7000A (150W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 66V | 160V | 5V | - | - | - | 20A | 100 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 87% | - | - | Through Hole | Quarter Brick | Enable, Active High | CB, CSA, EN, IEC, TUV, UL | 50155; 62368-1 |
|
PKJ7215WPI14160 VIN; 13.516.5 VOUT; 200 W; |
2,058 |
|
Datasheet | PKJ 7200W | Half Brick | Tray | Active | Isolated Module | 1 | 14V | 160V | 15V | - | - | - | 13.33A | 200 W | 4 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 115°C (With Derating) | 90% | - | - | Through Hole | Half Brick | Enable, Active Low | cURus, UL | 62368-1 |
|
|
PKM7216ZAPIPLHSDC DC CONVERTER 24V 150W |
2,169 |
|
Datasheet | PKM 7000A (150W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 66V | 160V | 24V | - | - | - | 6.25A | 150 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 88% | - | - | Through Hole | Quarter Brick | Enable, Active High | CB, CSA, EN, IEC, TUV, UL | 50155; 62368-1 |
|

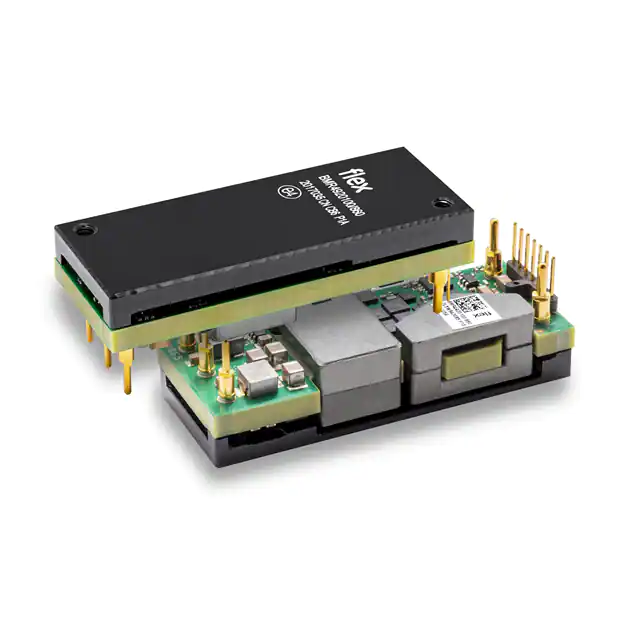

BMR4920304/86140-60VIN; 8-13.2VOUT; 600W; ISOL |
3,437 |
|
Datasheet | BMR492 (600W) | Eighth Brick | Tray | Active | Isolated Module, Digital | 1 | 40V | 60V | 12V | - | - | - | 50A | 600 W | 1.5 kV | ITE (Commercial) | Baseplate, Heat Sink, I2C Interface, PMBus™, Remote On/Off, Standby Output | -40°C ~ 125°C (With Derating) | 96.80% | - | - | Through Hole | Eighth Brick | Enable, Active Floating | cURus, UL | 62368-1 |
|
|
PKM7213APIPHSDC DC CONVERTER 12V 150W |
1,571 |
|
Datasheet | PKM 7000A (150W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 66V | 160V | 12V | - | - | - | 12.5A | 150 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 89% | - | - | Through Hole | Quarter Brick | Enable, Active High | CB, CSA, EN, IEC, TUV, UL | 50155; 62368-1 |
|
BMR4580002/014DC DC CONVERTER 12.45V 623W |
3,359 |
|
Datasheet | BMR458 (600W) | Quarter Brick | Tray | Active | Intermediate Bus Converter, Digital | 1 | 36V | 75V | 12.45V | - | - | - | 50A | 623 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Load Sharing, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 96.4% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
BMR4800106/005DC DC CONVERTER 12V 1300W |
2,905 |
|
Datasheet | BMR480 (1300W) | Quarter Brick | Tray | Active | Intermediate Bus Converter, Digital | 1 | 45V | 60V | 12V | - | - | - | 108.3A | 1300 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 125°C (With Derating) | 97.4% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
BMR4800100/001DC DC CONVERTER 10.4V 1000W |
4,657 |
|
Datasheet | BMR480 (1000W) | Quarter Brick | Tray | Active | Intermediate Bus Converter, Digital | 1 | 45V | 56V | 10.4V | - | - | - | 96.2A | 1000 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 125°C (With Derating) | 97.3% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
