DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

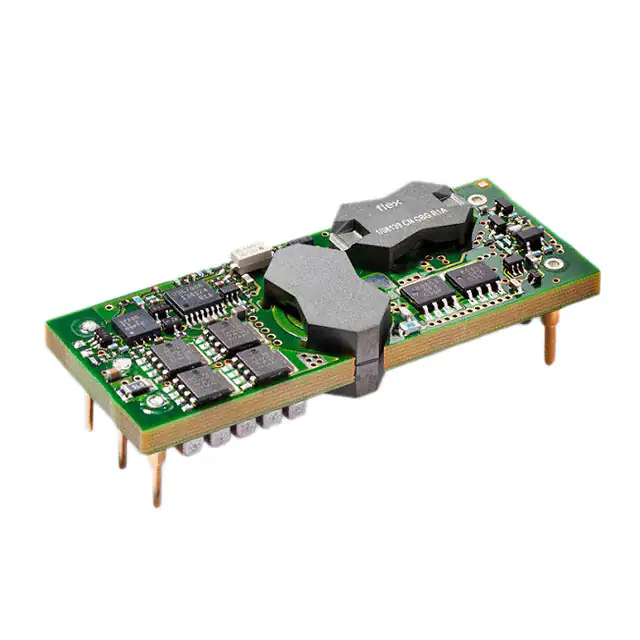

PKB4204PIHSDC DC CONVERTER 12V 240W |
4,871 |
|
Datasheet | PKB4204 (240W) | Eighth Brick | Tray | Active | Intermediate Bus Converter | 1 | 40V | 75V | 12V | - | - | - | 20A | 240 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -30°C ~ 90°C (With Derating) | 95.5% | - | - | Through Hole | Eighth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
BMR4560012/016DC DC CONVERTER 12V 468W |
3,016 |
|
Datasheet | BMR456 (468W) | Quarter Brick | Tray | Active | Isolated Module, Digital | 1 | 40V | 60V | 12V | - | - | - | 39A | 468 W | 2.25 kV | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 96.80% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PKB4111CPIDC DC CONVERTER 5V 140W |
116 |
|
Datasheet | PKB4000C (144W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 28A | 140 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 92% | - | - | Through Hole | Eighth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PKB4113CPIHSDC DC CONVERTER 12V 144W |
1,862 |
|
Datasheet | PKB4000C (144W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 12A | 144 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 93% | - | - | Through Hole | Eighth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
BMR4560006/013DC DC CONVERTER 12V 420W |
102 |
|
Datasheet | BMR456 (468W) | Quarter Brick | Tray | Active | Isolated Module, Digital | 1 | 36V | 75V | 12V | - | - | - | 35A | 420 W | 2.25 kV | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | - | - | - | Through Hole | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
BMR4560004/001DC DC CONVERTER 12V 420W |
3,434 |
|
Datasheet | BMR456 (468W) | Quarter Brick | Tray | Active | Isolated Module, Digital | 1 | 36V | 75V | 12V | - | - | - | 35A | 420 W | 2.25 kV | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 96.4% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
PKM4613ANHPISPDC DC CONVERTER 11.6V 580W |
2,373 |
|
Datasheet | PKM4000NH (580W) | Quarter Brick | Tray | Active | Intermediate Bus Converter | 1 | 36V | 75V | 11.6V | - | - | - | 50A | 580 W | 2.25 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 125°C (With Derating) | 96.4% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
BMR4560105/001DC DC CONVERTER 12V 420W |
3,120 |
|
Datasheet | BMR456 | Quarter Brick | Tray | Active | Isolated Module, Digital | 1 | 36V | 75V | 12V | - | - | - | 35A | 420 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 96.4% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
BMR4650010/001DC DC CONVERTER 0.6-1.8V 162W |
2,728 |
|
Datasheet | BMR465 (162W) | 26-DIP Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module, Digital | 1 | 7.5V | 14V | 0.6 ~ 1.8V | - | - | - | 90A | 162 W | - | ITE (Commercial) | Adjustable Output, PMBus™, Remote Sense | -40°C ~ 150°C (With Derating) | 94.3% | - | - | Through Hole | - | - | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PKM4613NHPISPDC DC CONVERTER 12V 600W |
2,988 |
|
Datasheet | PKM4000NH (600W) | Quarter Brick | Tray | Active | Intermediate Bus Converter | 1 | 36V | 75V | 12V | - | - | - | 50A | 600 W | 2.25 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 125°C (With Derating) | 96.5% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
