DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PQDE6W-Q110-S12-H-DDC DC CONVERTER 12V 6W |
4,822 |
|
Datasheet | PQDE6W-Q110 (6W) | 6-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 12V | - | - | - | 500mA | 6 W | 2.25 kV | ITE (Commercial) | Heat Sink | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | - | CE | - |
|
|
PQDE6W-Q110-S12-DDC DC CONVERTER 12V 6W |
2,250 |
|
Datasheet | PQDE6W-Q110 (6W) | 6-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 12V | - | - | - | 500mA | 6 W | 2.25 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | - | CE | - |
|

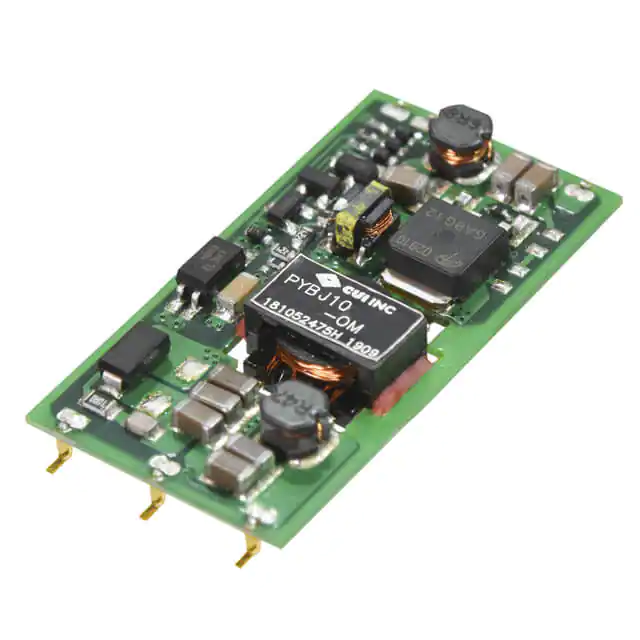

PYBJ10-Q24-S15-OMDC DC CONVERTER 15V 10W |
4,066 |
|
Datasheet | PYBJ10 (10W) | 6-SMD Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 667mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Surface Mount | - | - | CB Scheme, IEC, UL | 62368-1 |
|
V7803W-500DC DC CONVERTER 3.3V 1.65W |
2,230 |
|
Datasheet | V78W-500 | 3-SIP Module | Tube | Obsolete | Linear Regulator Replacement | 1 | 9V | 72V | 3.3V | - | - | - | 500mA | 1.65 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - |
|
PQQ6W-Q24-D12-SDC-DC ISOLATED, 6 W, 9~36 VDC IN |
4,433 |
|
Datasheet | PQQ6W-S (6W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | - | - | EN | 62368-1 |
|
V7809W-500RDC DC CONVERTER 9V 4.5W |
2,272 |
|
Datasheet | V78W-500 | 3-SIP Module | Tube | Obsolete | Linear Regulator Replacement | 1 | 14V | 72V | 9V | - | - | - | 500mA | 4.5 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 92% | - | - | Through Hole, Right Angle | - | - | - | - |
|
PRMC3-D24-D15-SDC DC CONVERTER +/-15V 3W |
3,817 |
|
Datasheet | PRMC3-S (3W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C | 83% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
PDQE10-Q24-S15-DDC DC CONVERTER 15V 10W |
3,029 |
|
Datasheet | PDQE10 (10W) | 6-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 667mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
P783-Q24-S15-SDC DC CONVERTER 15V 45W |
4,872 |
|
Datasheet | P783-S | 12-SIP Module | Tube | Not For New Designs | Non-Isolated PoL Module | 1 | 19V | 36V | 15V | - | - | - | 3A | 45 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 97% | - | - | Through Hole | - | - | CE | - |
|
|
PDQE10-Q24-D5-DDC DC CONVERTER +/-5V 10W |
1,298 |
|
Datasheet | PDQE10 (10W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 1A, 1A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
