DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRM1-24-D3-SDC-DC ISOLATED, 1W, 21.6~26.4 VD |
4,441 |
|
Datasheet | DRM1-S (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 3.3V | -3.3V | - | - | 152mA, 152mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 76% | - | - | Through Hole | - | - | cURus | 62368-1 |
|
|
DRM1-24-D15-SDC-DC ISOLATED, 1W, 21.6~26.4 VD |
1,203 |
|
Datasheet | DRM1-S (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 81% | - | - | Through Hole | - | - | cURus | 62368-1 |
|
|
DRM1-12-D15-SDC-DC ISOLATED, 1W, 10.8~13.2 VD |
3,690 |
|
Datasheet | DRM1-S (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 81% | - | - | Through Hole | - | - | cURus | 62368-1 |
Gull Wing15.2mm.jpg)
|
PQM1-S5-S3-MDC DC CONVERTER 3.3V 802MW |
3,089 |
|
- |
PQM1-M (1W) | 10-SMD Module, 6 Leads | Tube | Obsolete | Isolated Module | 1 | 4.75V | 5.25V | 3.3V | - | - | - | 243mA | 802 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 58% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
|
VQA-S15-S9-SIPDC DC CONVERTER 9V 1W |
1,495 |
|
Datasheet | VQA | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 14.5V | 15.5V | 9V | - | - | - | 111mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | CB Scheme, IEC | 60950-1 |
|

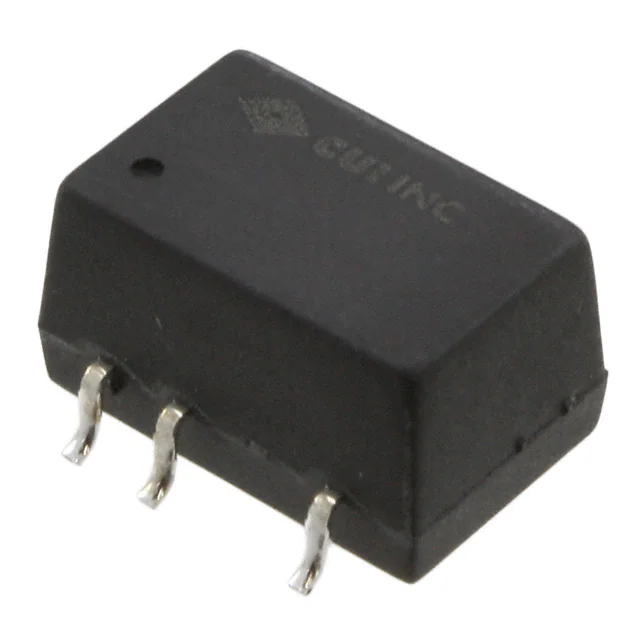

PES1-S15-S15-MDC DC CONVERTER 15V 1W |
1,211 |
|
Datasheet | PES1-M (1W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
|
|
VQA3S-S12-D18-SDC-DC ISOLATED, 2.1 W, 10.8~13.2 |
2,781 |
|
Datasheet | Artix® UltraScale+ | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 18V | -3V | - | - | 100mA, 100mA | - | 5.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | - | - | cURus | 62368-1 |
|
|
VQA3S-S12-DX15-SDC-DC ISOLATED, 2.28 W, 10.8~13. |
4,354 |
|
Datasheet | Artix® UltraScale+ | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 15V | -4V | - | - | 120mA, 120mA | - | 5.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | - | - | cURus | 62368-1 |
|
|
VQA3S-S15-D15-SDC-DC ISOLATED, 2.28 W, 13.5~16. |
4,427 |
|
Datasheet | Artix® UltraScale+ | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 13.5V | 16.5V | 15V | -4V | - | - | 120mA, 120mA | - | 5.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | - | - | cURus | 62368-1 |
|
|
VQA3S-S5-D18-SDC-DC ISOLATED, 1.72 W, 4.5~5.5 |
4,075 |
|
Datasheet | Artix® UltraScale+ | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 18V | -3.5V | - | - | 80mA, 80mA | - | 5.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | - | - | cURus | 62368-1 |
