DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCS1-S5-S5-SDC-DC ISOLATED, 1 W, 4.5-5.5 VDC |
4,876 |
|
- |
- | - | Tube | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
V78E12-500-SMT-TRDC DC CONVERTER 12V 6W |
4,572 |
|
Datasheet | V78E-500-SMT | 10-SMD Module, 8 Leads | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 15V | 36V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 94% | - | - | Surface Mount | - | - | - | - |
|
PDSE1-S12-S12-DDC-DC 3KV ISOLATED, 1 W, 10.8~13 |
2,906 |
|
Datasheet | PDSE1-D (1W) | 7-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 83mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | - | - | CE, cURus | 62368-1 |
|
PQS075-S24-S3-SDC-DC ISOLATED, 0.75 W, 22.8~25. |
4,162 |
|
Datasheet | PQS075-S (0.75W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 22.8V | 25.2V | 3.3V | - | - | - | 200mA | 660 mW | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 68% | - | - | Through Hole | - | - | CE | 62368-1 |
|
P78E05-1000DC DC CONVERTER 5V 5W |
1,081 |
|
Datasheet | P78E-1000 | 3-SIP Module | Tube | Not For New Designs | Non-Isolated PoL Module | 1 | 8V | 36V | 5V | - | - | - | 1A | 5 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | - | - | - | - |
|
P78E12-1000DC DC CONVERTER 12V 12W |
3,922 |
|
Datasheet | P78E-1000 | 3-SIP Module | Tube | Not For New Designs | Non-Isolated PoL Module | 1 | 16V | 36V | 12V | - | - | - | 1A | 12 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | - | - | - | - |
|

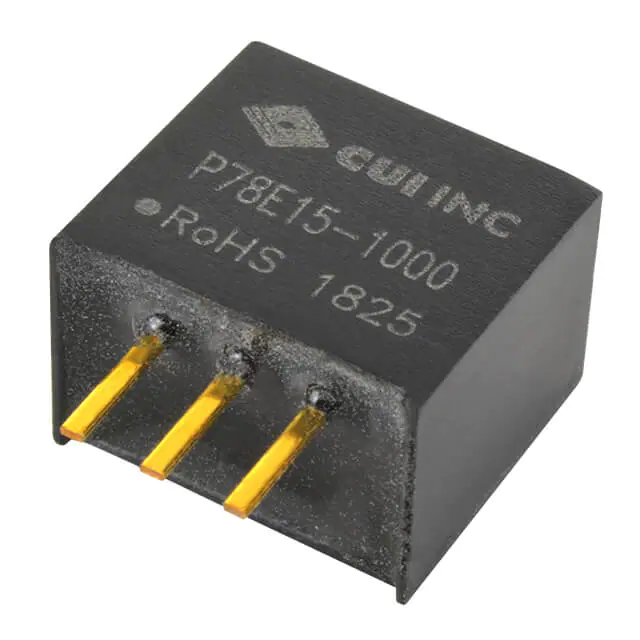

P78E15-1000DC DC CONVERTER 15V 15W |
1,263 |
|
Datasheet | P78E-1000 | 3-SIP Module | Tube | Not For New Designs | Non-Isolated PoL Module | 1 | 20V | 36V | 15V | - | - | - | 1A | 15 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | - | - | - | - |
|
PDSE1-S15-S5-M-TRDC-DC ISOLATED 1.5KV, 1 W, 13.5~ |
1,097 |
|
- |
PDSE1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | - | - | CE, cURus | 62368-1 |
|
PEME1-S5-D24-SDC DC CONVERTER +/-24V 1W |
1,759 |
|
Datasheet | PEME1-S (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 24V | -24V | - | - | 21mA, 21mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 62368-1 |
|
PDP1-S5-S5-MDC DC CONVERTER 5V 1W |
3,934 |
|
Datasheet | PDP1-M (1W) | 8-SMD Module | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 62368-1 |
