DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PXO7812-500-M-TRDC-DC NON-ISOLATED, 0.5 A, 15~36 |
1,344 |
|
Datasheet | PXO78-500-M | 4-SMD Module | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 15V | 36V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 94% | - | - | Surface Mount | - | - | - | - |
|
|
PXO7806-500-M-TRDC-DC NON-ISOLATED, 0.5 A, 8~36 |
890 |
|
Datasheet | PXO78-500-M | 4-SMD Module | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 8V | 36V | 6.5V | - | - | - | 500mA | 3.25 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 91% | - | - | Surface Mount | - | - | - | - |
|
|
PXO7815-500-M-TRDC-DC NON-ISOLATED, 0.5 A, 19~36 |
1,394 |
|
Datasheet | PXO78-500-M | 4-SMD Module | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 19V | 36V | 15V | - | - | - | 500mA | 7.5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 95% | - | - | Surface Mount | - | - | - | - |
|
PQS075-S5-S5-SDC DC CONVERTER 5V 750MW |
139 |
|
Datasheet | PQS075-S (0.75W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 5V | - | - | - | 150mA | 750 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 72% | - | - | Through Hole | - | - | CE | - |
|
PDSE1-S12-S5-SDC-DC 1.5KV ISOLATED, 1 W, 10.8~ |
131 |
|
Datasheet | PDSE1-S (1W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | - | - | CE, cURus | 62368-1 |
|

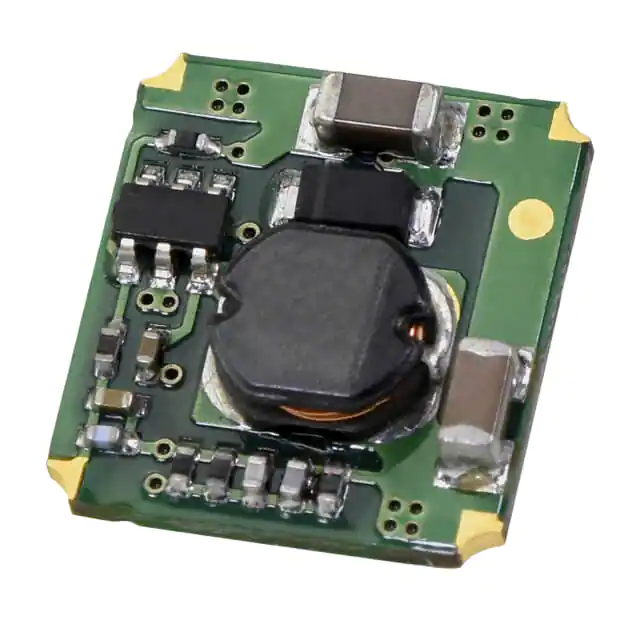

VXO78015-500-M-TRDC DC CONVERTER 15V 7.5W |
775 |
|
Datasheet | VXO78-500-M | 4-SMD Module | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 19V | 36V | 15V | - | - | - | 500mA | 7.5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 95% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
|
|
VXO7809-500-M-TRDC DC CONVERTER 9V 4.5W |
1,630 |
|
Datasheet | VXO78-500-M | 4-SMD Module | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 12V | 36V | 9V | - | - | - | 500mA | 4.5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
|
|
VXO7803-500-M-TRDC DC CONVERTER 3.3V 1.7W |
261 |
|
Datasheet | VXO78-500-M | 4-SMD Module | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 4.75V | 36V | 3.3V | - | - | - | 500mA | 1.7 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
|
PQS075-S12-S15-SDC-DC ISOLATED, 0.75 W, 11.4~12. |
301 |
|
Datasheet | PQS075-S (0.75W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 11.4V | 12.6V | 15V | - | - | - | 50mA | 750 mW | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 74% | - | - | Through Hole | - | - | CE | 62368-1 |
|
VX78012-500DC DC CONVERTER 12V 6W |
480 |
|
Datasheet | VX78-500 | 3-SIP Module | Tube | Not For New Designs | Linear Regulator Replacement | 1 | 15V | 36V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
