DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PYBE30-Q48-S15DC DC CONVERTER 15V 30W |
2,824 |
|
Datasheet | PYBE30 (30W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 80°C (With Derating) | 89% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
PYBE30-Q48-S5DC DC CONVERTER 5V 30W |
3,933 |
|
Datasheet | PYBE30 (30W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 80°C (With Derating) | 87% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
PYB10-Q24-D15DC DC CONVERTER +/-15V 10W |
2,269 |
|
Datasheet | PYB10 (10W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | - | Enable, Active High | EN | 55024 |
|
AE15B-UW-S12DC-DC ISOLATED, 15 W, 200~1500 V |
1,766 |
|
Datasheet | AE15B-UW (15W) | 5-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 200V | 1500V | 12V | - | - | - | 1.25A | 15 W | 5.6 kV | ITE (Commercial) | - | -40°C ~ 70°C (With Derating) | 71% | - | - | Through Hole | - | - | CE, EN, UKCA | - |
|
|
AE15B-UW-S15DC-DC ISOLATED, 15 W, 200~1500 V |
1,882 |
|
Datasheet | AE15B-UW (15W) | 5-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 200V | 1500V | 15V | - | - | - | 1A | 15 W | 5.6 kV | ITE (Commercial) | - | -40°C ~ 70°C (With Derating) | 80% | - | - | Through Hole | - | - | CE, EN, UKCA | - |
|
|
AE15B-UW-S5DC-DC ISOLATED, 15 W, 200~1500 V |
2,968 |
|
Datasheet | AE15B-UW (15W) | 5-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 200V | 1500V | 5V | - | - | - | 2A | 10 W | 5.6 kV | ITE (Commercial) | - | -40°C ~ 70°C (With Derating) | 64% | - | - | Through Hole | - | - | CE, EN, UKCA | - |
|
|
PRD15-Q48-S3-P-DDC DC CONVERTER 3.3V 15W |
1,934 |
|
Datasheet | PRD15 (15W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 5A | 15 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | - | Enable, Active High | - | - |
|

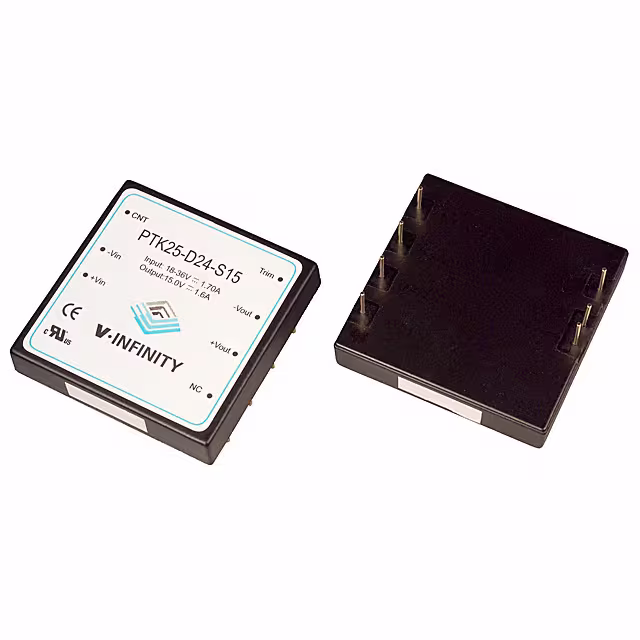

PTK25-D24-S15DC DC CONVERTER 15V 25W |
3,421 |
|
Datasheet | PTK25 (25W) | 8-DIP Module, 7 Leads | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 1.6A | 25 W | 500 V | ITE (Commercial) | Remote On/Off, OCP, OVP | -20°C ~ 71°C | - | - | - | Through Hole | - | Enable, Active High | - | - |
|

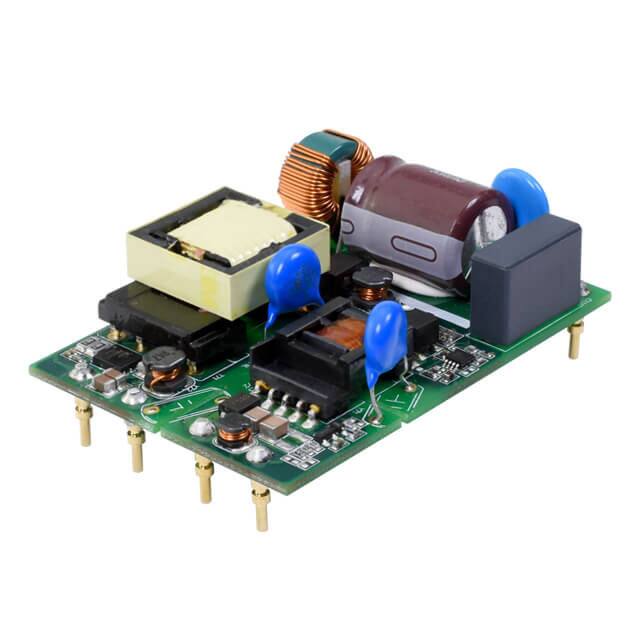

PRF30W-Q48-D524-DDC DC CONVERTER 5V 24V 30W |
1,390 |
|
Datasheet | PRF30W-Q48-D524-D | 6-DIP Module | Tray | Not For New Designs | Isolated Module | 2 | 18V | 75V | 5V | 24V | - | - | 4A, 417mA | 30 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | - | CE | - |
|
|
PQA100-48-S15-ODC-DC ISOLATED, 100W, 36~75 VDC |
2,059 |
|
Datasheet | PQA100-O (100W) | Eighth Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 6.67A | 100 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 93% | - | - | Through Hole | Eighth Brick | - | CE, UKCA | 62368-1 |
