DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGFS6243R3DC DC CONVERTER 3.3V 5.3W |
4,776 |
|
Datasheet | MGFS (6W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 1.6A | 5.3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - |
|
SUW102415CDC DC CONVERTER +/-15V 11W |
1,195 |
|
Datasheet | SUW (10W) | 7-DIP Module | Box | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 350mA, 350mA | 11 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - |
|
SUCW102415CDC DC CONVERTER +/-15V 11W |
2,690 |
|
Datasheet | SUCW (10W) | 7-DIP Module | Box | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 350mA, 350mA | 11 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - |
|
SUCS102405CDC DC CONVERTER 5V |
1,640 |
|
Datasheet | SUCS (10W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 2A | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - |
|
MGFW152412-RDC DC CONVERTER +/-12V 24V 16W |
2,422 |
|
Datasheet | MGFW (15W) | 6-DIP Module | Box | Active | Isolated Module | 2 | 9V | 36V | 12V or 24V | -12V | - | - | 650mA | 16 W | 1.5 kV | ITE (Commercial) | Bridgeable | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | - | - |
.jpg)
|
MGFS402412DC DC CONVERTER 12V 41W |
2,784 |
|
Datasheet | MGFS (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 3.4A | 41 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | - | Enable, Active Low | CE, cURus, DEMKO | - |
|

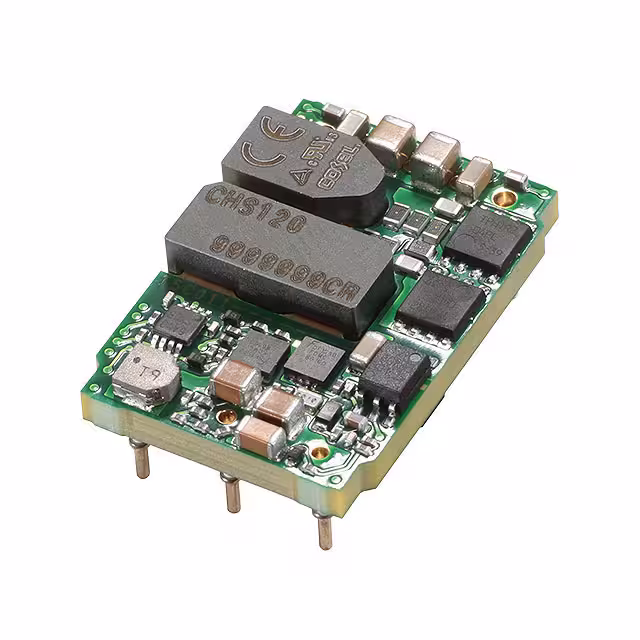

CHS1202412DC DC CONVERTER 12V 120W |
3,155 |
|
Datasheet | CHS (120W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 91.5% | - | - | Through Hole | Sixteenth Brick | - | CE, cURus, TUV | - |
|
MGW1R51212DC DC CONVERTER +/-12V |
2,962 |
|
Datasheet | MGW (1.5W) | 5-SIP Module | Box | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 65mA, 65mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | - | - |
|
MGFS1R52415DC DC CONVERTER 15V 1.5W |
1,602 |
|
Datasheet | MGFS (1.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 100mA | 1.5 W | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - |
.jpg)
|
MGFW1R52412DC DC CONVERTER +/-12V 1.6W |
1,621 |
|
Datasheet | MGFW (1.5W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 65mA, 65mA | 1.6 W | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | - | - |
