DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHS1204805DC DC CONVERTER 5V |
1,812 |
|
Datasheet | CHS (120W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 24A | - | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | - | - | - | - |
|
|
CHS1204812DC DC CONVERTER 12V |
4,334 |
|
Datasheet | CHS (120W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 36V | 76V | 12V | - | - | - | 10A | - | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | - | - | - | - |
|

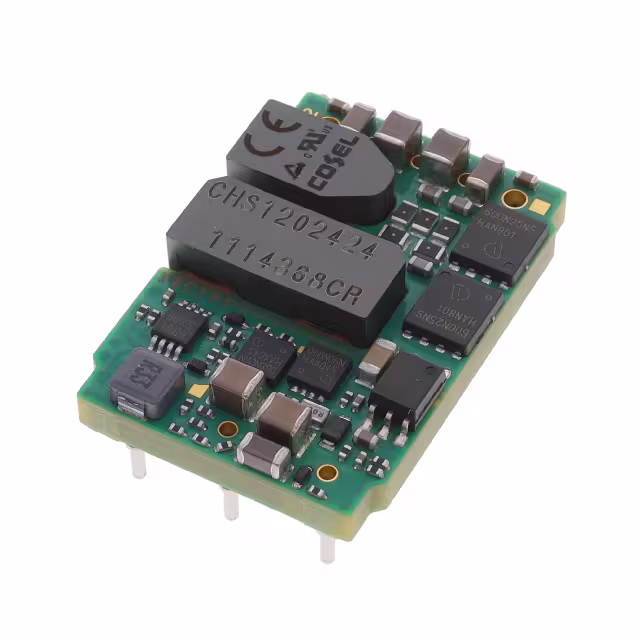

CHS1202424INTERMEDIATE BUS CONVERTER (IBC) |
2,513 |
|
Datasheet | CHS (120W) | Sixteenth Brick | Box | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 4.2A | 101 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 90.5% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CE, cURus, TUV | 60950-1 |
|
CHS1202424-BISOLATED DC/DC CONVERTERS 120W 3 |
3,524 |
|
Datasheet | CHS (120W) | Sixteenth Brick | Box | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 4.2A | 101 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 90.5% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CE, cURus, TUV | 60950-1 |
|
MGFW802415DC DC CONVERTER +/-15V 81W |
4,713 |
|
Datasheet | MGFW (80W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V or 30V | -15V | - | - | 2.7A, 2.7A | 81 W | 1.5 kV | ITE (Commercial) | Bridgeable | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | - | - | CE, cURus, DEMKO | - |
.jpg)
|
MGFS80483R3DC DC CONVERTER 3.3V 59W |
1,896 |
|
Datasheet | MGFS (80W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 18V | 76V | 3.3V | - | - | - | 18A | 59 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | - | - | CE, cURus, DEMKO | - |
|
|
MGFS802405DC DC CONVERTER 5V 80W |
3,830 |
|
Datasheet | MGFS (80W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 16A | 80 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | - | - | CE, cURus, DEMKO | - |
|
|
MGFS80243R3DC DC CONVERTER 3.3V 59W |
1,088 |
|
Datasheet | MGFS (80W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 18A | 59 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | - | - | CE, cURus, DEMKO | - |
|

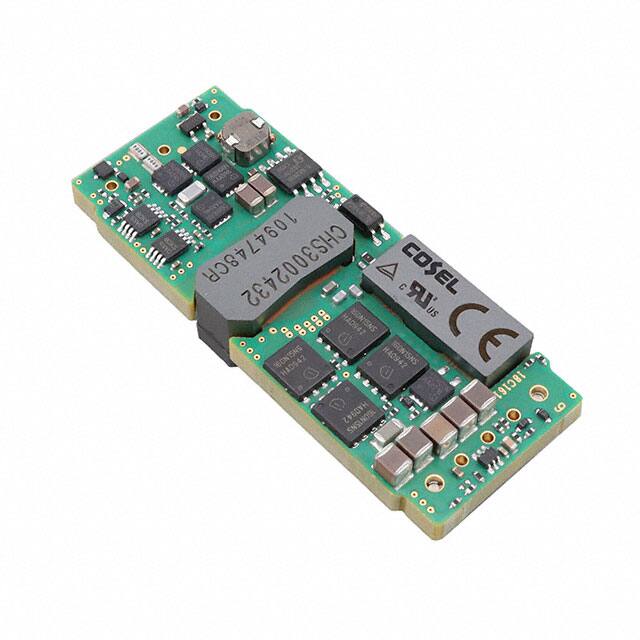

CHS3002432DC DC CONVERTER 32V 253W |
3,281 |
|
Datasheet | CHS (300W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 32V | - | - | - | 7.9A | 253 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | - | Enable, Active Low | CE, cURus, TUV | - |
|
CHS3004812DC DC CONVERTER 12V 300W |
4,673 |
|
Datasheet | CHS (300W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 36V | 76V | 12V | - | - | - | 25A | 300 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 94.5% | - | - | Through Hole | - | - | CE, cURus, TUV | - |
