DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHS7004812H-L8DC DC CONVERTER 12V 702W |
2,631 |
|
Datasheet | CHS (700W) | Quarter Brick | Box | Active | Isolated Module | 1 | 36V | 76V | 12V | - | - | - | 58.5A | 702 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE, cURus, TUV | - |
|
|
CHS7004812H-L7DC DC CONVERTER 12V 702W |
3,082 |
|
Datasheet | CHS (700W) | Quarter Brick | Box | Active | Isolated Module | 1 | 36V | 76V | 12V | - | - | - | 58.5A | 702 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE, cURus, TUV | - |
|
|
CHS7004812H-UDC DC CONVERTER 12V 702W |
2,518 |
|
Datasheet | CHS (700W) | Quarter Brick | Box | Active | Isolated Module | 1 | 36V | 76V | 12V | - | - | - | 58.5A | 702 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE, cURus, TUV | - |
|
|
CHS7004812H-L2DC DC CONVERTER 12V 702W |
2,346 |
|
Datasheet | CHS (700W) | Quarter Brick | Box | Active | Isolated Module | 1 | 36V | 76V | 12V | - | - | - | 58.5A | 702 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE, cURus, TUV | - |
|
|
CHS7004812H-BDC DC CONVERTER 12V 702W |
3,176 |
|
Datasheet | CHS (700W) | Quarter Brick | Box | Active | Isolated Module | 1 | 36V | 76V | 12V | - | - | - | 58.5A | 702 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote Sense | -40°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE, cURus, TUV | - |
|
|
CHS7004812H-RDC DC CONVERTER 12V 702W |
3,844 |
|
Datasheet | CHS (700W) | Quarter Brick | Box | Active | Isolated Module | 1 | 36V | 76V | 12V | - | - | - | 58.5A | 702 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | Quarter Brick | Enable, Active High | CE, cURus, TUV | - |
|
CBS502412DC DC CONVERTER 12V |
2,925 |
|
Datasheet | CBS (50W) | 13-DIP Module | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 4.2A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | - | - | - | - |
|
|
CBS502428DC DC CONVERTER 28V 50W |
3,552 |
|
Datasheet | CBS (50W) | Half Brick | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 1.8A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | Half Brick | - | - | - |
|

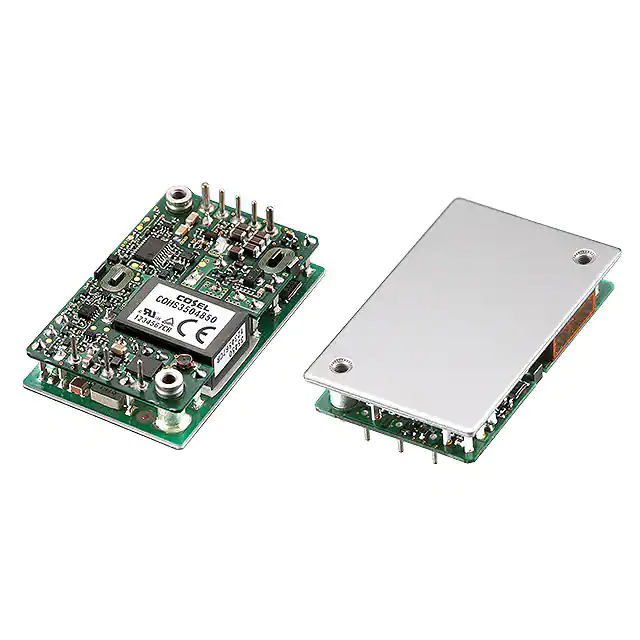

CQHS3504850DC DC CONVERTER 50V |
1,507 |
|
Datasheet | CQHS (350W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 36V | 65V | 50V | - | - | - | 7A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 94% | - | - | Through Hole | - | - | - | - |
|
|
CQHS3504832DC DC CONVERTER 32V |
3,738 |
|
Datasheet | CQHS (350W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 36V | 65V | 32V | - | - | - | 11A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 94% | - | - | Through Hole | - | - | - | - |
