DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZUS154812-ADC DC CONVERTER 12V 16W |
3,132 |
|
Datasheet | ZUS (15W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 1.3A | 16 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 83% | - | - | Through Hole | - | - | - | - |
|
ZUW154812-ADC DC CONVERTER +/-12V 24V 16W |
4,057 |
|
Datasheet | ZUW (15W) | 7-DIP Module | Box | Active | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 650mA, 650mA | 16 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 83% | - | - | Through Hole | - | - | - | - |
|

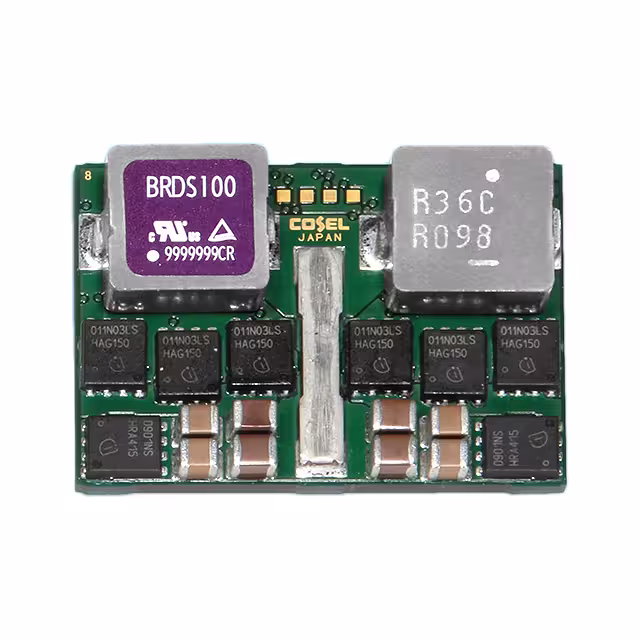

BRDS100-RDC DC CONVERTER 0.7-2V |
4,403 |
|
Datasheet | BRDS | 26-SMD Module | Box | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.7 ~ 2V | - | - | - | 100A | - | - | ITE (Commercial) | Remote On/Off, OCP | -45°C ~ 85°C | 89% | - | - | Surface Mount | - | - | - | - |
|
|
BRDS100DC DC CONVERTER 0.7-2V |
1,540 |
|
Datasheet | BRDS | 26-SMD Module | Box | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.7 ~ 2V | - | - | - | 100A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP | -40°C ~ 85°C | 89% | - | - | Surface Mount | - | - | - | - |
|
CHS1202412-BDC DC CONVERT |
4,165 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CHS1204805-BDC DC CONVERTER 5V 120W |
2,516 |
|
Datasheet | CHS (120W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 24A | 120 W | - | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | - | - | - | - |
|
CES48018-30DC DC CONVERTER 1.8V |
2,954 |
|
Datasheet | CES (100W) | 8-DIP Module | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 1.8V | - | - | - | 30A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | - | - |
|
|
CHS1202405-BINTERMEDIATE BUS CONVERTER (IBC) |
4,264 |
|
- |
CHS (120W) | Sixteenth Brick | Bulk | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 24A | 120 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate | -40°C ~ 85°C | 92.5% | - | - | Through Hole | Sixteenth Brick | - | CE, cURus, TUV, UKCA | 60950-1; 62368-1 |
|
|
CHS120483R3-BINTERMEDIATE BUS CONVERTER (IBC) |
4,133 |
|
- |
CHS (120W) | Sixteenth Brick | Bulk | Active | Isolated Module | 1 | 36V | 76V | 3.3V | - | - | - | 30A | 99 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate | -40°C ~ 85°C | 92.5% | - | - | Through Hole | Sixteenth Brick | - | CE, cURus, TUV, UKCA | 60950-1; 62368-1 |
|
|
CHS1202415-BINTERMEDIATE BUS CONVERTER (IBC) |
2,871 |
|
- |
CHS (120W) | Sixteenth Brick | Bulk | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 8A | 120 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate | -40°C ~ 85°C | 91% | - | - | Through Hole | Sixteenth Brick | - | CE, cURus, TUV, UKCA | 60950-1; 62368-1 |
