DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPE10B36NDC DC CONVERTER 12V 120W |
2,193 |
|
Datasheet | CPE | Eighth Brick | Tray | Active | Isolated Module | 1 | 18V | 72V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | Eighth Brick | Enable, Active Low | CSA, TUV, UL | - |
|
CPT1C24NDC DC CONVERTER 15V 15W |
2,385 |
|
Datasheet | CPT | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 1A | 15 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CSA, TUV, UL | - |
|
CPT15F18NDC DC CONVERTER 3.3V 50W |
4,348 |
|
Datasheet | CPT | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 15A | 50 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CSA, TUV, UL | - |
|
CPE6B18PDC DC CONVERTER 12V 72W |
1,586 |
|
Datasheet | CPE | Eighth Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 6A | 72 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | Eighth Brick | Enable, Active High | CSA, TUV, UL | - |
|
CPT15F18PDC DC CONVERTER 3.3V 50W |
1,887 |
|
Datasheet | CPT | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 15A | 50 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | Sixteenth Brick | Enable, Active High | CSA, TUV, UL | - |
|

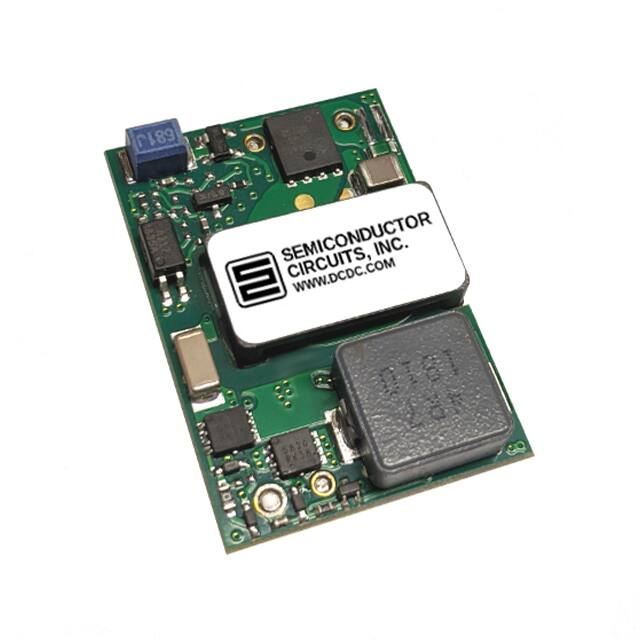

CPT15A24PDC DC CONVERTER 5V 75W |
3,677 |
|
Datasheet | CPT | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 15A | 75 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | Sixteenth Brick | Enable, Active High | CSA, TUV, UL | - |
|
CPE9B36NDC DC CONVERTER 12V 108W |
3,726 |
|
Datasheet | CPE | Eighth Brick | Tray | Active | Isolated Module | 1 | 18V | 72V | 12V | - | - | - | 9A | 108 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | Eighth Brick | Enable, Active Low | CSA, TUV, UL | - |
|
CPT20A48PDC DC CONVERTER 5V 100W |
2,596 |
|
Datasheet | CPT | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 20A | 100 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | Sixteenth Brick | Enable, Active High | CSA, TUV, UL | - |
|
CPE6B18NDC DC CONVERTER 12V 72W |
4,805 |
|
Datasheet | CPE | Eighth Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 6A | 72 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | Eighth Brick | Enable, Active Low | CSA, TUV, UL | - |
|
CPT15F36PDC DC CONVERTER 3.3V 50W |
3,238 |
|
Datasheet | CPT | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 18V | 72V | 3.3V | - | - | - | 15A | 50 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | Sixteenth Brick | Enable, Active High | CSA, TUV, UL | - |
|

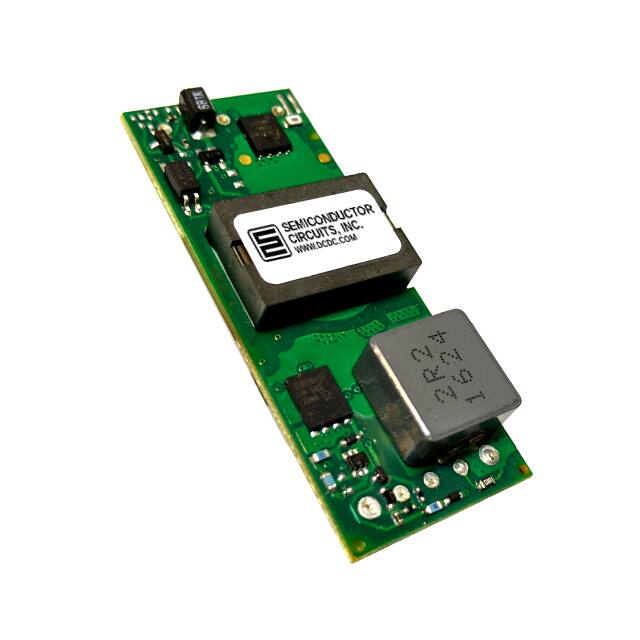

CPE8B18PDC DC CONVERTER 12V 96W |
4,774 |
|
Datasheet | CPE | Eighth Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 8A | 96 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | Eighth Brick | Enable, Active High | CSA, TUV, UL | - |
|
CPT20A48NDC DC CONVERTER 5V 100W |
1,157 |
|
Datasheet | CPT | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 20A | 100 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CSA, TUV, UL | - |
|
CPE8B48PDC DC CONVERTER 12V 96W |
2,463 |
|
Datasheet | CPE | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 8A | 96 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | Eighth Brick | Enable, Active High | CSA, TUV, UL | - |
|
R-78C9.0-1.0/X9DC DC CONVERTER 9V 9W |
3,843 |
|
Datasheet | INNOLINE R-78C-1.0 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 12V | 42V | 9V | - | - | - | 1A | 9 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | - | - | EAC | - |
|
|
R-78C12-1.0/X9DC DC CONVERTER 12V 12W |
2,830 |
|
Datasheet | INNOLINE R-78C-1.0 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 15V | 42V | 12V | - | - | - | 1A | 12 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | - | - | EAC | - |
|
|
AM1LS-1205S-NZDC DC CONVERTER 5V 1W |
1,619 |
|
Datasheet | AM1LS-(J)NZ (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | SMD | - | cURus | - |
|
|
AMSRI1-7805-NZDC DC CONVERTER 5V |
2,606 |
|
Datasheet | AMSRI1-78-NZ | 3-SIP Module | Obsolete | Non-Isolated PoL Module | 1 | 8V | 36V | 5V | - | - | - | 1A | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | cURus | - | |
|
AM1DC-0505SH60ZDC DC CONVERTER 5V 1W |
3,173 |
|
Datasheet | AM1DC-Z (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 7-SIP | - | CE | - |
|
AM1DM-0505SH60-NZDC DC CONVERTER 5V 1W |
3,047 |
|
Datasheet | AM1DM-NZ (1W) | 7-SIP Module, 4 Leads | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 6 kV | Medical | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 7-SIP | - | CE, cURus | - | |
|
AM1G-2405S-NZDC DC CONVERTER 5V 1W |
4,717 |
|
Datasheet | AM1G-Z (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C (With Derating) | 77% | - | - | Through Hole | 8-SIP | - | cURus | - |
