DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MTU2S1205MCDC DC CONVERTER 5V 2W |
1,583 |
|
Datasheet | MTU2 (2W) | 6-SMD Module | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Surface Mount | - | - | - | - |
|
MTU2D0512MC-RDC DC CONVERTER +/-12V 2W |
4,527 |
|
Datasheet | MTU2 (2W) | 6-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Surface Mount | - | - | - | - |
|

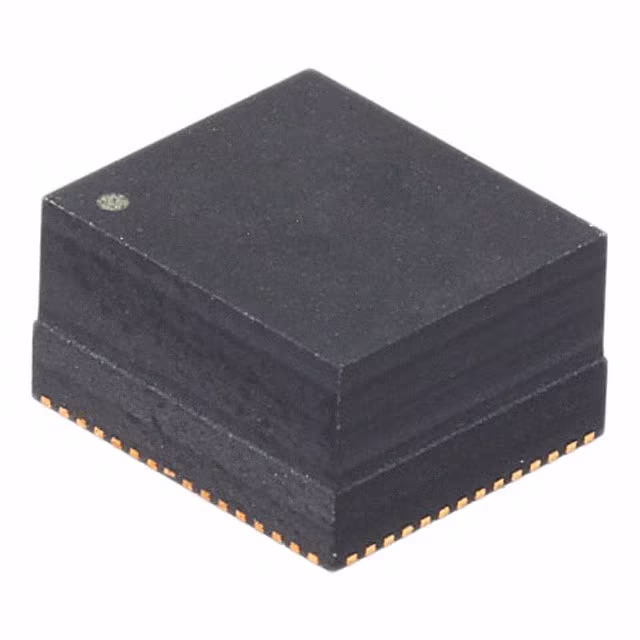

NN31001A-BBDC DC CONVERTER 0.6-5.5V 39W |
4,889 |
|
Datasheet | - | 57-PowerBFQFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 28V | 0.6 ~ 5.5V | - | - | - | 7A | 39 W | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 57-HQFN (7.5x6.5) | - | - | - |
|
|
NN31002A-BBDC DC CONVERTER 0.6-5.5V 22W |
1,864 |
|
Datasheet | - | 57-PowerBFQFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 28V | 0.6 ~ 5.5V | - | - | - | 4A | 22 W | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 57-HQFN (7.5x6.5) | - | - | - |
|
RDQ100110S05DC DC CONVERTER 5V 100W |
1,652 |
|
Datasheet | RDQ (100W) | 8-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 66V | 160V | 5V | - | - | - | 20A | 100 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 90% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
RDQ100110S12DC DC CONVERTER 12V 100W |
1,669 |
|
Datasheet | RDQ (100W) | 8-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 66V | 160V | 12V | - | - | - | 8.4A | 100 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 90% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
UVQ-12/10-D48NB-CDC DC CONVERTER 12V 120W |
2,391 |
|
Datasheet | UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
UVQ-12/10-D48N-CDC DC CONVERTER 12V 120W |
1,947 |
|
Datasheet | UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
UVQ-15/7-D24P-CDC DC CONVERTER 15V 105W |
1,565 |
|
Datasheet | UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 7A | 105 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90.3% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
UVQ-18/5.6-D24PB-CDC DC CONVERTER 18V 101W |
4,981 |
|
Datasheet | UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 18V | - | - | - | 5.6A | 101 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 89.5% | - | - | Through Hole | - | Enable, Active High | - | - |
|
UVQ-24/4.5-D48PB-CDC DC CONVERTER 24V 108W |
3,213 |
|
Datasheet | UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 4.5A | 108 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90.5% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
UVQ-3.3/30-D24NB-CDC DC CONVERTER 3.3V 99W |
4,123 |
|
Datasheet | UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 30A | 99 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
UVQ-3.3/30-D24N-CDC DC CONVERTER 3.3V 99W |
1,975 |
|
Datasheet | UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 30A | 99 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
UVQ-3.3/30-D24PB-CDC DC CONVERTER 3.3V 99W |
4,505 |
|
Datasheet | UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 30A | 99 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
UVQ-3.3/30-D24P-CDC DC CONVERTER 3.3V 99W |
3,604 |
|
Datasheet | UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 30A | 99 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
UVQ-3.3/35-D48N-CDC DC CONVERTER 3.3V 116W |
3,504 |
|
Datasheet | UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 35A | 116 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 89% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
UVQ-3.3/35-D48P-CDC DC CONVERTER 3.3V 116W |
1,708 |
|
Datasheet | UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 35A | 116 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 89% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
UVQ-5/20-D24NB-CDC DC CONVERTER 5V 100W |
1,031 |
|
Datasheet | UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 20A | 100 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 92% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
UVQ-5/20-D24N-CDC DC CONVERTER 5V 100W |
3,028 |
|
Datasheet | UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 20A | 100 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 92% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
UVQ-5/20-D24PB-CDC DC CONVERTER 5V 100W |
3,050 |
|
Datasheet | UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 20A | 100 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 92% | - | - | Through Hole | - | Enable, Active High | - | - |
