DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR1215SADC DC CONVERTER 15V 3W |
4,399 |
|
Datasheet | IR (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 200mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Through Hole | - | - | - | - |
|
IH2415SHDC DC CONVERTER +/-15V 2W |
4,448 |
|
Datasheet | IH (2W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - |
|
|
IH1224SHDC DC CONVERTER +/-24V 2W |
2,610 |
|
Datasheet | IH (2W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 24V | -24V | - | - | 42mA, 42mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - |
|
ITW2415SDC DC CONVERTER +/-15V 1W |
3,954 |
|
Datasheet | ITW (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | 62368-1 |
|
IU4812SADC DC CONVERTER 12V 2W |
3,708 |
|
Datasheet | IU (2W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | 62368-1 |
|
|
IU1203SADC DC CONVERTER 3.3V 2W |
1,968 |
|
Datasheet | IU (2W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 500mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 67% | - | - | Through Hole | - | - | - | 62368-1 |
|
|
IU1215SADC DC CONVERTER 15V 2W |
2,103 |
|
Datasheet | IU (2W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 133mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | 62368-1 |
|
|
IU1212SADC DC CONVERTER 12V 2W |
4,705 |
|
Datasheet | IU (2W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | 62368-1 |
|

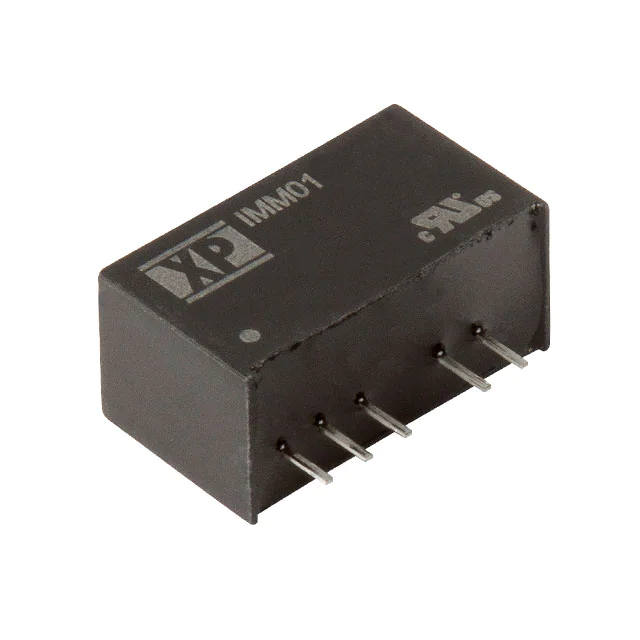

IMM0105S05DC DC CONVERTER 5V 1W |
4,921 |
|
Datasheet | IMM01 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | Medical | Remote On/Off, SCP | -20°C ~ 100°C | 81% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
JCB0324S09DC DC CONVERTER 9V 3W |
1,903 |
|
Datasheet | JCB (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 9V | - | - | - | 333mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 80% | - | - | Through Hole | - | - | - | - |
