DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

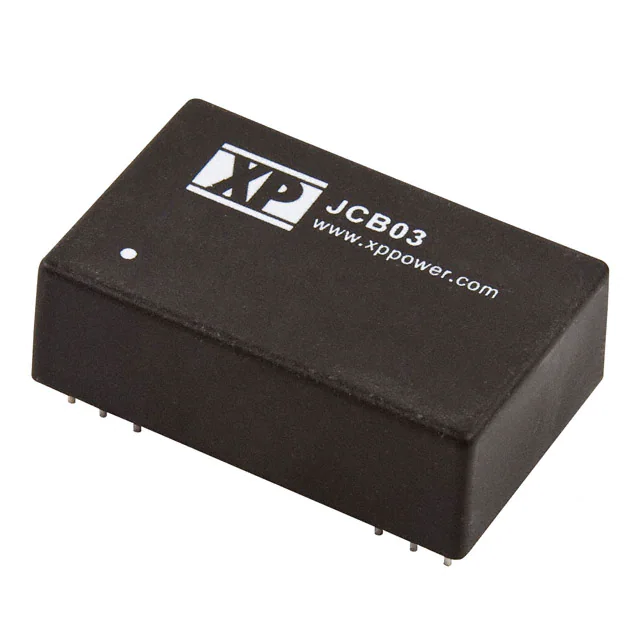

JCB0312S24DC DC CONVERTER 24V 3W |
4,290 |
|
Datasheet | JCB (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 125mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 79% | - | - | Through Hole | - | - | - | - |
|
IZ4805SADC DC CONVERTER 5V 3W |
2,502 |
|
Datasheet | IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 78% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|
IZ2415SADC DC CONVERTER 15V 3W |
1,303 |
|
Datasheet | IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 84% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|
IMM0212D03DC DC CONVERTER +/-3.3V 2W |
4,339 |
|
Datasheet | IMM02 (2W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 3.3V | -3.3V | - | - | 303mA, 303mA | 2 W | 1.5 kV | Medical | Remote On/Off, OCP, OVP, SCP | -20°C ~ 100°C | 79% | - | - | Through Hole | - | Enable, Active High | - | - |
|
IM2415SDC DC CONVERTER +/-15V 2W |
1,522 |
|
Datasheet | IM (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 65mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 82% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|
|
IM2412SDC DC CONVERTER +/-12V 2W |
2,949 |
|
Datasheet | IM (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 85mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 83% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|
JTE0624S12DC DC CONVERTER 12V 6W |
4,425 |
|
Datasheet | JTE (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 100°C | 84% | - | - | Through Hole | - | - | - | 62368-1 |
|
IMM0512S05DC DC CONVERTER 5V 5W |
1,364 |
|
Datasheet | IMM05 (5W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1A | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP | -20°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | - | - | CB, CSA, TUV, UL | - |
|
JCA0212S05DC DC CONVERTER 5V 2W |
4,247 |
|
Datasheet | JCA (2W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 74% | - | - | Through Hole | - | - | - | 62368-1 |
|
ISC0324S24DC DC CONVERTER 24V 3W |
4,732 |
|
Datasheet | ISC03 (3W) | 16-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 125mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 100°C | 80% | - | - | Surface Mount | - | Enable, Active High | - | 62368-1 |
