DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1524S-2WR3DC DC CONVERTER 24V 2W |
180 |
|
Datasheet | F1524S-2WR3 (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 24V | - | - | - | 83mA | 1.9 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | - | - | CB, CE, cURus, UL | 62368-1 |
|
E1212D-1WR3DC DC CONVERTER +/-12V 1W |
175 |
|
Datasheet | E_D-1WR3&F_D-1WR3 (1W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | - | - | - | - |
|
A1209S-2WR3DC DC CONVERTER +/-9V 2W |
168 |
|
Datasheet | A1209S-2WR3 (2W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 9V | -9V | - | - | 111mA, 111mA | 1.9 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | - | - | CB, CE, cURus, UL | 62368-1 |
|
|
F1509S-2WR3DC DC CONVERTER 9V 2W |
163 |
|
Datasheet | F1509S-2WR3 (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 9V | - | - | - | 222mA | 1.9 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | - | - | CB, CE, cURus, UL | 62368-1 |
|

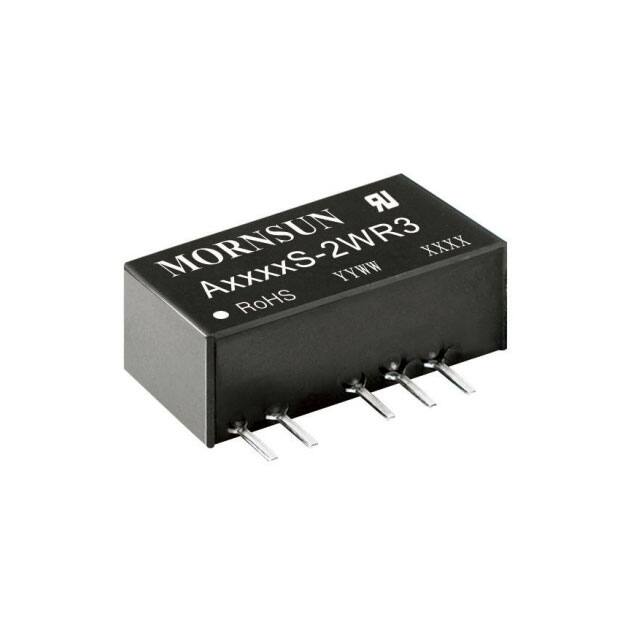

A1207S-2WR3DC DC CONVERTER +/-7.2V 2W |
155 |
|
Datasheet | A1207S-2WR3 (2W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 7.2V | -7.2V | - | - | 139mA, 139mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | - | - | CB, CE, cURus, UL | 62368-1 |
|
A1224S-2WR3DC DC CONVERTER +/-24V 2W |
151 |
|
Datasheet | A1224S-2WR3 (2W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 24V | -24V | - | - | 42mA, 42mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | - | - | CB, CE, cURus, UL | 62368-1 |
|
|
F1512S-2WR3DC DC CONVERTER 12V 2W |
150 |
|
Datasheet | F1512S-2WR3 (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 12V | - | - | - | 167mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | - | - | CB, CE, cURus, UL | 62368-1 |
|
A2415D-2WR3ISOLATED MODULE DC DC CONVERTER |
131 |
|
Datasheet | A_D-2WR3 (2W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | - | - | - | - |
|
|
A2405D-2WR3ISOLATED MODULE DC DC CONVERTER |
126 |
|
Datasheet | A_D-2WR3 (2W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - |
|
F1212N-1WR3DC DC CONVERTER 12V 1W |
142 |
|
Datasheet | F_N-1WR3 (1W) | 7-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 83mA | 996 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | - | - | CE | 62368-1 |
