DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

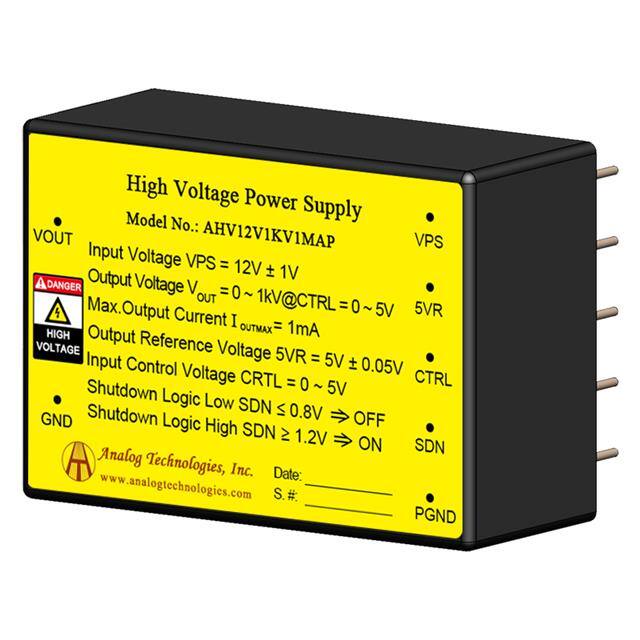

AHV12V1KV1MAPHigh Voltage - Non-Isolated |
2,588 |
|
Datasheet | * | - | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AM01HV12VN1KV1MAPDIP High Voltage - Non-Isolated |
4,325 |
|
Datasheet | - | 9-DIP Module | Tape & Box (TB) | Active | High Voltage - Non-Isolated Module | 1 | 11V | 13V | 0 ~ -1000V | - | - | - | 1mA | - | - | ITE (Commercial) | Adjustable Output | 0°C ~ 50°C | 80% | - | - | Through Hole | - | - | - | - |
|
|
AM01HV12VP3KVR5MAPDIP High Voltage - Non-Isolated |
4,724 |
|
Datasheet | - | 9-DIP Module | Tape & Box (TB) | Active | High Voltage - Non-Isolated Module | 1 | 11V | 13V | 0 ~ 3000V | - | - | - | 500µA | - | - | ITE (Commercial) | Adjustable Output | 0°C ~ 50°C | 80% | - | - | Through Hole | - | - | - | - |
|
|
AM01HV12VP500V4MAPDIP High Voltage - Non-Isolated |
1,646 |
|
Datasheet | - | 9-DIP Module | Tape & Box (TB) | Active | High Voltage - Non-Isolated Module | 1 | 11V | 13V | 0 ~ 500V | - | - | - | 4mA | - | - | ITE (Commercial) | Adjustable Output | 0°C ~ 50°C | 80% | - | - | Through Hole | - | - | - | - |
|
|
AHVR15V3KV3R3MAPI/O Proportional High Voltage |
1,058 |
|
Datasheet | - | 4-DIP Module | Tape & Box (TB) | Active | Isolated Module | 1 | 0V | 15V | 3000V | - | - | - | 3.3mA | - | 3.5 kV | ITE (Commercial) | Adjustable Output | -10°C ~ 70°C | 70% | - | - | Through Hole | 4-DIP Module | - | - | - |
|
|
AM01HV12VP2KV1MAPDIP High Voltage - Non-Isolated |
3,262 |
|
Datasheet | - | 9-DIP Module | Tape & Box (TB) | Active | High Voltage - Non-Isolated Module | 1 | 11V | 13V | 0 ~ 2000V | - | - | - | 1mA | - | - | ITE (Commercial) | Adjustable Output | 0°C ~ 50°C | 80% | - | - | Through Hole | - | - | - | - |
|
|
AM01HV12VP1KV2MAPDIP High Voltage - Non-Isolated |
3,626 |
|
Datasheet | - | 9-DIP Module | Tape & Box (TB) | Active | Non-Isolated PoL Module | 1 | 11V | 13V | 1000V | - | - | - | 2mA | - | - | ITE (Commercial) | Adjustable Output | 0°C ~ 50°C | 80% | - | - | Through Hole | - | - | - | - |
|
|
AHVR15V4KV2R5MAPI/O Proportional High Voltage |
3,352 |
|
Datasheet | - | 4-DIP Module | Tape & Box (TB) | Active | Isolated Module | 1 | 0V | 15V | 4000V | - | - | - | 2.5mA | - | 3.5 kV | ITE (Commercial) | Adjustable Output | -10°C ~ 70°C | 70% | - | - | Through Hole | 4-DIP Module | - | - | - |
|
|
AHVR12V500V20MAPI/O Proportional High Voltage |
4,586 |
|
Datasheet | - | 4-DIP Module | Tape & Box (TB) | Active | Isolated Module | 1 | 0V | 12V | 500V | - | - | - | 20mA | - | 3.5 kV | ITE (Commercial) | Adjustable Output | -10°C ~ 70°C | 70% | - | - | Through Hole | 4-DIP Module | - | - | - |
|
|
ACCHV12V6KV1MAWCapacitor Charging High Voltage |
100 |
|
Datasheet | - | Module | Tape & Box (TB) | Active | High Voltage - Non-Isolated Module | 1 | 11V | 13V | 0 ~ 6000V | - | - | - | 1mA | - | - | ITE (Commercial) | Adjustable Output | -10°C ~ 55°C | 70% | - | - | - | - | - | - | - |
