DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

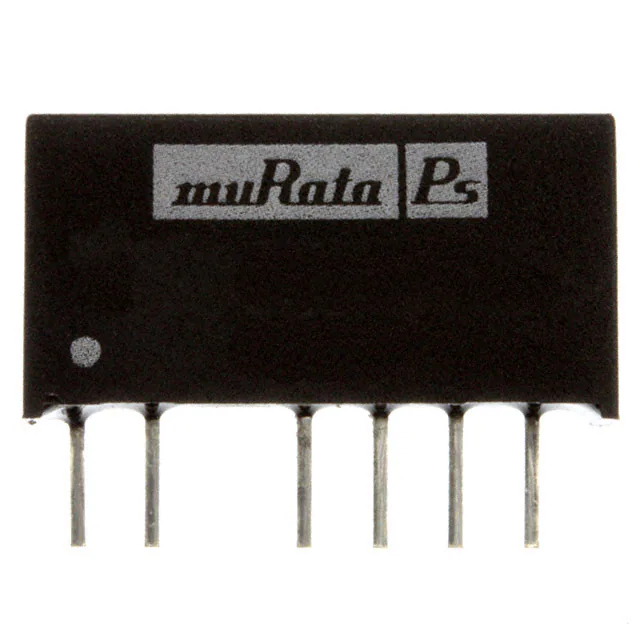

NMD050515SCDC DC CONVERTER 5V 15V 1W |
3,058 |
|
Datasheet | NMD (1W) | 7-SIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 5V | 15V | - | - | 100mA, 34mA | 1 W | 1 kV | ITE (Commercial) | - | 0°C ~ 70°C | 80% | - | - | Through Hole | - | - | - | - |
|
NML1209SCDC DC CONVERTER 9V 2W |
2,495 |
|
Datasheet | NML (2W) | 4-SIP Module | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 222mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - |
|

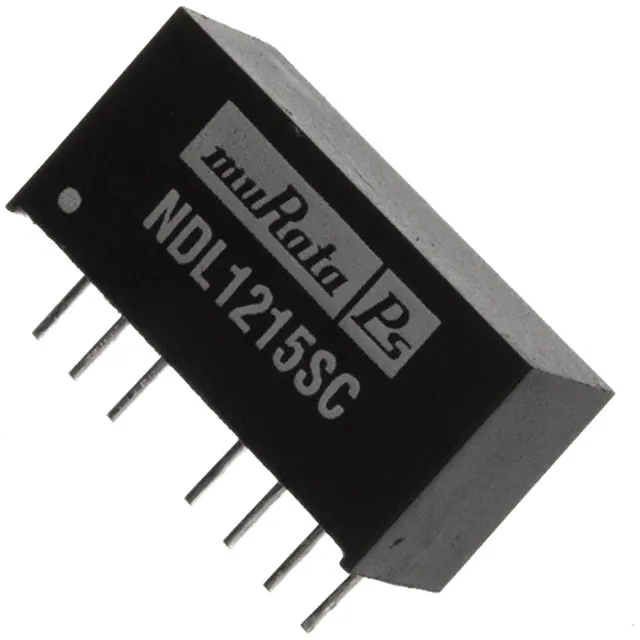

NDL1215SCDC DC CONVERTER 15V 2W |
4,055 |
|
Datasheet | NDL (2W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 134mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | - | - |
|
NMS0512CDC DC CONVERTER +/-12V 2W |
1,920 |
|
Datasheet | NMS (2W) | 24-DIP Module (600 mil, 14 Leads) | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 6 kV | ITE (Commercial) | - | 0°C ~ 70°C | 77% | - | - | Through Hole | - | - | - | - |
|
OKY-T/16-D12P-CDC DC CONVERTER 0.75-5.5V 80W |
4,913 |
|
Datasheet | Okami™ OKY-T/16-D12 | 7-SMD Module, 6 Leads | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 8.3V | 14V | 0.75 ~ 5.5V | - | - | - | 16A | 80 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | - | Enable, Active High | - | - |
|
OKX-T/16-D12P-CDC DC CONVERTER 0.75-5.5V 80W |
2,311 |
|
Datasheet | Okami™ OKX-T/16-D12 | 11-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 8.3V | 14V | 0.75 ~ 5.5V | - | - | - | 16A | 80 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 94% | - | - | Through Hole | - | Enable, Active High | - | - |
|
78SRH-3.3/2-CDC DC CONVERTER 3.3V 7W |
4,445 |
|
Datasheet | 78SR 2 AMP | 3-SIP Module | Box | Obsolete | Linear Regulator Replacement | 1 | 8V | 32V | 3.3V | - | - | - | 2A | 7 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 70°C | 92% | - | - | Through Hole | - | - | - | - |
|
NDTD0505CDC DC CONVERTER +/-5V 3W |
1,811 |
|
Datasheet | NDTD (3W) | 24-DIP Module (600 mil, 8 Leads) | Tube | Obsolete | Isolated Module | 2 | 4.5V | 9V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 72% | - | - | Through Hole | - | - | - | - |
|
NCM6S4815CDC DC CONVERTER 15V 6W |
2,425 |
|
Datasheet | NCM6 (6W) | 23-SMD Module, 7 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 400mA | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 83% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
NDS6D2415ECDC DC CONVERTER +/-15V 6W |
1,012 |
|
Datasheet | NDS6 (6W) | 24-DIP Module, 9 Leads | Tube | Obsolete | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87.5% | - | - | Through Hole | - | - | - | - |
