Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HE1AN-W-DC12V-Y6HHE-PV RELAY, 1FORMA, 12VDC COIL |
2,989 |
|
Datasheet | HE-PV | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 90 A | 800VAC, 60VDC - Max | 72000VA, 5400W | 160 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 1.2 VDC | 30 ms | 10 ms | -50°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AHEA4191HE-A RELAY SERIES 1 FORM A 1 FOR |
2,663 |
|
Datasheet | HE-A | Tray | Active | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 90 A | 800VAC, 60VDC - Max | 44000VA, 5400W | 160 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
AHEA4192HE-A RELAY SERIES 1 FORM A 1 FOR |
2,209 |
|
Datasheet | HE-A | Tray | Active | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 90 A | 800VAC, 60VDC - Max | 44000VA, 5400W | 80 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 1.2 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
KW911692G01RELAY |
4,178 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

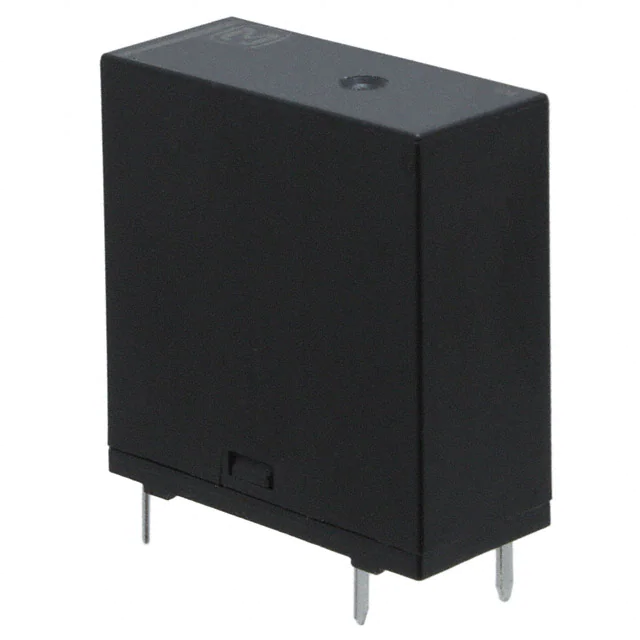

LKT1AF-12VRELAY GEN PURPOSE SPST 5A 12V |
1,149 |
|
Datasheet | LK-T | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1385VA | 20.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
LKT1AF-9VRELAY GEN PURPOSE SPST 5A 9V |
2,837 |
|
Datasheet | LK-T | Tray | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1385VA | 27.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.3 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
LKT1AF-24VRELAY GEN PURPOSE SPST 5A 24V |
3,816 |
|
Datasheet | LK-T | Tray | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1385VA | 10.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
JS1-12V-FRELAY GEN PURPOSE SPDT 10A 12V |
3,021 |
|
Datasheet | JS | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
LKG1AF-12V-16RELAY GEN PURPOSE SPST 16A 12V |
1,986 |
|
Datasheet | LK-G | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 44.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 1.2 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
JVN1AF-12VRELAY GEN PURPOSE SPST 16A 12V |
3,859 |
|
Datasheet | JV-N | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 30VDC - Max | 4432VA, 480W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 0.6 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
