Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
788-508RELAY GEN PURPOSE SPDT 16A 230V |
3,107 |
|
Datasheet | 788 | Box | Active | DIN Rail | 230VAC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 3.5 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 10 ms | 35 ms | -40° ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
788-607RELAY GEN PURPOSE SPDT 16A 115V |
2,602 |
|
Datasheet | 788 | Box | Active | DIN Rail | 115VAC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 8.2 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 7 ms | 3 ms | -40° ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
788-404RELAY GEN PURPOSE SPDT 16A 24V |
1,557 |
|
Datasheet | 788 | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 19 mA | Non Latching | - | Spring Terminal | - | - | - | - | 7 ms | 3 ms | -40° ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
857-358RELAY GEN PURPOSE SPDT 6A 230V |
1,288 |
|
Datasheet | 857 | Box | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 6 A | 250VAC - Max | 1500VA | 3.5 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 15 ms | 25 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|

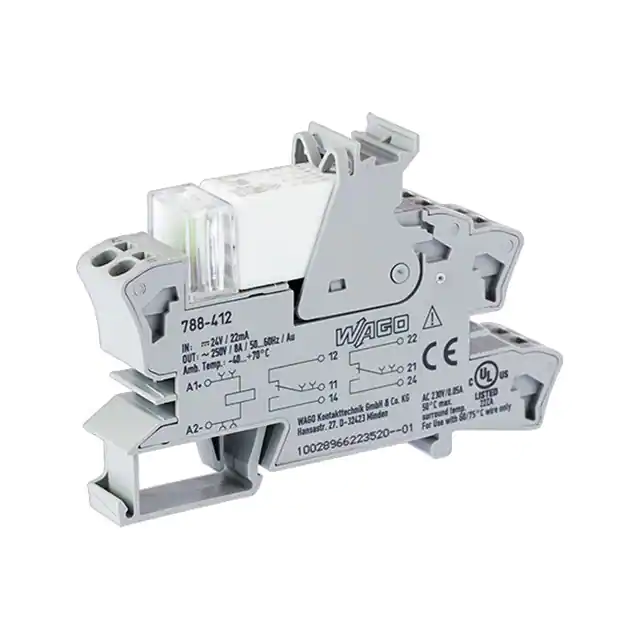

788-412RELAY GEN PURPOSE DPDT 8A 24V |
1,819 |
|
Datasheet | 788 | Box | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 8 A | 250VAC - Max | 2000VA | 17 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 7 ms | 3 ms | -40° ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
788-357RELAY GEN PURPOSE 16A 24V |
2,692 |
|
Datasheet | 788 | Box | Active | DIN Rail | 24VDC | - | 16 A | 250VAC - Max | 4000VA | 17 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 10 ms | 5 ms | -40° ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
858-324RELAY GEN PURPOSE DPDT 12A 24V |
1,751 |
|
Datasheet | 858 | Box | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 12 A | 250VAC - Max | 3000VA | 37.5 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 13 ms | 3 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
788-615RELAY GEN PURPOSE DPDT 8A 115V |
1,238 |
|
Datasheet | 788 | Box | Active | DIN Rail | 115VAC | DPDT (2 Form C) | 8 A | 250VAC - Max | 2000VA | 8.2 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 7 ms | 3 ms | -40° ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
859-358RELAY GEN PURPOSE SPDT 5A 230V |
2,364 |
|
Datasheet | 859 | Box | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 5 A | 250VAC - Max | 1250VA | 3.5 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 15 ms | 25 ms | -40°C ~ 50°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

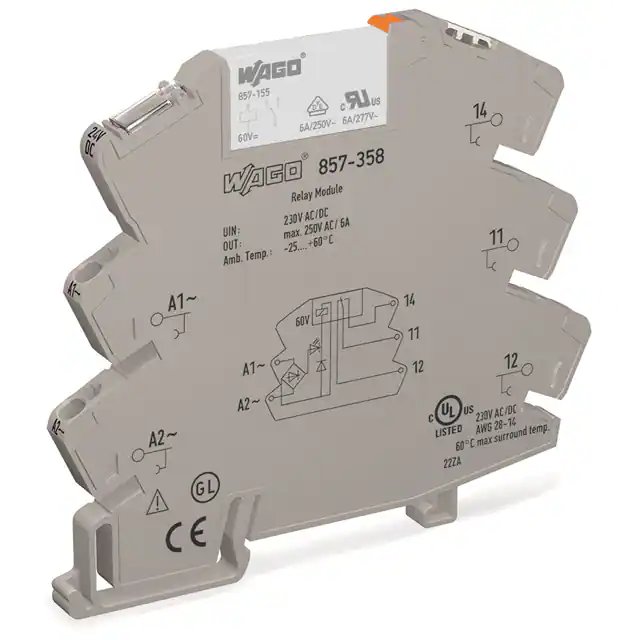

857-358/006-000RELAY GEN PURPOSE SPDT 6A 230V |
3,513 |
|
Datasheet | 857 | Box | Active | DIN Rail | 230VAC | SPDT (1 Form C) | 6 A | 250VAC - Max | 1500VA | 16 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 15 ms | 25 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
